Mindray DP-50T

Probes and Biopsy 12-23
No

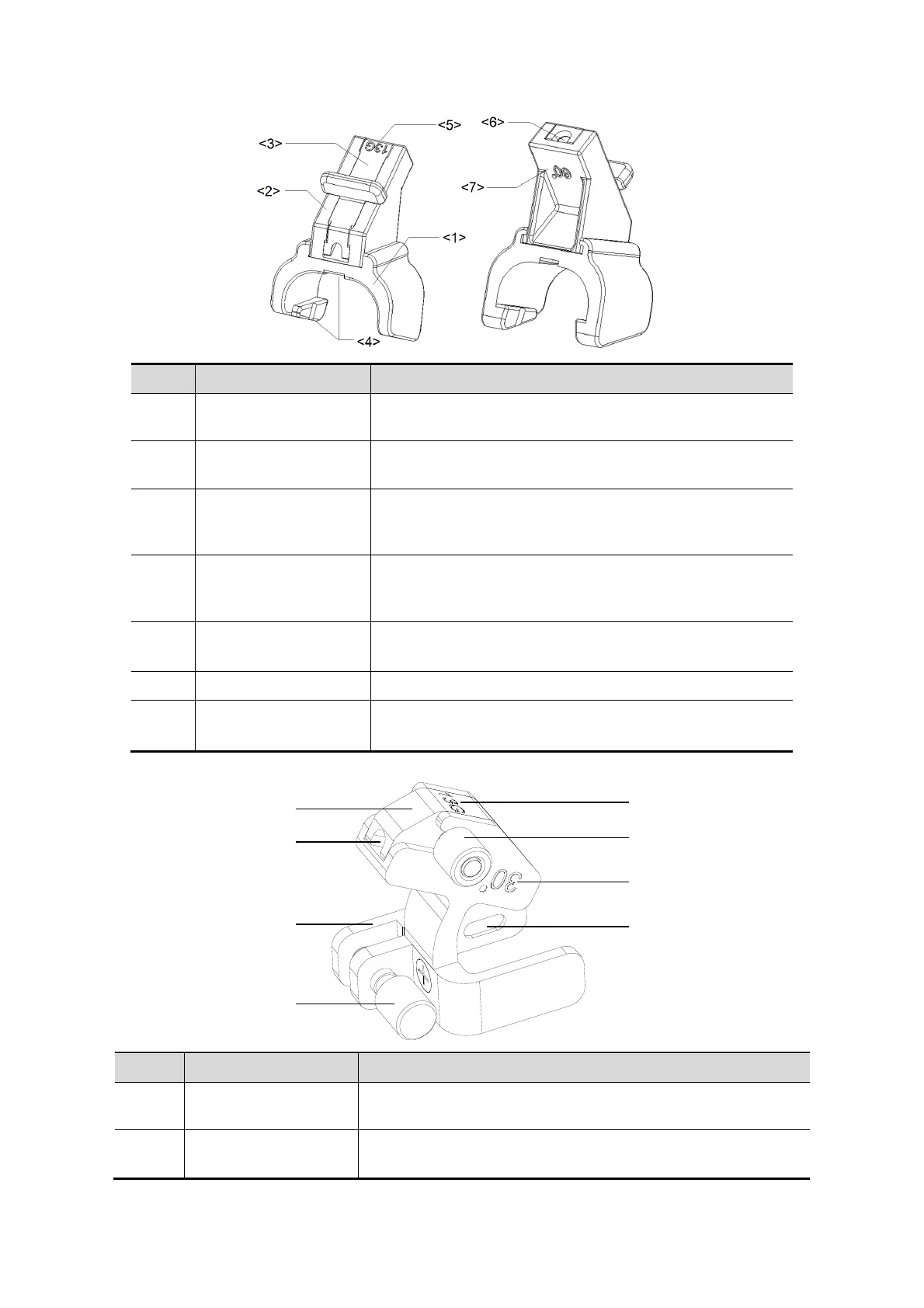

Name
Description
<1>
Support of needle-
guided bracket
Used for installing the needle-guided bracket on the
transducer
<2> Angle block
Used for determining the angle of the biopsy; there are
three specifications of blocks of angle
<3> Guiding block
Used for installing biopsy needle; there are five
specifications of guiding blocks for different biopsy
needles
<4>
Groove and tab of the
needle-guided
bracket
Respectively matched with the tab and groove of the
transducer
<5>
Specification of
guiding block（13G）
Matched with the corresponding biopsy needle（13G）
<6> Needle guide hole Used for installing the biopsy needle
<7>
Specification of angle
block（60°）
Corresponding to the size of the biopsy angle（60°）
 NGB-010 (Metal/needle detachable)
5
1
2
3
4
6
7
8
No.
Name
Description
1 Guiding block
Used for installing biopsy needle; there are five
specifications of guiding blocks for different biopsy needles
2
Guiding hole of the
biopsy needle
Used for installing the biopsy needle
