12-28 Probes and Biopsy
Plastic

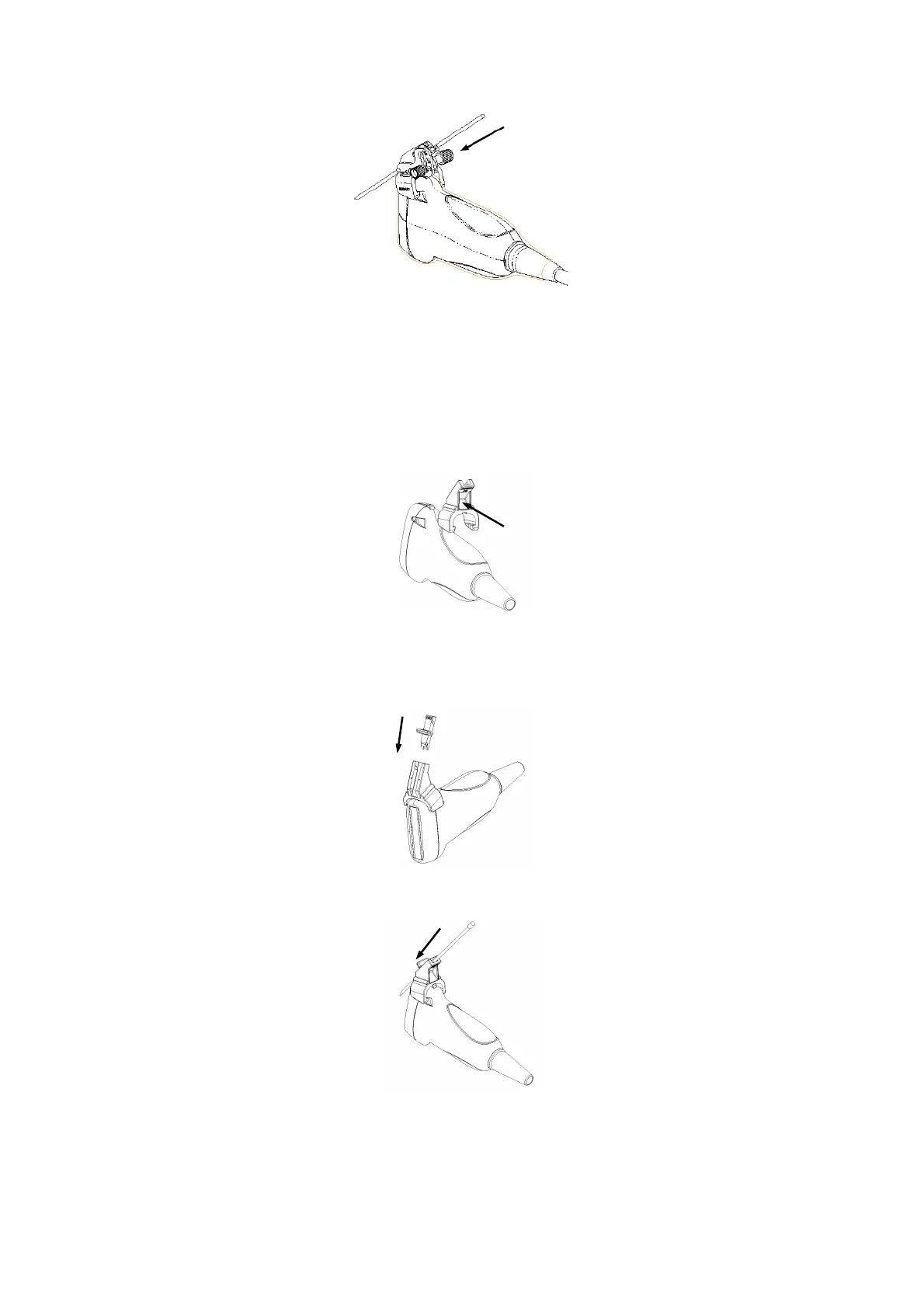

1) Put on the sterile transducer sheath.
2) Hold the transducer by one hand, select proper needle-guided bracket, and hold
it with the other hand. Align the narrow end tab of the needle-guided bracket with
the groove of the transducer, then push the needle-guided bracket forward,
making the tabs and the grooves of the needle-guided bracket to match with the
grooves and tabs of the transducer.
3) Check manually to confirm that the needle-guided bracket is securely installed
on the transducer.
4) Select a proper guiding block and push it into the groove above the angle block,
and clamp it tightly.
5) Insert a biopsy needle with the same specification as that of the guiding block
into the hole of the guiding block.
NGB-010 metal/needle detachable needle-guided bracket
(1) Put on the transducer cover.
(2) Hold the transducer by one hand, select proper needle-guided bracket, and hold it
with the other hand, and align the grooves of the needle-guided bracket with the tabs
