Probes and Biopsy 12-29
of the transducer, then push the needle-guided bracket forward, making the grooves
of the needle-guided bracket to match with the tabs of the transducer. Set the needle-
guided bracket at the desired position, turn tightly the knob of fixing needle-guided
bracket to fix the needle-guided bracket.
(3) Check manually to confirm the needle-guided bracket is securely installed on the
transducer.
(4) Select a proper guiding block and push it into the groove above the support of
needle-guided bracket, then turn tightly the knob of fixing the guiding block to fix the
guiding block on the support of needle-guided bracket.
(5) Insert a biopsy needle with the same specification as that of the guiding block into the
hole of the guiding block.

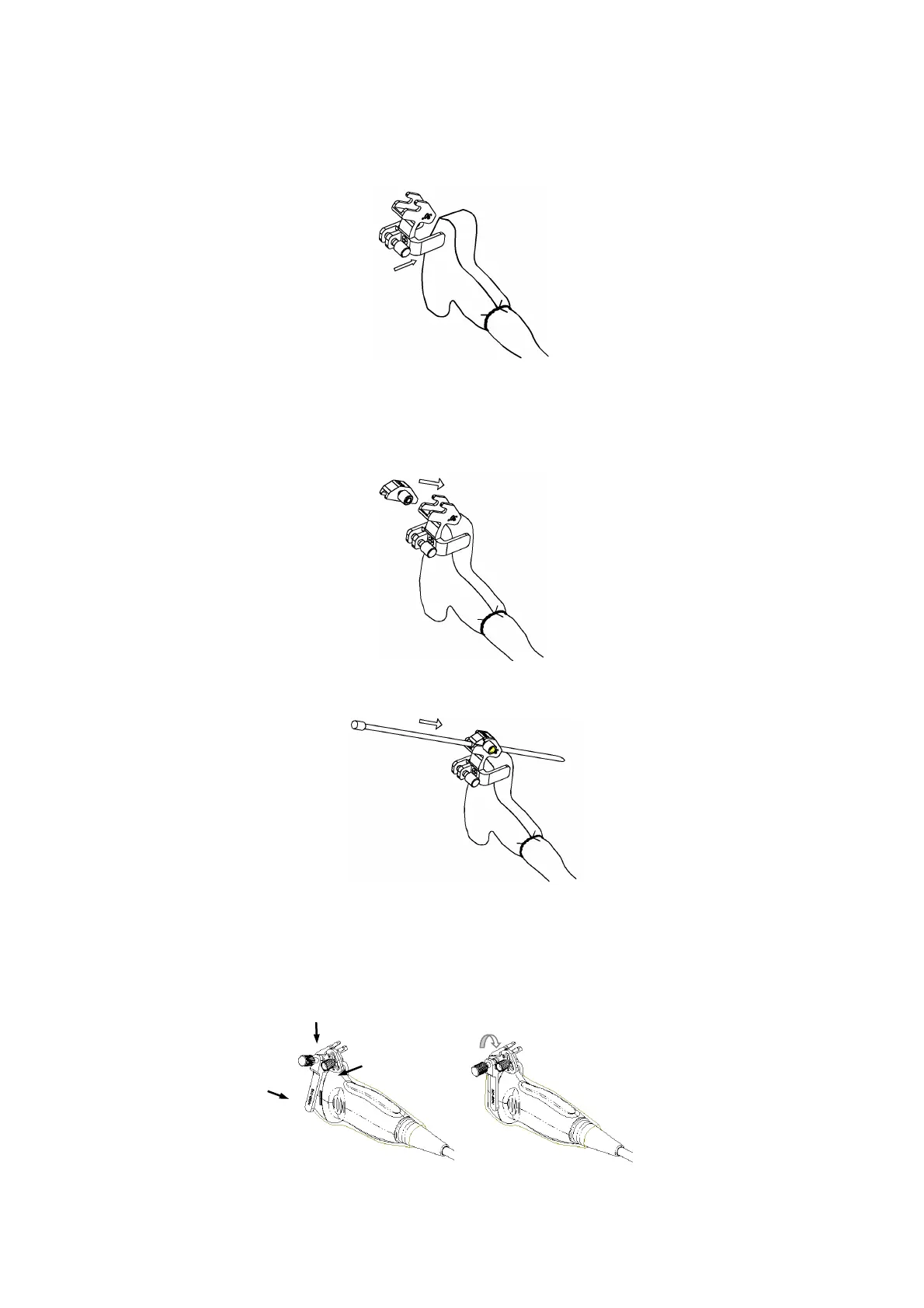

NGB-016
1. Put on the sterile transducer sheath.
2. Select a proper needle-guided bracket, and match the groove with the tab of the
transducer. Mount the bracket onto the transducer.
