16 Probes and Biopsy
Operator’s Manual 16 - 29

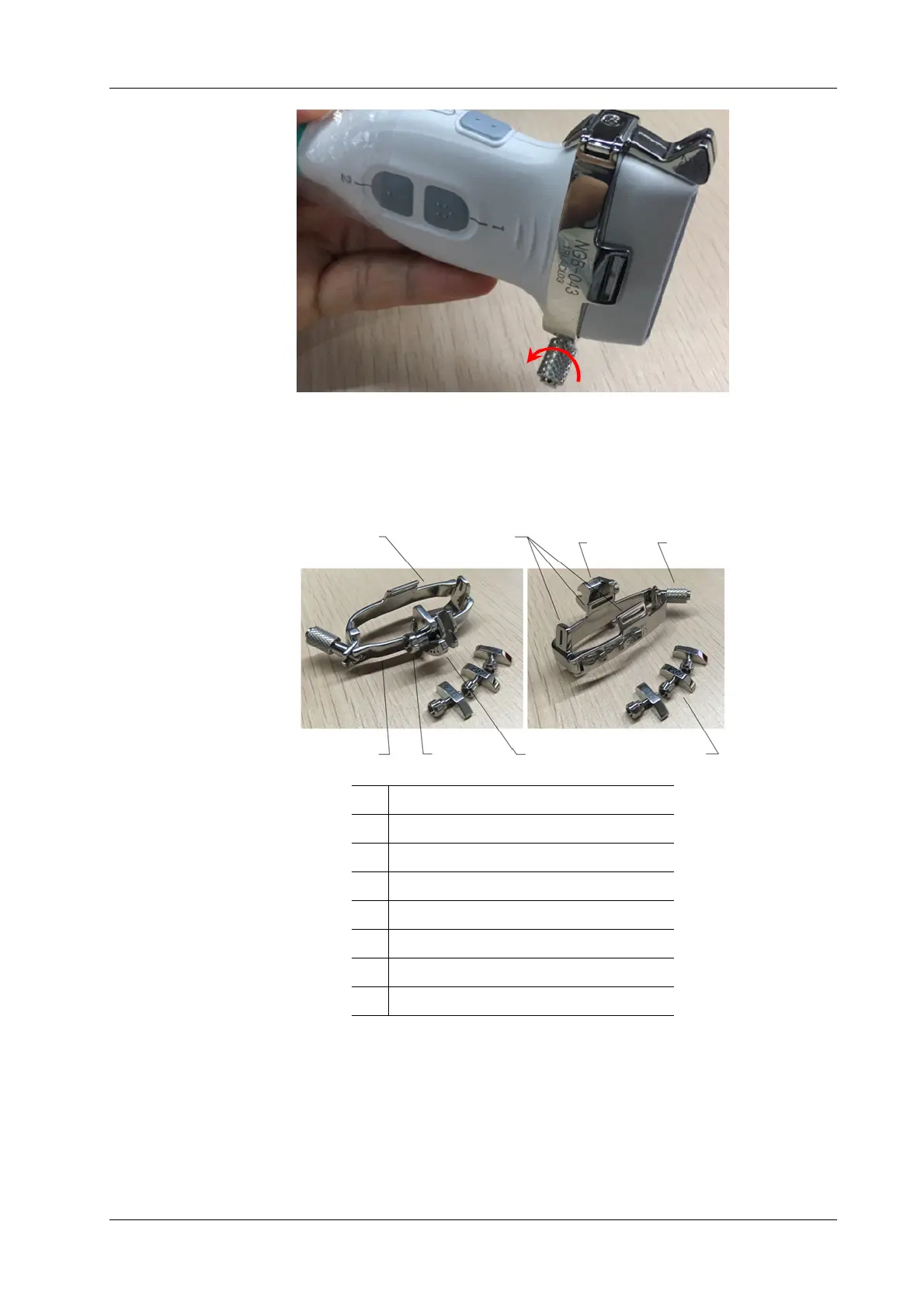

a. Rotate the locking nut in the direction of the arrow shown on the figure to separate the
bracket from the probe.
b. Hold the probe and take out the bracket.
NGB-044 Metal-needle detachable needle-guided bracket
Perform the following procedure:
1. Install the needle-guided bracket:
1Right clamp
2Groove
3 Guiding block fixing frame
4 Locking nut of left and right clamps
5 Guiding blocks
6 Depth shift sign
7 Depth pinch nut
8 Left clamp
