Mindray Resona 7T Service Manual

Structure and Assembly/Disassembly 9-27

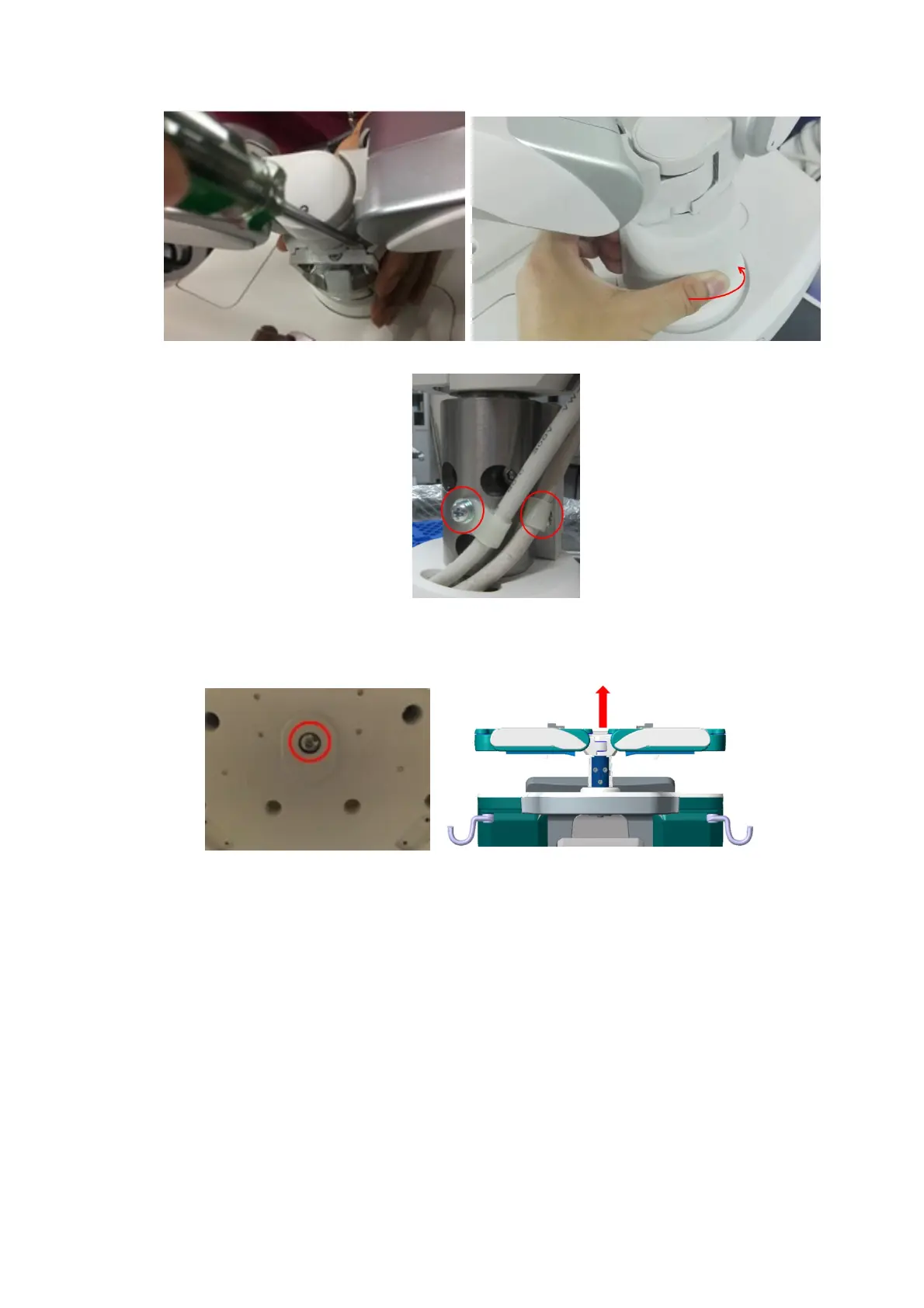

6. Remove the M4x12 screws (2 pcs) shown in the figure.
7. Use an M6 hexagon wrench to remove the M10x25 hexagon round head screw (1 pcs) and
external teeth lock washer 10 from bottom of the side control panel. Pull the support arm
assembly upwards along the direction shown in the figure to take it out.
