Mindray Resona 7T Service Manual

9-74 Structure and Assembly/Disassembly

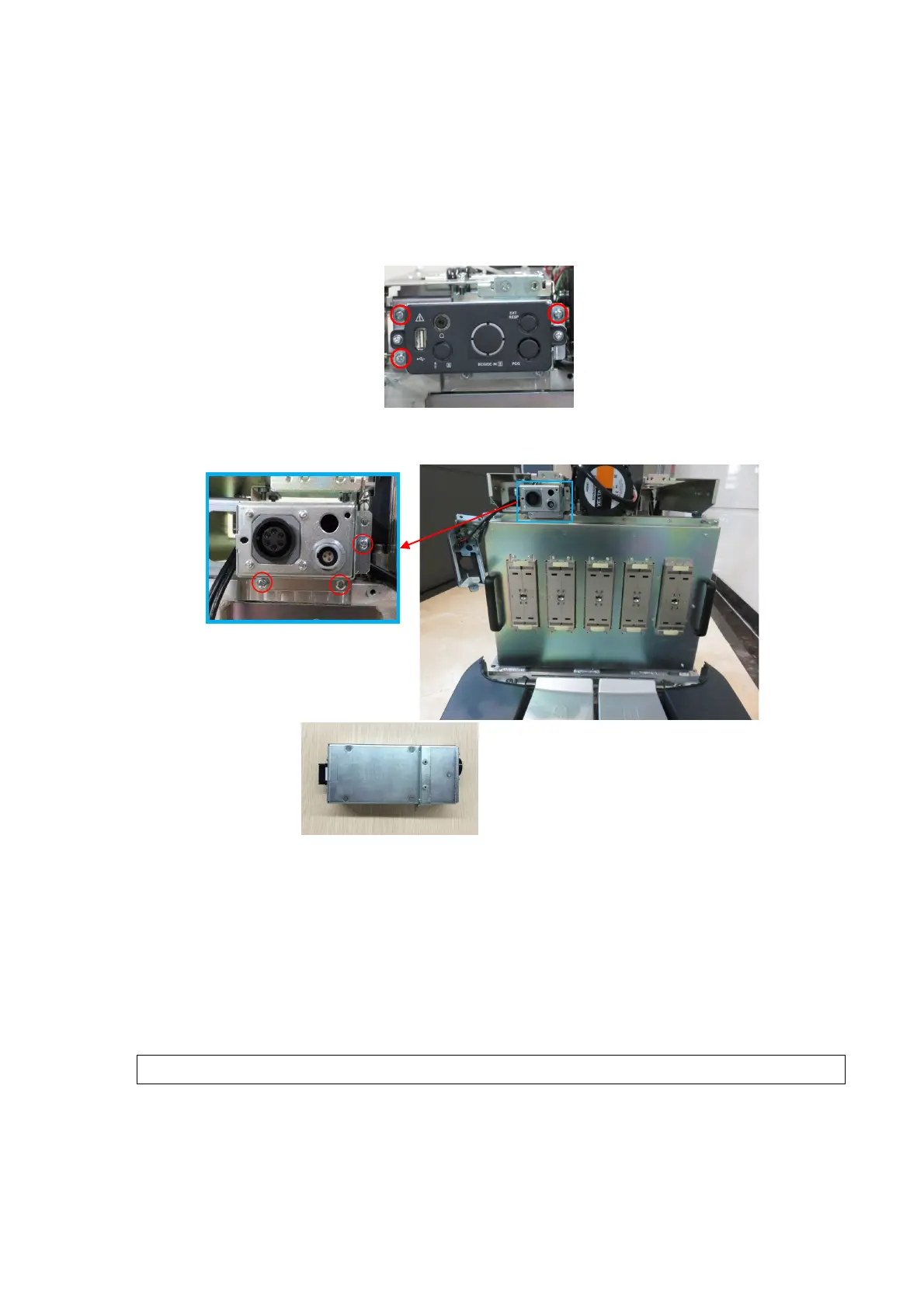

9.3.35 ECG Assembly
The disassembly tool: cross-headed screwdriver (M3, M4).
1. See 9.3.16, 9.3.17, 9.3.18 and 9.3.19 for details.
2. Unscrew 3 M4 X 12 screws from the output board assembly with cross-headed screwdriver
(M3, M4).
3. Unscrew 3 M4 X 12 cross panhead screws with screwdriver (M3, M4) to remove ECG
assembly.
9.3.36 Signal Cable of ECG Module
The disassembly tool: cross-headed screwdriver (M3, M4).
1. See Chapter 9.3.34 step 1 to 5 for details.
2. See Chapter 9.3.35 for details.
3. Unplug the ECG module signal connector from the right side of the device.
4. Unscrew 2 M3 X10 cross panhead screws with the screwdriver (M3, M4) to remove the signal
cable of ECG module.
Note:
Put the magnetic ring into the bracket of the main unit when installing in reverse.
ECG assembly
