Mindray Resona 7T Service Manual

9-58 Structure and Assembly/Disassembly

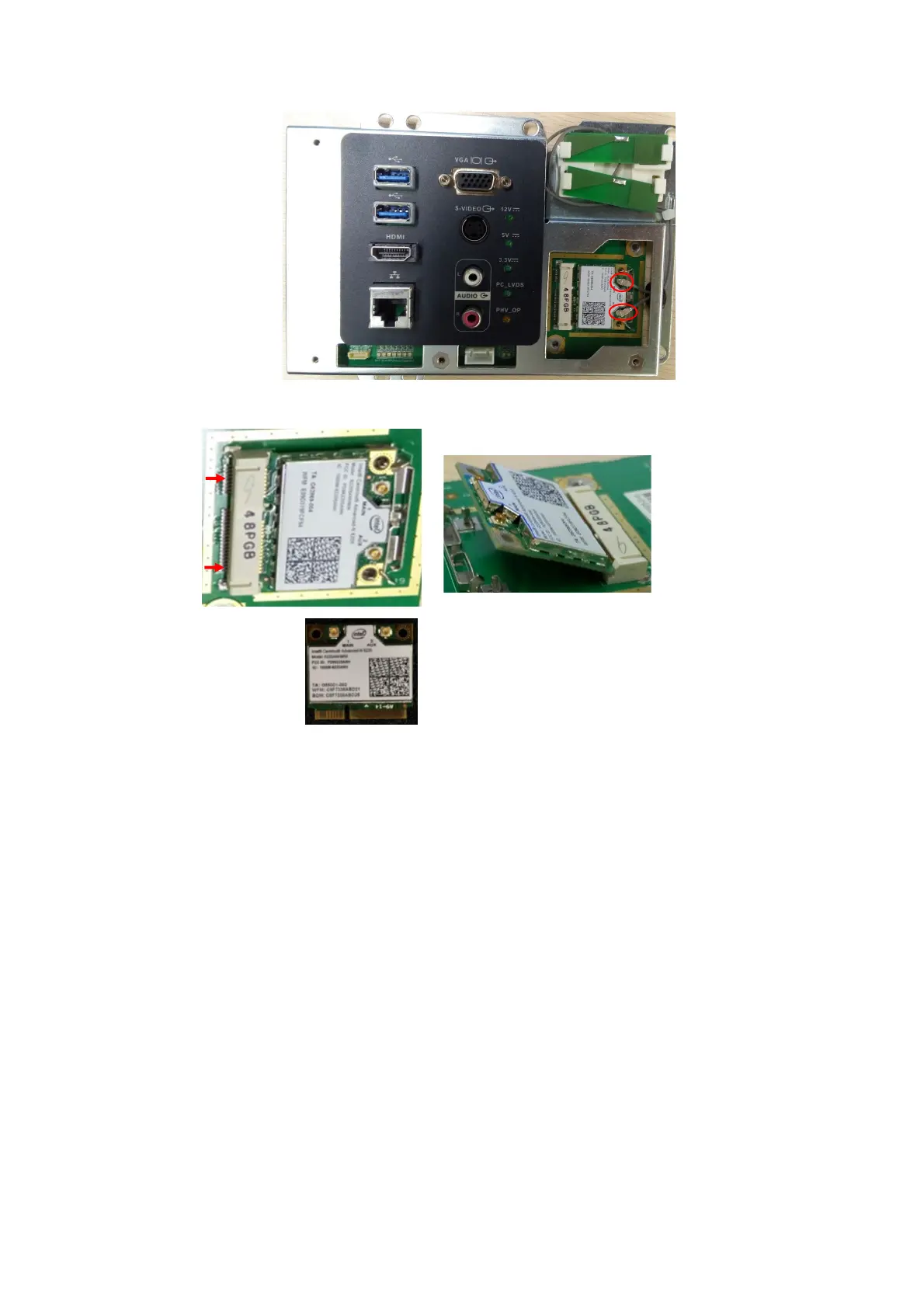

4. Open the clip of the wireless net adaptor. The adaptor goes upwards 45°. Then remove the
adaptor.
9.3.27 Antenna and Cable Assembly
1. See Chapter 9.3.26 for details.
2. Unscrew two small panhead screws (M3*8) from wireless network adaptor cover to remove it.
3. Push the antenna cable board out towards the arrow’s direction. Cut the tie cable
CHS-3X100mm with diagonal cutting pliers. Unscrew 2 M3 X8 cross panhead screws with the
screwdriver (M3, M4) to remove the bracket of the antenna and cable.
W
ireless adaptor
