Structure and Assembly/Disassembly 9-33

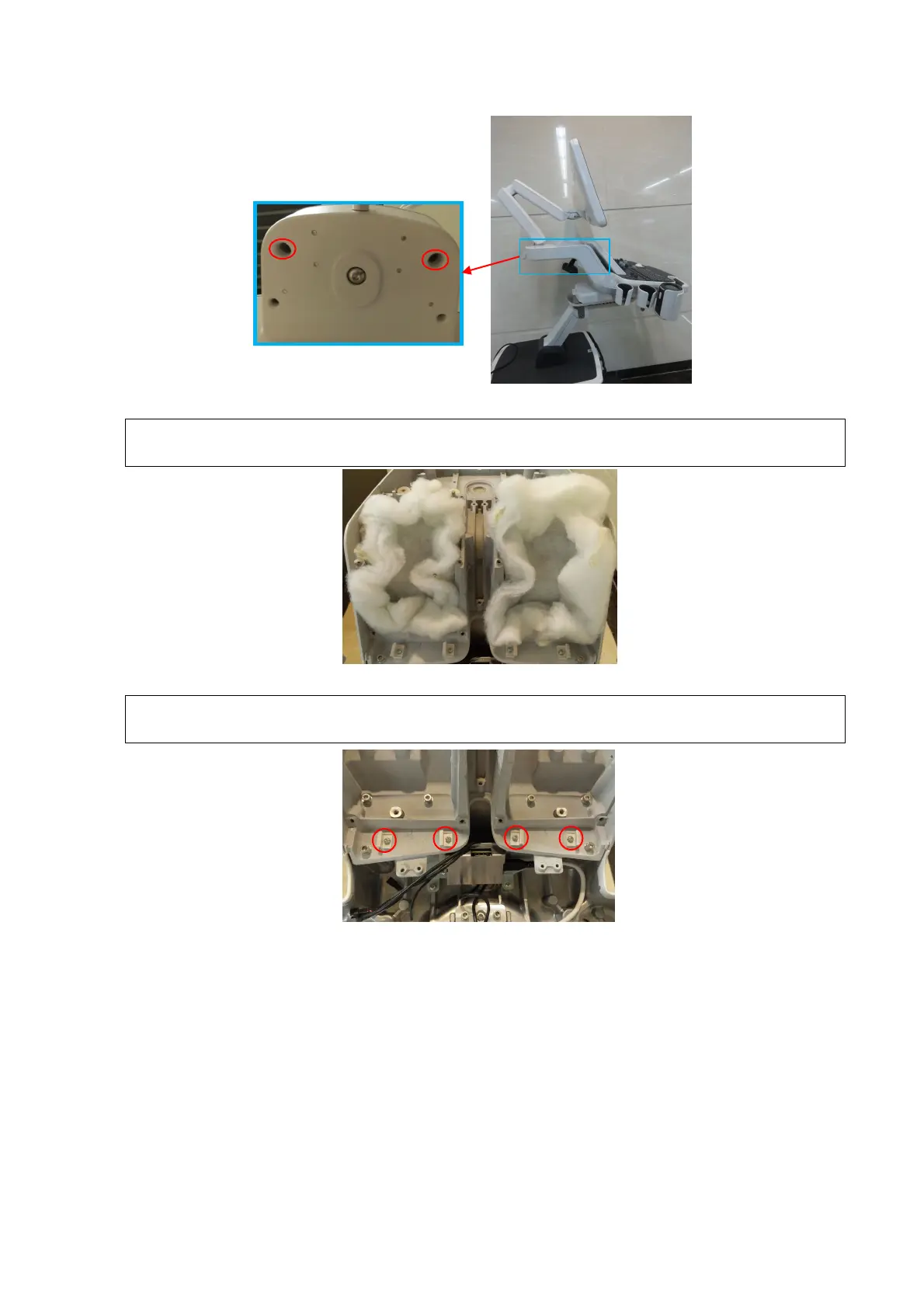

6. Remove the absorbing cotton insulation.
Do not tilt or block the screw holes when installing the absorbing cotton insulation
anticlockwise.
7. Unscrew 4 M4 X 12 cross panhead screws with screwdriver (M3, M4) to remove 4 clips.
Note:
Be aware of the orientation of the clip. Align the locating pin of the clip with the locating
hole of the control panel base when performing the installation.
8. Unscrew 6 M5 X 16 round inner head screw (with the pad) by M5 spanner to remove the base
of the side control panel upwards.
To Next Page
