Mindray Resona 7T Service Manual

Structure and Assembly/Disassembly 9-63

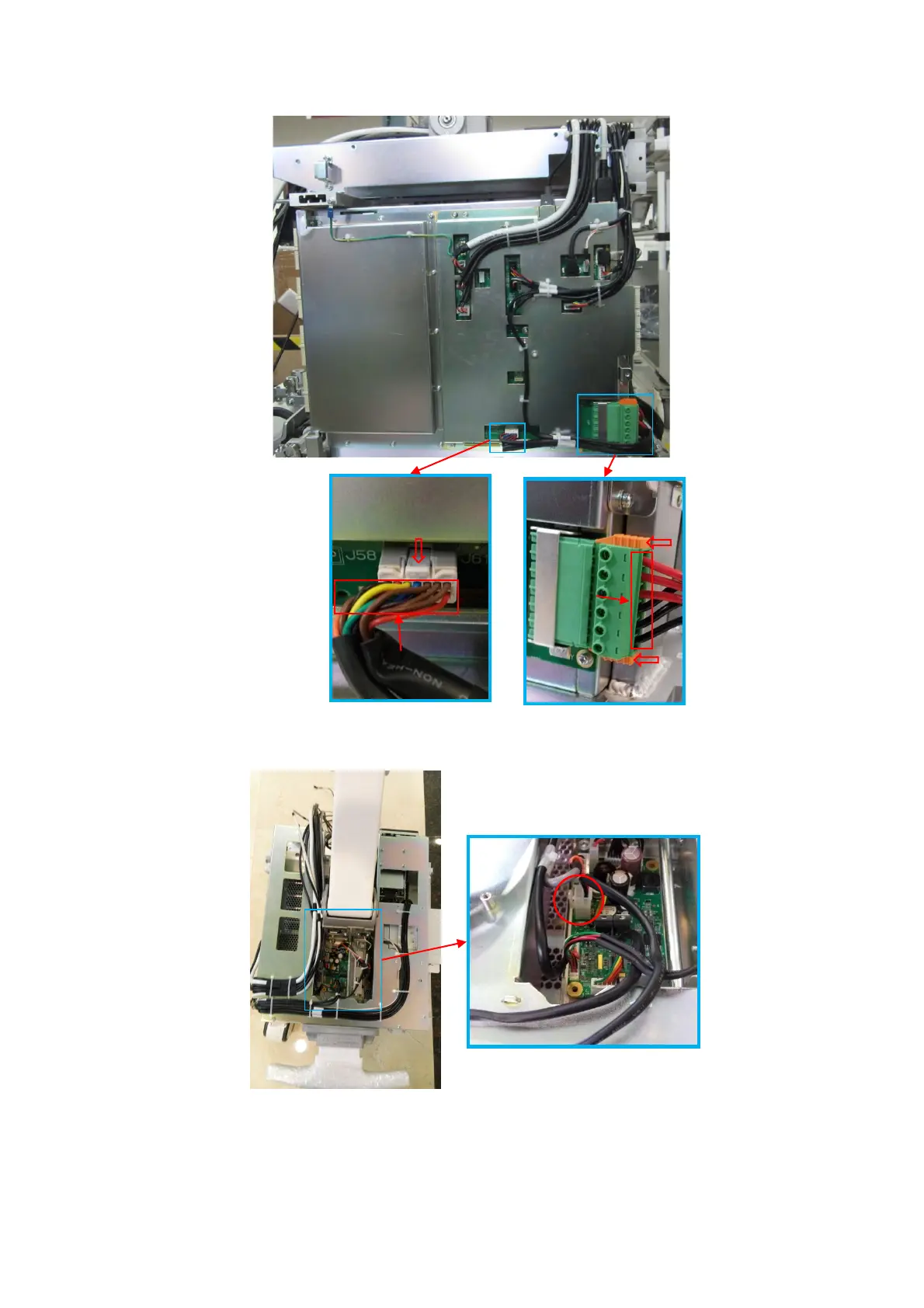

5. Pull AC_DC 24V power output cable out of the stand column assembly.
6. Unscrew the M4 cross panhead screw and M4 X12 cross panhead screw with the screwdriver
(M3, M4), cut off CHS-4X150 cable tie fastening protective shield with diagonal cutting pliers,
then unscrew 4 M4 X10 inner hex head screws (with elastic washers) with inner hexagonal
wrench (M4) to take off protective shield and pull the electronics assembly on the base.
AC-DC 24V power
control cable
12V input
cable
Figure 1
Figure 2
