9-90 Structure and Assembly/Disassembly

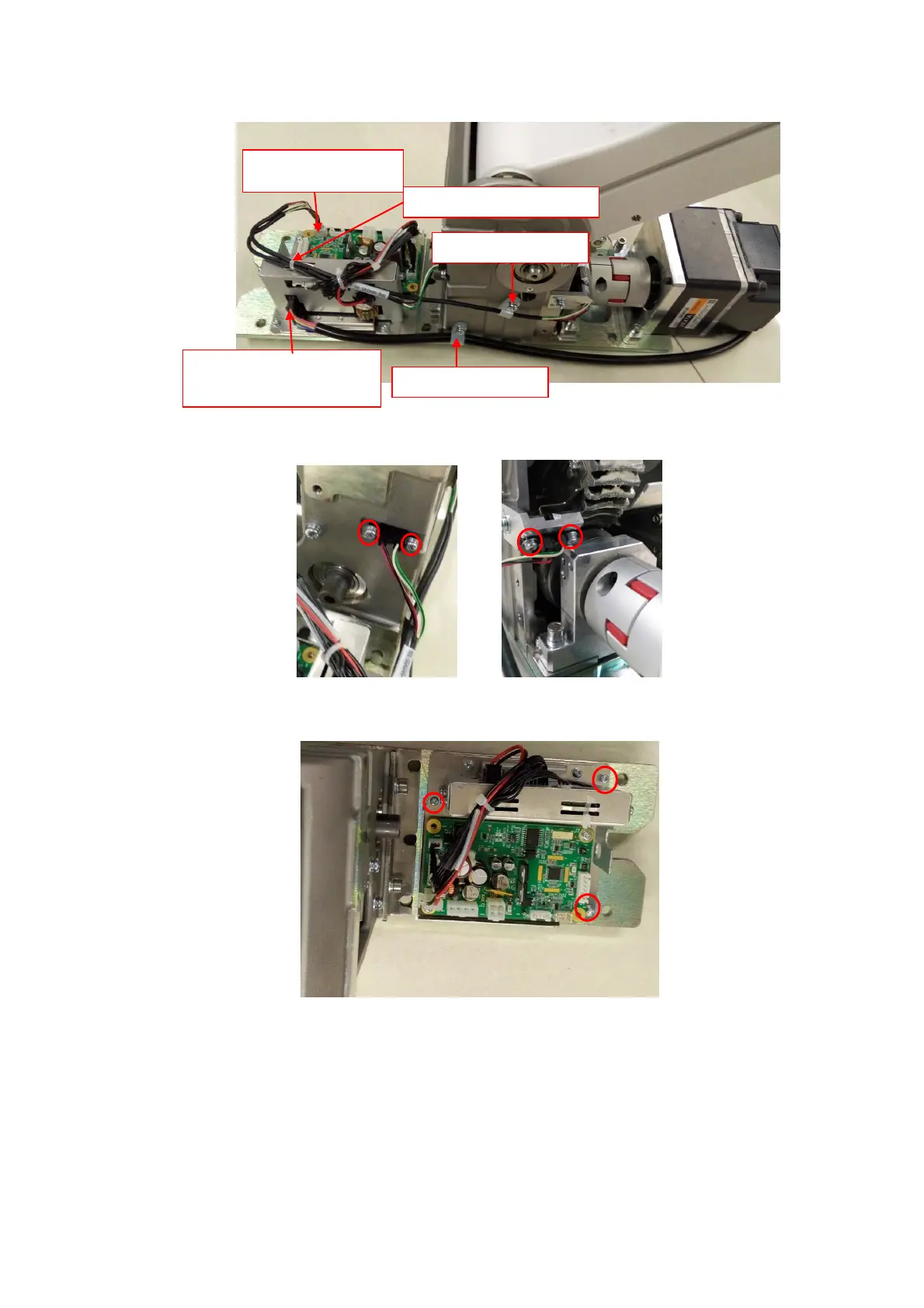

7. Unscrew 4 M3 X 8 cross panhead screws from the anti-collision sensor with the screwdriver
(M3, M4) to remove the signal cable.
8. Unscrew 3 M3 X 8 cross panhead screws with screwdriver (M3, M4) to remove lift control
PCBA assembly.
9. Use M5 inner hexagon spanner to unfasten 2 screws on the coupling.
F
ixing knob UC-1.5
P
ower cable of brushless
DC motor
Fixing knob UC-0.5
Position signal cable
C
able tie CHS-3X100mm
