Mindray Resona I9W - Power Supply Panel

2-12 System Overview
No. Symbol Function
<4>
S-Video
S-Video signal output
<5> HDMI High definition multimedia interface
<6> Network port
<7> / 12 V indicator
<8> / 24 V indicator
<9> / 5V_STB indicator
<10> / DBG_FLAG indicator

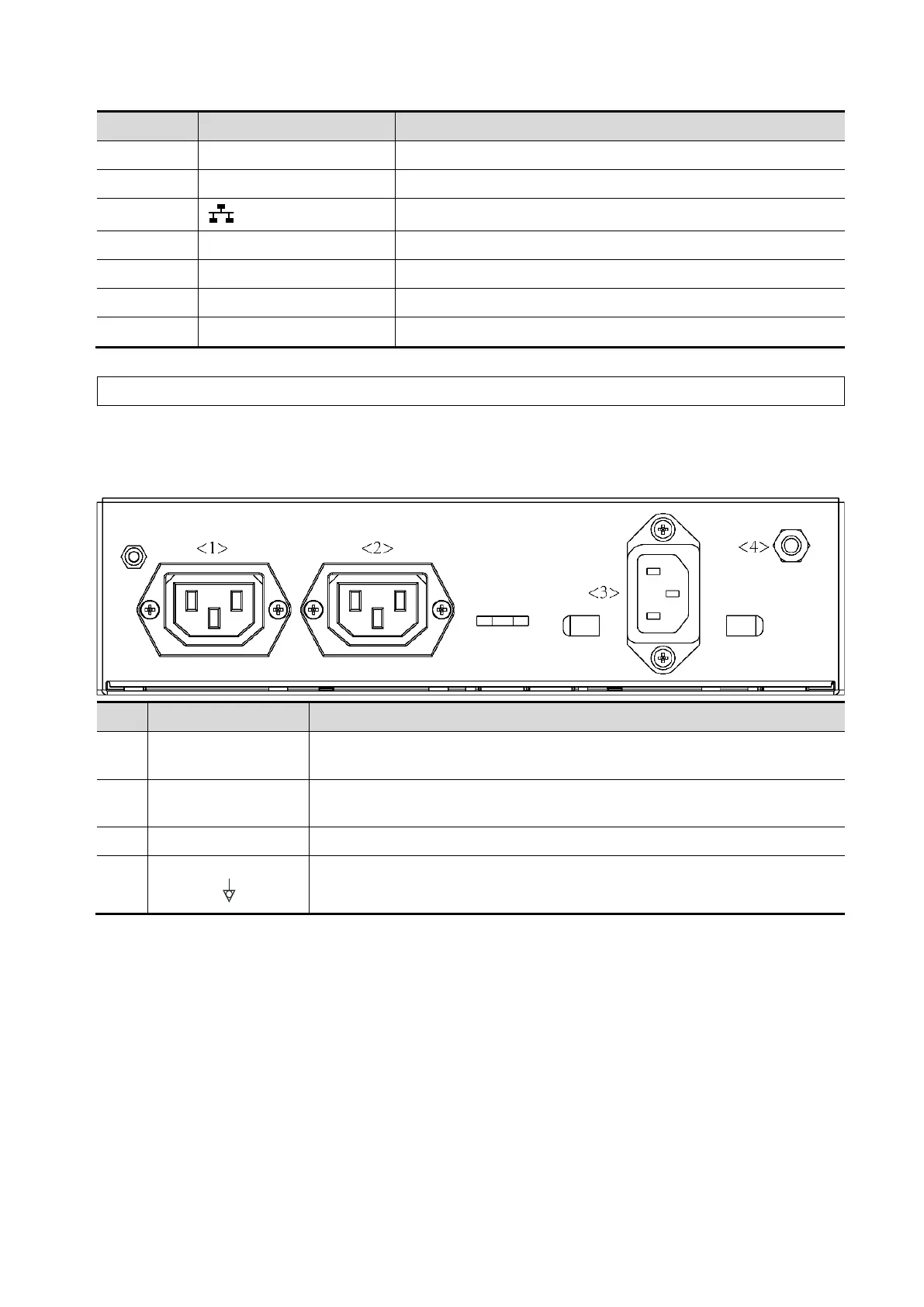

2.7 Power Supply Panel
No.
Name
Function
<1>
Alternative current
auxiliary output 1
Supply power for optional peripheral devices.
<2>
Alternative current
auxiliary output 2
Supply power for optional peripheral devices.
<3> AC Power inlet AC power inlet
<4>
Equipotential
terminal
Used for equipotential connection, that balances the protective earth
potentials between the system and other electrical equipment.
NOTE:
S-VIDEO port performs better in analog video print.
