Mindray Resona I9W - Basic Screen & Operation

System Preparation 3-15
3.7 Basic Screen & Operation
3.7.1 Monitor Display

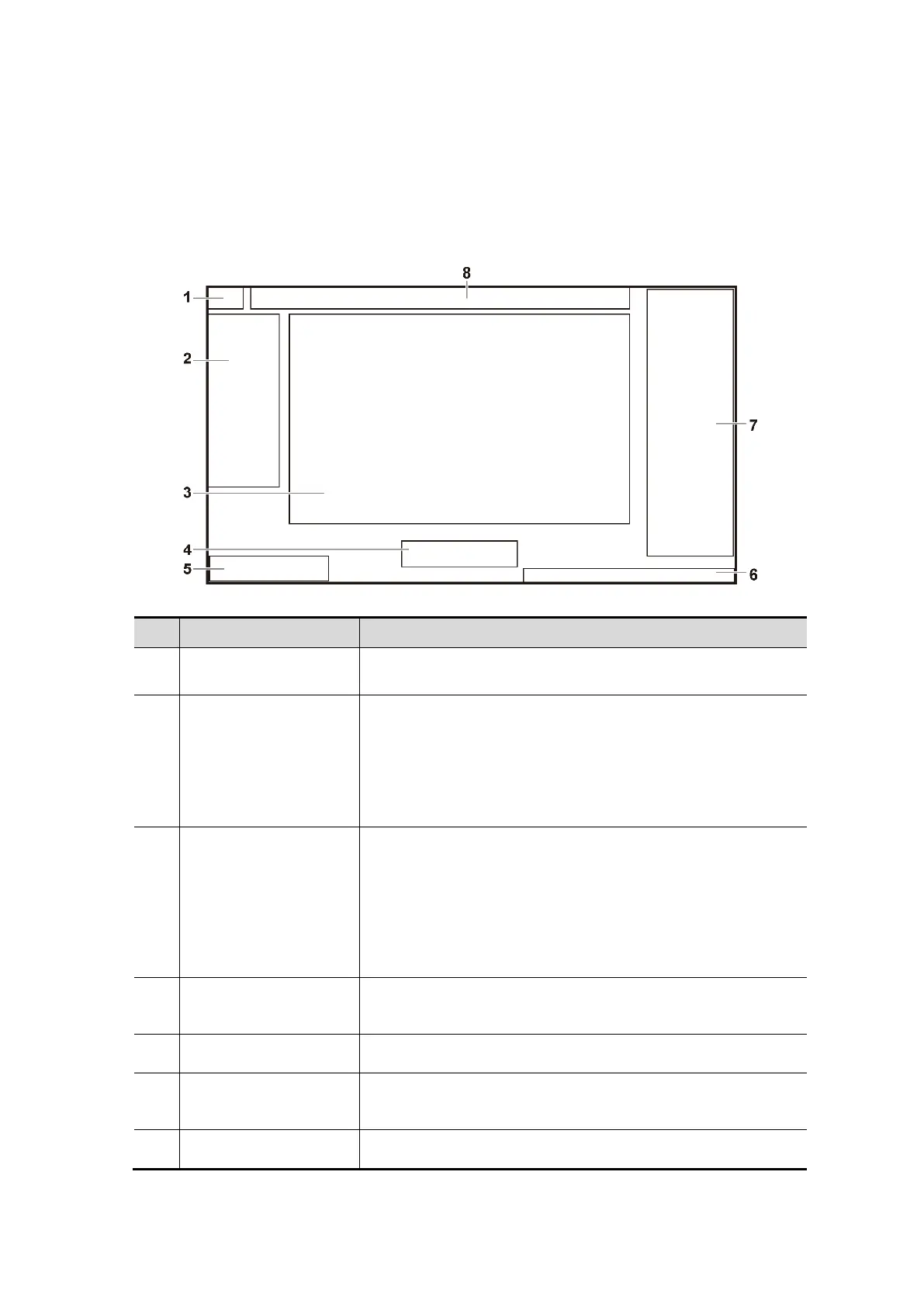

The following diagram maps out the different areas, such as System Information Area, Parameters
Area/Menu, Image Area, Hint (trackball and <Set> key function indications), Help Information Area,
System Icons Area, Thumbnails Area, Patient Information Area.
NO. Item Description
1.
System Information
Area
Displays the manufacturer’s logo and product model.
2.
Parameters
Area/Menu

Displays the image parameters for the active window.
If there are more than one imaging modes, the
parameters are displayed by each mode.
 Menu: Measurements, Comments and bodymarks.
The menu is not displayed by default. Press the
<Menu> key on the small keyboard to display or hide
the parameter menu.
3. Image Area
Displays the ultrasound images, ECG waveforms, probe
mark (or active window mark), time line (in M or PW mode),
coordinate axis (in the top left corner of the image area,
including depth, time, velocity/frequency), acoustic power
(including the acoustic power, MI (Mechanical Index) and TI
(Thermal Index), besides, the comment, bodymark,
measurement calipers, color bar/grayscale bar are also
displayed here.
4.
Hint (trackball and
<Set> key function
indications)
Displays the current functions of trackball and <Set> keys.
5. Help Information Area
Displays various help information items or the progress bar
in the current status.
6. System Icons Area
This area displays the relevant system icons, such as USB
memory device, printer, network, Chinese/English entry,
recorder, current system time, etc.
7.
Thumbnails Area
Displays the thumbnail images stored under the current
patient.
