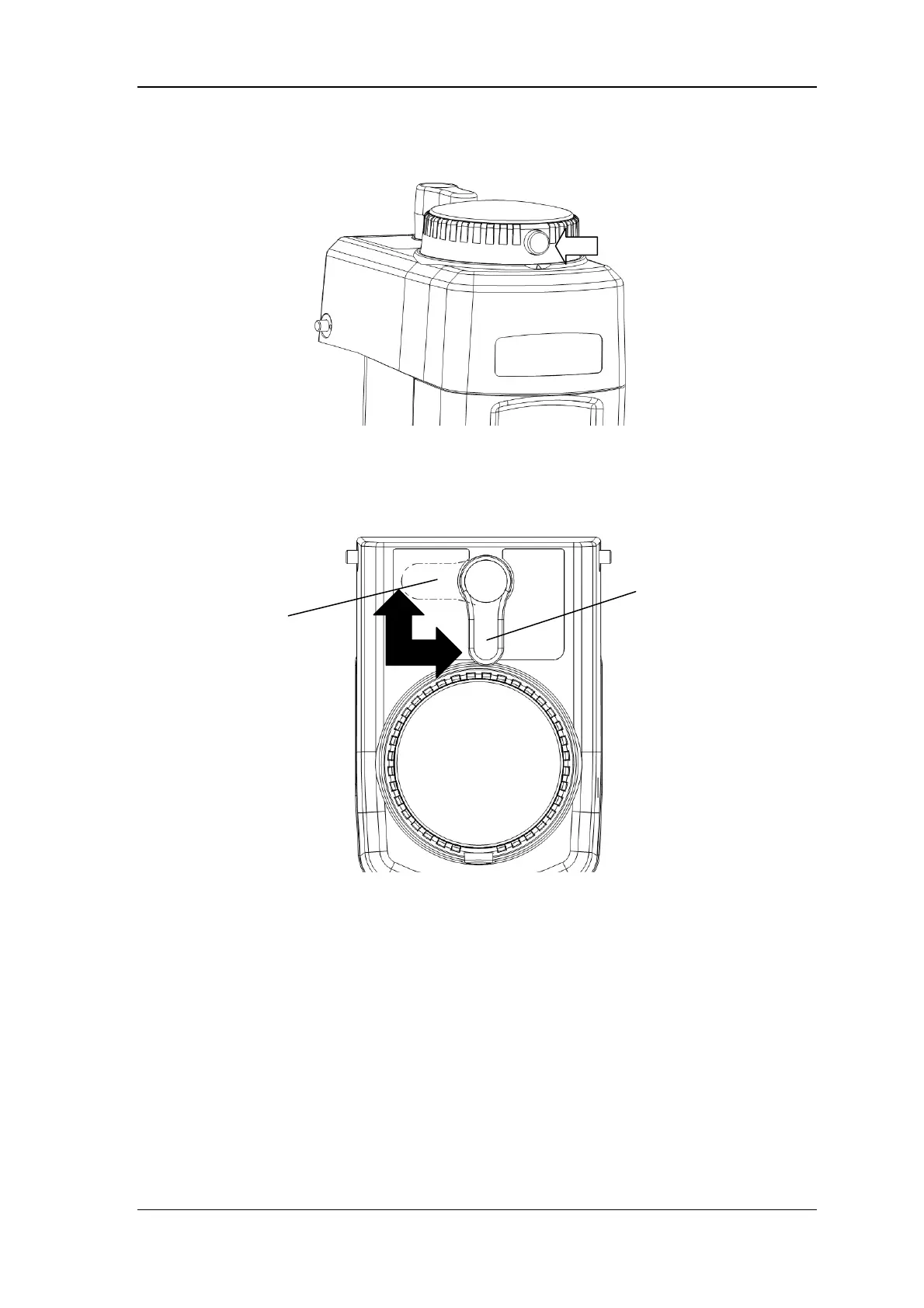

3-3
T
o connect/disconnec
t the vaporizer
, the control dial
m
ust be at the “0” setting i
ndicating locked status.
Press the handle for locking lever and turn the handle clockwise f
or 90
°
to lock
the va
porizer a
nd
counter clockwise for 90
°
to release locki
ng.
Initial positio
n
Locked position
Control dial at the
“0” setting
20
22
Table of Contents
Table of Contents
7
Safety
11
Safety Information
11
Warnings
12
Cautions
13
Notes
13
Anesthetic Vaporizer Symbols
14
The Basics
15
Product Description
15
Intended Use
16
Anesthetic Vaporizer Appearance
16
Front View
16
Rear View
17
Configuration Differences
18
Method of Operation
19
Control Dial
19
Connecting and Interlock System
19
Plug-In Adapter/Plug-In Connector
20
Interlock Device
22
Filling System
23
Filling and Draining
25
Checks before Filling
25
Filling the Vaporizer
25
Pour Fill System
27
Key Filler System
30
Quik-Fil System
35
Draining the Vaporizer
37
Pour Fill System
37
Key Filler System
40
Quik-Fil System
43
Blowing off the Vaporizer
44
Checks before Use
45
Checklist-Checks before each Use
45
Setting Checks
46
Basic Operations
49
Connecting the Vaporizer
49
Adjusting the Concentration of Anesthetic Agent
52
Switching off the Vaporizer
54
Disconnecting the Vaporizer
54
Moving When Filled
55
Cleaning and Disinfecting
57
Cleaning
57
Disinfecting
58
User Maintenance
59
Repair Policy
59
Maintenance Schedule
60
Checking the Concentration
60
Checking the Filling System
62
Checking the Plug-In Adapter
62
Troubleshooting
63
Operation Related Faults and Remedies
63
Filling and Draining Related Faults and Remedies
65
Plug-In Adapter Related Faults and Remedies
65
Storage and Transport
67
Storage
67
Transport
68
Theory of Operation
69
Operating Principle
69
Calibration
71
Influence of Temperature
71
Influence of Flow
74
Influence of Gas Composition
76
Influence of Atmospheric Pressure
77
Influence of Fluctuations in Pressure
77
Influence of Running Time
78
A Product Specifications
81
Standards Compliance
81
Physical Specifications
81
Operating Range
82
Performance Specifications
82
Product Configurations
83
Flow Range
83
5
