LCD Display
The ZS3 full-sized 19-inch LCD Display shows the ultrasound image, plus patient and imaging
information in designated areas of the screen.
• Overall screen display = 1280 x 1024 pixels
Full Screen Image Display (Figure 2.7)
The ZS3 allows you to enlarge the imaging portion of the monitor to (1152 X 864). You can
easily go from the imaging portion display of (960 x 720) to (1152 X 864) with the push of a
Function Key which can be configured in Setup/Keys or alternately by using the Pointer to click
on the Full Image Display ICON located in the lower left corner of the imaging screen.

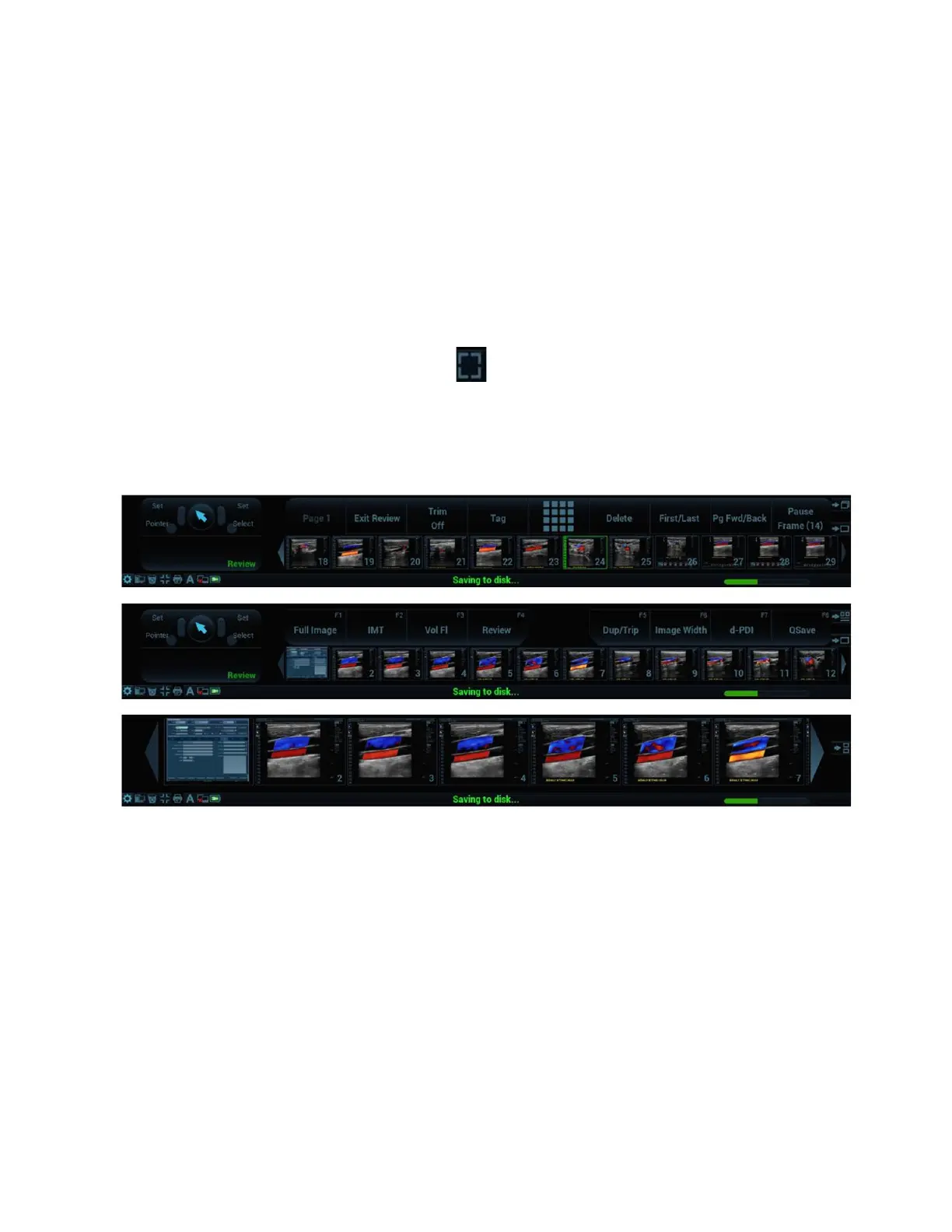

Once in Full Image Display, the screen will display Thumbnails or F Keys/OLEDs and Small
Thumbnails. Use the Pointer to click on the Switch Button ICON on the far right hand side of the
screen to toggle between F Keys and OLEDs. Click on Thumbnail ICON to toggle between large and
small thumbnails.
While Full Image Display is active, any Menus such as Calculations or Annotations will ‘time out’ and
disappear from the screen after a short time to prevent image overlap. Pointing to the black margin
to the left of the Menu area (yellow oval below) of the screen will bring the menu back.
