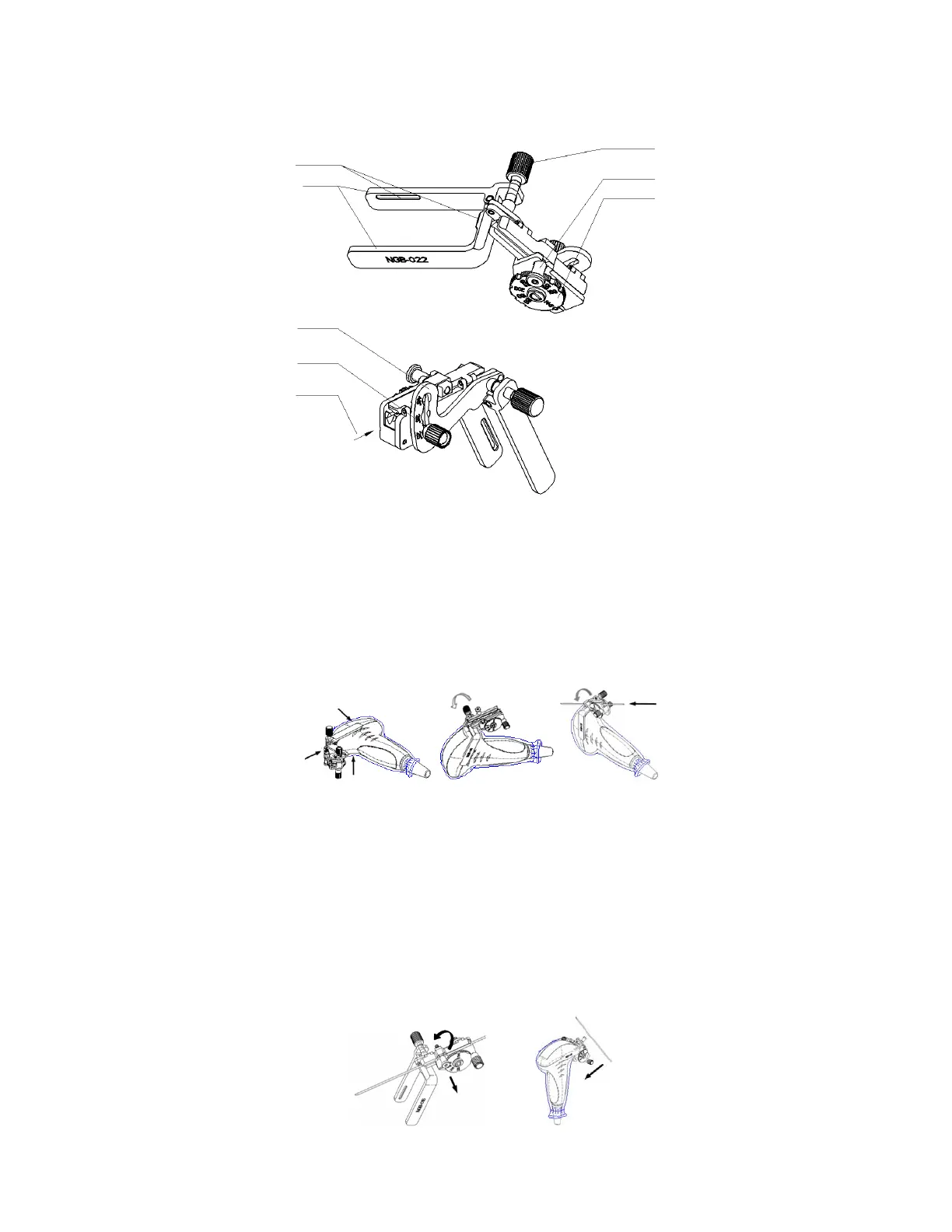

NGB-022 Metal/needle undetachable needle-guided bracket
Installing the Needle-Guided Bracket
NGB-022
(1) Put on the sterile transducer sheath.
(2) Hold the transducer by one hand, select the proper needle-guided bracket, and hold it with
the other hand. Match the groove of the bracket with the tab of the transducer. Amount the
bracket onto the transducer.
(3) Screw the pinch nut of the needle-guided bracket to confirm that the needle-guided bracket
is properly installed on the transducer.
(4) Adjust the dial scale to the required needle type shift, and then screw the needle fixing nut
to lock the dial scale. (To adjust the dial scale you have to loose the needle fixing nut first.)
(5) Pull the lock pin and close the V-shaped cover to fix the lock pin in the groove of the needle
type adjusting base, so as to install the needle into the guiding hole.
Removing the Needle-Guided Bracket
NGB-022
(1) Pull the lock pin and open up the V-shaped cover to expose the needle.
(2) Separate the bracket and the transducer from the needle.
Groove
Clamp
Needle fixing nut
Lock pin
Needle type dial
scale
Angle adjusting base
Angle fixing nut
Needle guide hole
