Minelab GPX 5000 User Manual

36
GPX 5000 Range
GPX 4800 Range

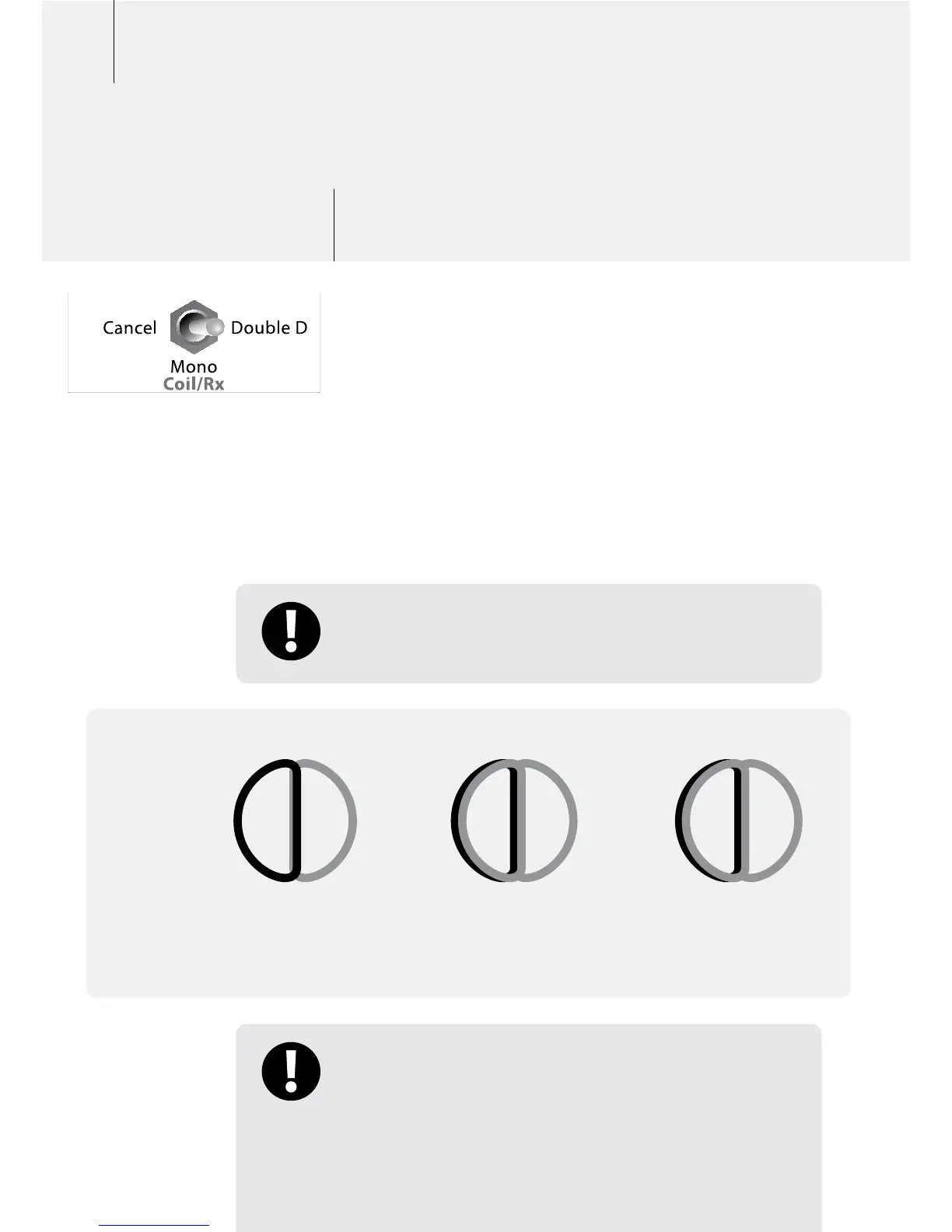

The Coil/Rx control changes the search pattern and sensitivity
of the coil. This improves the versatility and characteristics of
GP Series and Commander Double D coils. This is achieved by
altering the pattern of transmit (Tx) and receive (Rx) fields of
the coil, and how the control box interprets the response. Each
switch position changes the electromagnetic field of the coil,
thus giving better performance in certain situations.
Coils not specifically designed by Minelab may behave
erratically, or be ineffective, in either the Mono or
Cancel positions.
Cancel, Mono, Double D
Cancel, Mono, Double D
Coil/Rx
Changing the transmit (Tx) and receive
(Rx) fields of a Double D coil.
Transmit (Tx)
Receive (Rx)
Double D Cancel
+ –
Tx Rx Tx RxRx
+
This diagram is a view of the internal coil windings, showing the different receive
characteristics of the three Coil/Rx switch options.
Monoloop
Tx RxRx
+ +
You will need to re-Ground Balance every time you select a
new position for the ‘Coil/Rx’ switch.
Caution: Iron Reject will not work when using a
Monoloop coil.
Iron Reject will give the best results when used in
conjunction with the specially designed Commander
Double D coils.

Minelab GPX 5000 Specifications

General

Technology	MPS, DVT & SETA
Ground Balance	Automatic and Manual
Discrimination	Iron Reject
Display	LCD
Battery Life	Up to 12 hours
Coil	11" Double-D coil
Audio Output	Built-in speaker, headphone jack
Battery	Lithium-ion rechargeable battery
Length	1100 mm - 1300 mm (43.3" - 51.2")
Waterproof	Coil is waterproof; control box is not
Target Identification	Audio only
Weight	2.4 kg (5.3 lbs) including battery
Headphone Jack	6.35 mm (1/4")
