MINN KOTA RIPTIDE TERROVA - Adjusting the Depth of the Motor

minnkotamotors.com | 25
©2022 Johnson Outdoors Marine Electronics, Inc.
STOWING AND DEPLOYING THE MOTOR

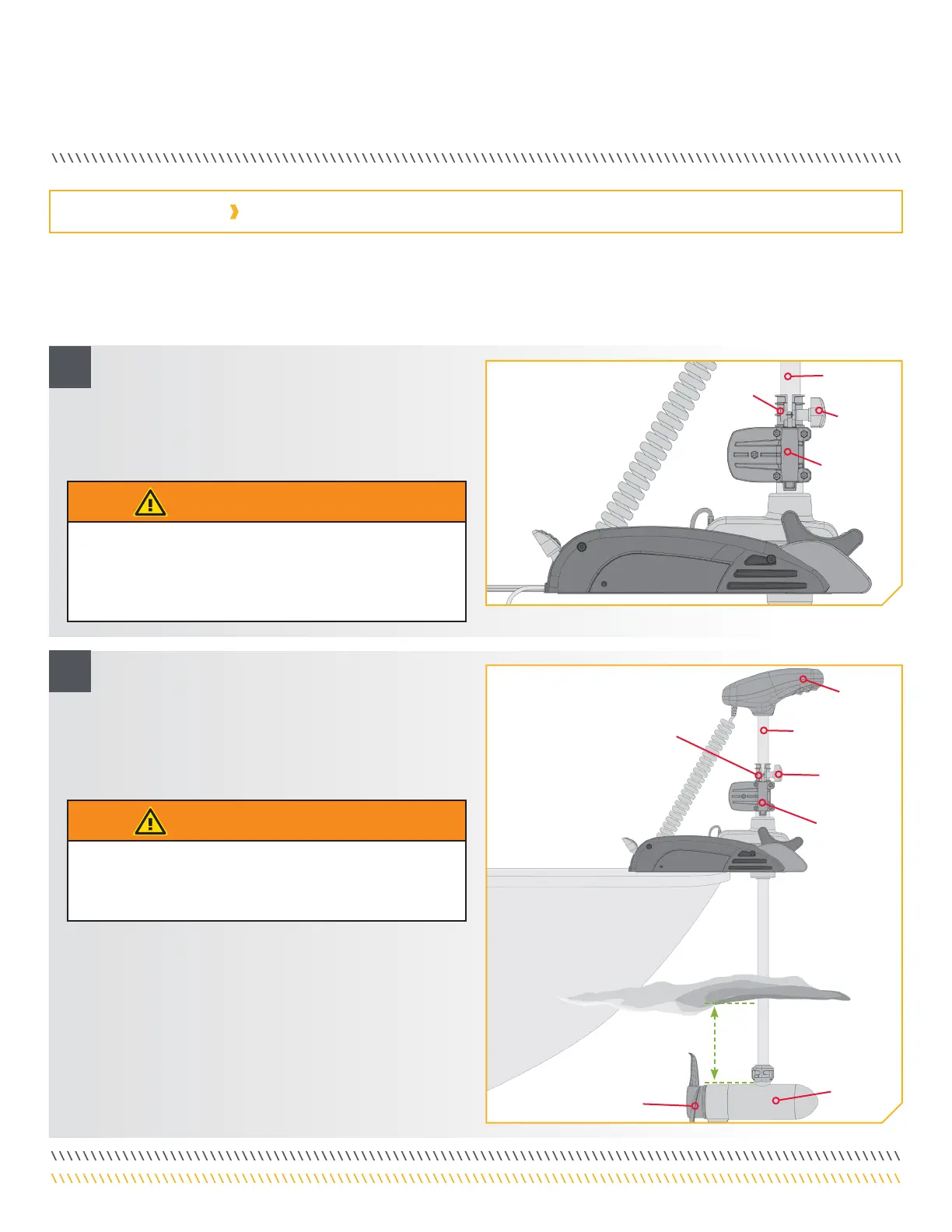

a. With the motor in the deployed position, locate
the Depth Collar on the Shaft above the Lift
Assist Housing.
b. While holding the Shaft, loosen the Depth Collar
Knob until the Shaft can slide up and down freely.
PropellerPropeller
MotorMotor
12" Minimum Depth12" Minimum Depth
Depth Depth
Collar Collar
KnobKnob
Depth Depth
Collar Collar
KnobKnob
Lift Assist Lift Assist
HousingHousing
Lift Assist Lift Assist
HousingHousing
Depth Depth
CollarCollar
Depth Depth
CollarCollar
Control Control
HeadHead
ShaftShaft
ShaftShaft
ADJUSTING THE DEPTH OF THE MOTOR
Once the boat is on the water, it may be necessary to adjust the Lower Unit up or down to achieve an optimum depth for motor
performance. When setting the depth of the motor, be sure the top of the motor is submerged at least 12” below the surface of the water
to avoid churning or agitation of surface water.
MOTOR ADJUSTMENTS
WARNING
The Control Head will create a pinch point if the Depth Collar
Knob is loosened and the Control Head slides to the top of
the Depth Collar. Grasp the Shaft and prevent it from sliding
all the way down to prevent the pinch point.
WARNING
The Lift Assist Housing contains a spring that may break
from excessive wear. Watch for sharp points that can be a
puncture hazard. Always use care when handling the motor.
1
2
c. Raise or lower the motor to the desired depth.
d. Turn the motor Control Head to the desired position.
e. Slide the Depth Collar against the Steering Housing
and tighten the Depth Collar Knob to secure the
motor in place.
