INSTALLATION
INSTALLING THE RIPTIDE TERROVA
Your new Riptide Terrova comes with everything you’ll need to directly install it to the boat. This motor can be directly mounted to the
boat or coupled with a Minn Kota quick release bracket for ease of mounting and removal. For installation with a quick release bracket,
refer to the installation instructions provided with the bracket. For compatible quick release mounting brackets and to locate your
nearest dealer, visit
minnkotamotors.com. To install the motor directly to the boat, please follow the instructions provided in this manual.
Please review the parts list, mounting considerations and tools needed for installation prior to getting started. For additional product
support, please visit
minnkotamotors.com.

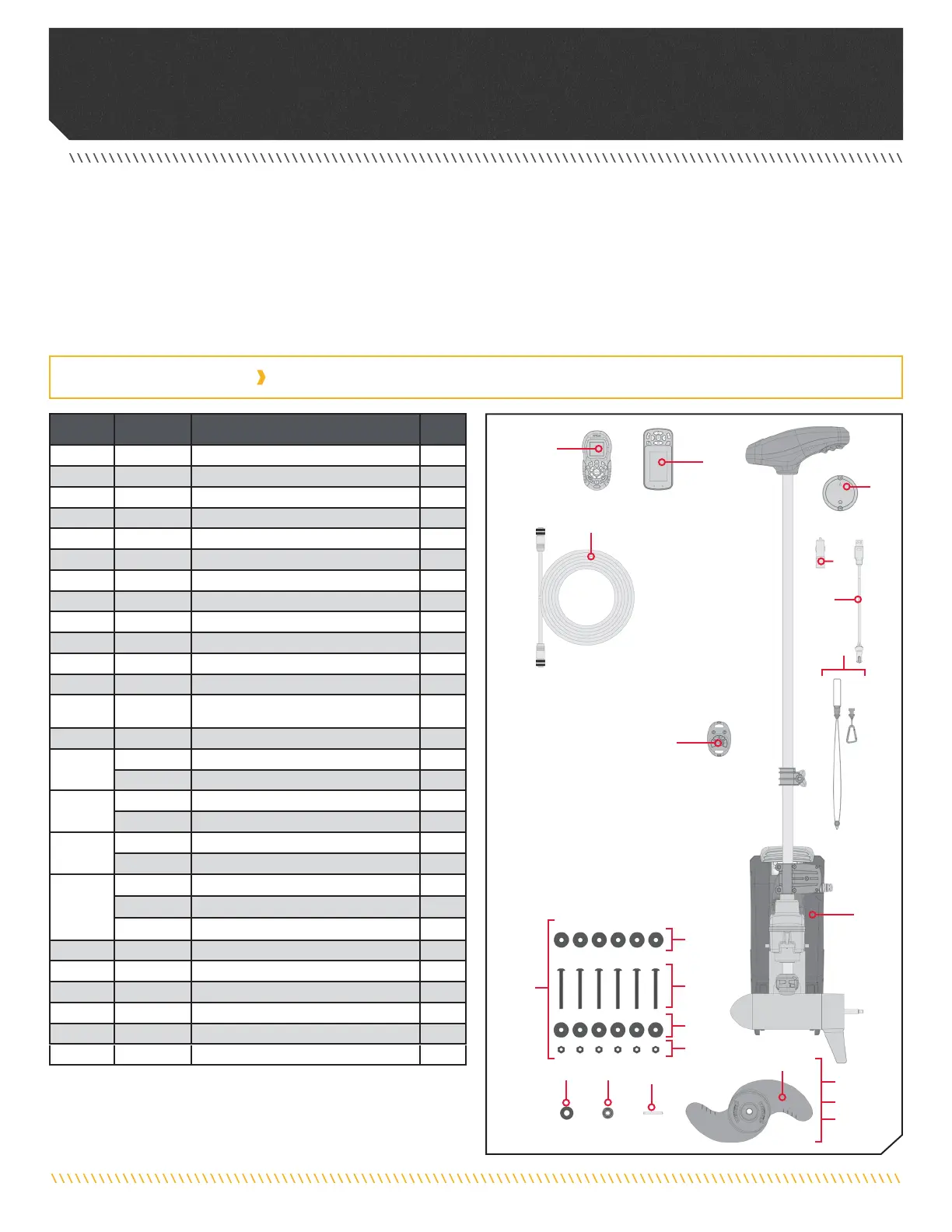

INSTALLATION PARTS LIST
Item /
Assembly
Part # Description Qty.
AA 2994864 BAG ASSEMBLY - (BOLT, NUT, WASHERS) 1
1 2263462 BOLT-MOUNTING-1/4X2 W/STG 6
2 2261713 WASHER-1/4 6
3 2263103 NUT NYLOK 1/4-20 MTG 6
4 2301720 WASHER-MOUNTING RUBBER 6
5
✖
MOTOR ASSEMBLY 1
6 2390800 t LANYARD, REMOTE W/ CARABEENER 1
7 2994075 t REMOTE ASY, IPILOT 1
p
2397106 t MANUAL, QUICK REF., IPILOT 1.6 1
8 2994076 Â REMOTE ASSEMBLY LINK TOUCHSCREEN 1
9 2373241 Â CABLE, USB REMOTE CHARGER LINK 1
10 2375901 Â ADAPTER, USB DC POWER LINK 1
11 2996400 tÂ
HEADING SENSOR ASSEMBLY
*SELECT MODELS ONLY*
1
12 490389-1 Â CABLE, ETH (M12-M-M12-F, 30' 1
14
2092600 PIN-DRIVE 1.06" LG (SS) 1
2262658 PIN-DRIVE 1" X 3/16" S/S 1
15
2151726 WASHER-5/16 STD (S/S) 1
2091701 WASHER-PROP (LARGE) 1
16
2053101 NUT PROP, NYLOCK (MED) 5/16-24 SS 1
2093101 NUT-PROP, NYLOCK, LG MX101 318 SS 1
17
2091161 PROP-WW2 3 5/8" MACHINED
1
2341161 PROP-WW2 4.5" WELDED
1
2331161 PROP-WW2 4" WELDED
1
18 2994095 l TRANSMITTER ASY,TRRV CPLT 1
BB 1378131 PROP IND 2091160 WDLS WDG II 1
CC 1378160 PROP KIT 2341160 112# WW2 1
DD 1378132 PROP IND 233160 WDLS WDG II 1
p
2327132 INSTALLATION INSTRUCTIONS TERROVA 1
p
2397107 Â MANUAL, QUICK REF., IPILOT LINK 3.0 1
1010
1111
99
1212
22
33
1515
1616
1414
1717
55
88
77
44
11
66
AAAA
BBBB
CCCC
DDDD
1818
l Only available with models factory installed with CoPilot.
p Not shown on Parts Diagram.
✖ This part is included in an assembly and cannot be ordered individually.
t Only available with models factory installed with i-Pilot.
 Only available with models factory installed with i-Pilot Link.
