REPLACING THE BATTERY
REPLACING THE BATTERY
a. Temporarily ground yourself by touching a grounded
metal object in order to discharge any static
electricity in your body.

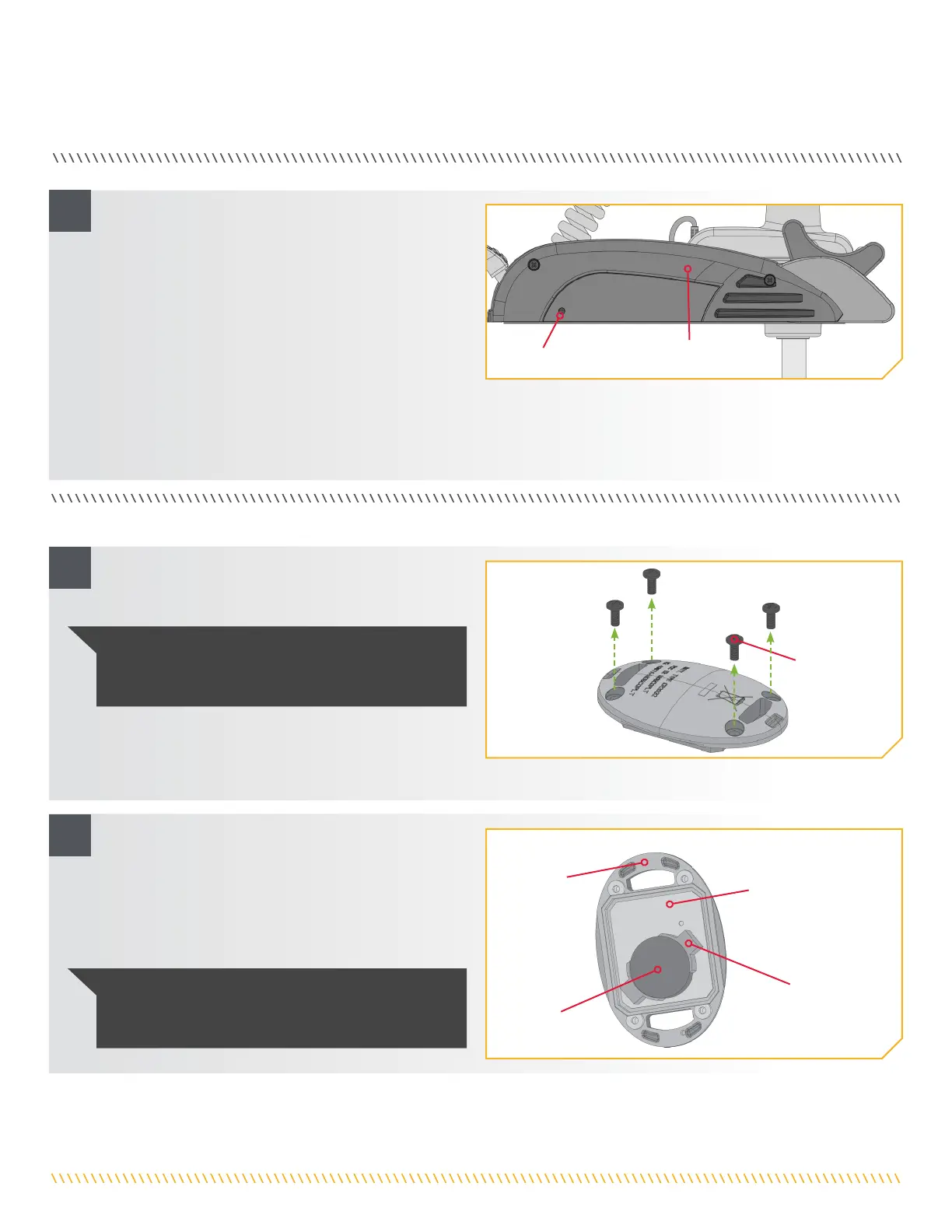

Retaining Retaining
FingersFingers
Circuit BoardCircuit Board
Remote Remote
Case FrontCase Front
ScrewsScrews
BatteryBattery
Learn ButtonLearn Button
Right SideplateRight Sideplate
2
1
b. Remove the four screws on the bottom of the
remote case.
c. Separate the case halves to access the circuit board.
2
b. Press and hold the Learn Button and power up the
CoPilot receiver by reconnecting the Power Cables, or
by making sure that the breaker, if equipped, is "on."
c. Continue to hold the Learn Button down for 10
seconds. During this time the receiver audio will emit
a warble sound, slowly transition to a constant beep
and then shut o.
d. Release the Learn Button and the receiver will
reboot. The receiver will emit a 2 second long beep
indicating memory is empty. This audio pattern
will occur each time the receiver powers up until a
remote is "Learned."
d. To remove the Battery, place the tip of a finger or
thumb under the exposed edge of the Battery and
pry it upwards.
e. Install the new battery with the positive (+) side of
the Battery facing up and away from the Circuit
Board. Ensure Battery is snapped securely in place.
NOTICE: The replacement battery must be a model
CR2032 coin cell type. It is strongly recommended that
a name brand battery is used.
NOTICE: The replacement battery must be a model
CR2032 coin cell type. It is strongly recommended that
a name brand battery is used.
