minnkotamotors.com | 27
©2022 Johnson Outdoors Marine Electronics, Inc.

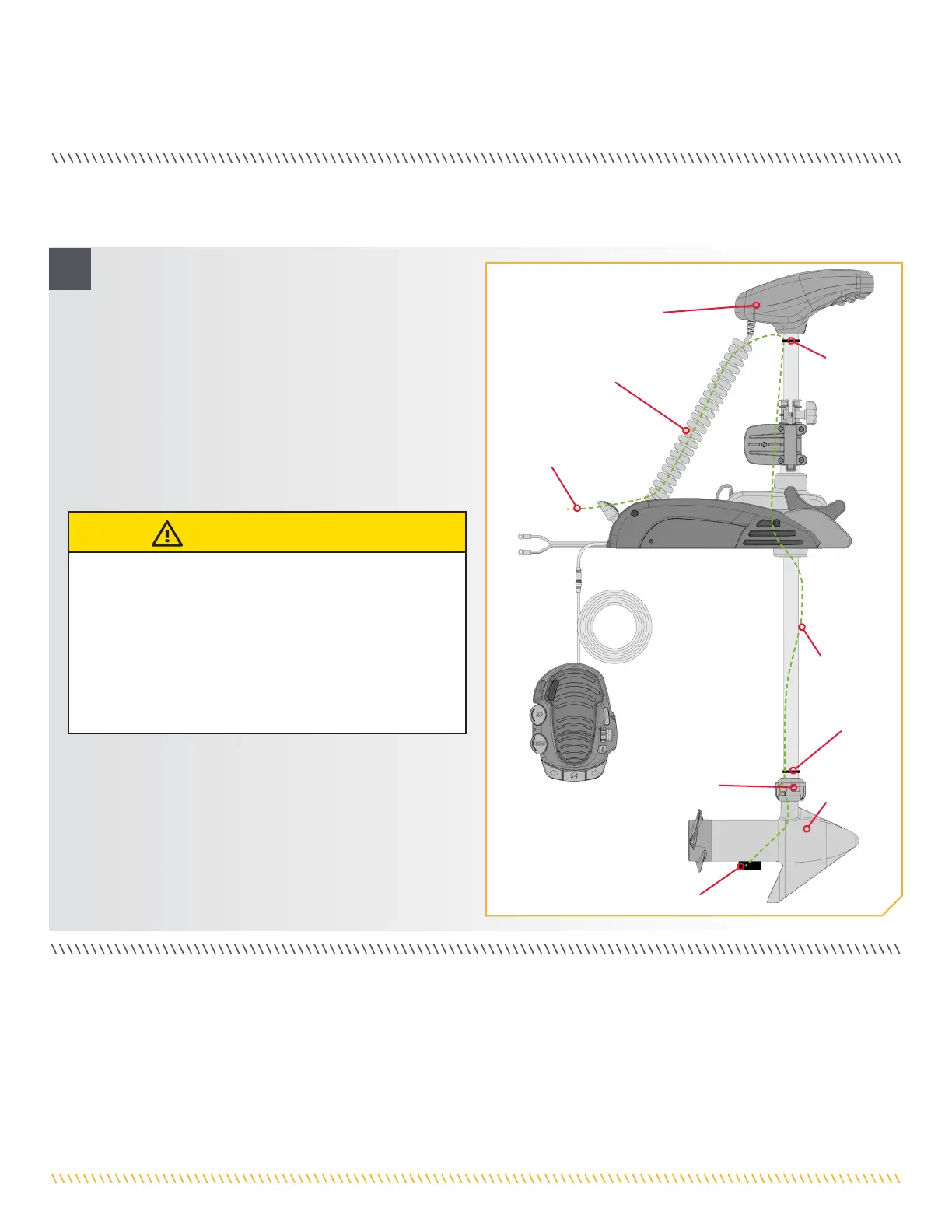

INSTALLING AN EXTERNAL TRANSDUCER
a. Mount the External Transducer according to
directions provided with the transducer.
b. Leave enough slack in the Transducer Cable
between the Lower Unit and Control Head to allow
the motor to properly stow and deploy.
c. Use two tie wrap cables to secure the Transducer
Cable to the Shaft just above the Lift Assist Collar
and just below the Control Head.
d. Run the Transducer Cable through the Coil Cord to
the power supply.
1
CAUTION
Not following the recommended wire routing for the
Universal Sonar may cause damage to the product and void
your product warranty. Take care to test the length and
placement of cable to be sure that there is enough slack
where needed and that cables are free of being entangled
in moving parts. Routing the cables in any way other than
directed may cause damage to the cables by being pinched
or severed.
SlackSlack
Tie Wrap CableTie Wrap Cable
Lift Assist CollarLift Assist Collar
Lower UnitLower Unit
Tie Wrap Tie Wrap
CableCable
External TransducerExternal Transducer
Transducer CableTransducer Cable
Coil CordCoil Cord
Control HeadControl Head
INSTALLING AN EXTERNAL TRANSDUCER
An external transducer is not included with your trolling motor. An external transducer can be installed onto the motor.
