Minolta A2 User Manual

(2720)A 43
REPAIR GUIDE
■■
■■
■
Fig. 1Fig. 1
Fig. 1Fig. 1
Fig. 1
Adjustment of the defective pixel (DEFECT PIXEL)
Required equipment
Luminance box
L-2101/L-2111 or multi camera tester: EF-8301
PC with preinstalled the 2720 adjustment program
USB-500 (USB cable)
AC-1L/AC-11
Preparation of the adjustment
1. Start up the 2720 adjustment program.
2. Connect the camera and PC with USB-500, and click "START" after confirming the USB connection.

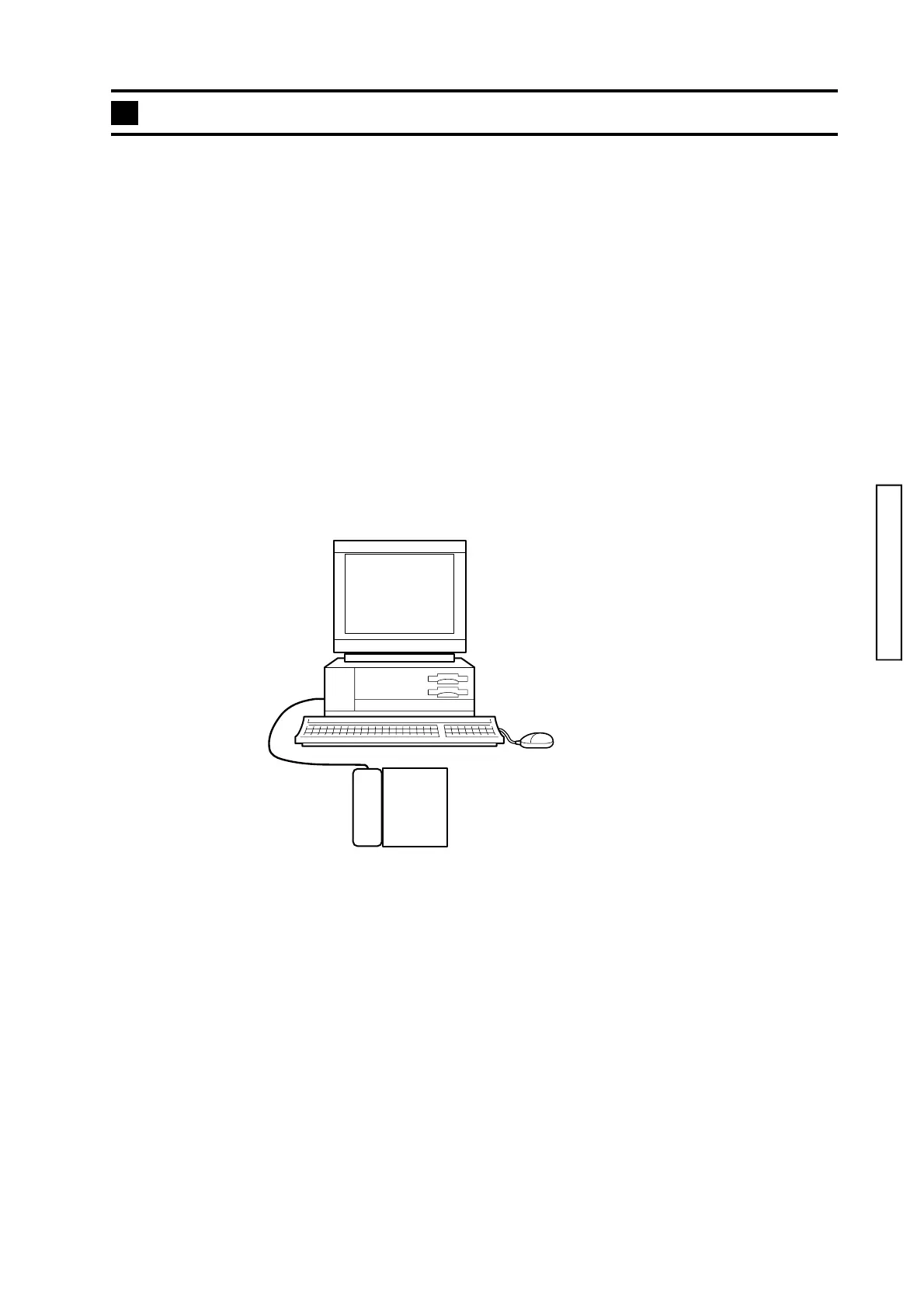

3. Set the camera and the measuring instrument as shown on the Fig.1.
4. Set the luminance box to "EV10," and the lens block of the camera to "Wide position."
Procedure of the adjustment
1. Click "DEFECT PIXEL" of the adjustment menu.
The adjustment is automatically started.
2. The adjustment is completed when "OK" is displayed on the adjustment menu.
Luminance boxLuminance box
Luminance boxLuminance box
Luminance box
：：
：：
：
Brightness: EV10Brightness: EV10
Brightness: EV10Brightness: EV10
Brightness: EV10
Camera:Camera:
Camera:Camera:
Camera:
Lens block: Wide-angle positionLens block: Wide-angle position
Lens block: Wide-angle positionLens block: Wide-angle position
Lens block: Wide-angle position
