(2720)A 35
■■
■■
■
Fig. 1Fig. 1
Fig. 1Fig. 1
Fig. 1
■■
■■
■
Fig. 2Fig. 2
Fig. 2Fig. 2
Fig. 2
①①
①①
①
②②
②②
②
③③
③③
③
35cm35cm
35cm35cm
35cm
16701670
16701670
1670
±±
±±
±
30mm30mm
30mm30mm
30mm
■■
■■
■
Fig. 3Fig. 3
Fig. 3Fig. 3
Fig. 3

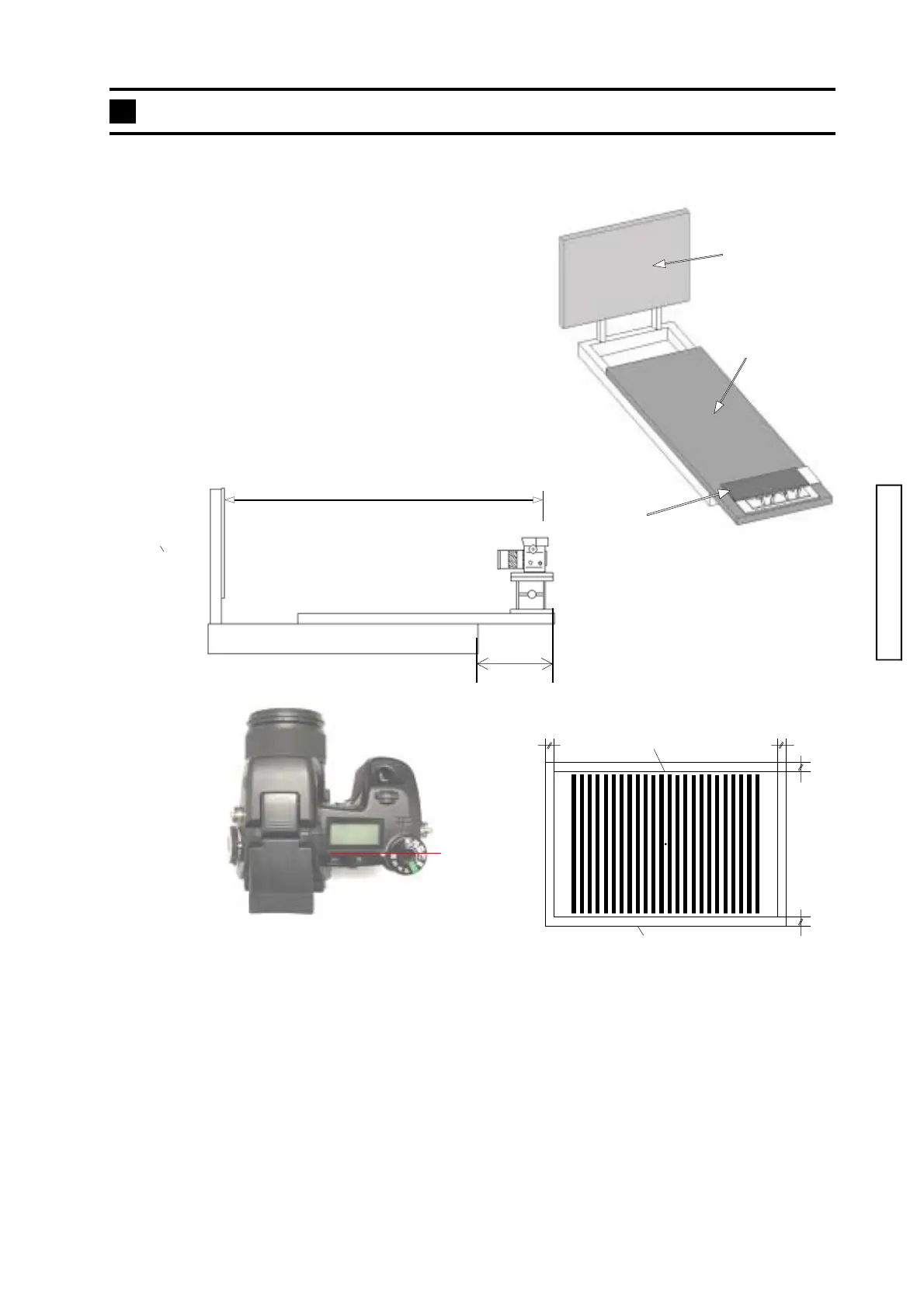

Setting the camera and the chart when adjusting the CCD perspective.
Set the camera and the chart (siemens star chart and LB adjustment chart II for 2766) in either way, 1 or
2 of the followings to adjust the CCD perspective.
1. In case of using the camera chart setting stand
Required equipment
Camera chart setting stand
Stand for 2782
Chart stand backboard
Siemens star chart (see P.51 Measuring instrument)
LB adjustment chart II for 2766
Remodelling the camera chart setting stand
1. Exchange the stand for 2766 (Fig. 1 -1-).
2. Exchange the chart stand backboard (Fig. 1 -2-).
3. Move the board (Fig. 1 -3-) to 35cm back (Fig. 2).
Setting the camera and the chart
1. Install 2720 on the stand for 2782.
2. Stick the chart onto the chart stand backboard (siemens star chart or LB adjustment chart II for 2766),
and adjust the base stand to be " 1670±30mm" for the distance form the CCD surface of the camera to
the chart.
3. Turn the power of the camera on.
4. Look into the EVF, and adjust the base stand to let the chart be in the center of the finer.
Zoom roughly to let the vertical and horizontal spaces of the chart and the EVF finder be equal (Fig.3).
However, three adjustment screws for the CCD holder must be tighten to the end.
In case of using the camera chart setting stand on 2757 and 2765
Use the stand for 2757 / 2765 (Fig.1 -1-).
Move the board (Fig.1 -3-) to 35cm front (Fig.2).
ChartChart
ChartChart
Chart
CCD positionCCD position
CCD positionCCD position
CCD position
EVF FinderframeEVF Finderframe
EVF FinderframeEVF Finderframe
EVF Finderframe
