(2720)A 37
■■
■■
■
Fig. 1Fig. 1
Fig. 1Fig. 1
Fig. 1
AA
AA
A
BB
BB
B
CC
CC
C
Adjustment of CCD perspective
Outline
Adjust the position and inclination of the CCD.
*See Setting the camera and the chart when adjusting the CCD perspective (P.35, 36). Use -1- the camera
chart setting stand or -2- the tripod to set the position of the camera and the chart and adjust the CCD
position.
Required equipment
Fluorescent light stand SQ967W
PC with preinstalled the 2720 adjustment program
USB-500 (USB cable)
AC-1L/AC-11
Hexangular wrench (1.5) or hexangular screwdriver
Preparation of the adjustment
1.Remove the cabinet top (1124) and the assy cabi back (0160).
2. Remove the control back unit (2782-0458) of the assy cabi back (0160).
3. Connect the connector of the control back unit (2782-0458).
4. Connect the connector of the control top unit (0428) from the cabinet top (1124).
5. Remove the glue when the CCD adjustment screw is fixed by the glue.

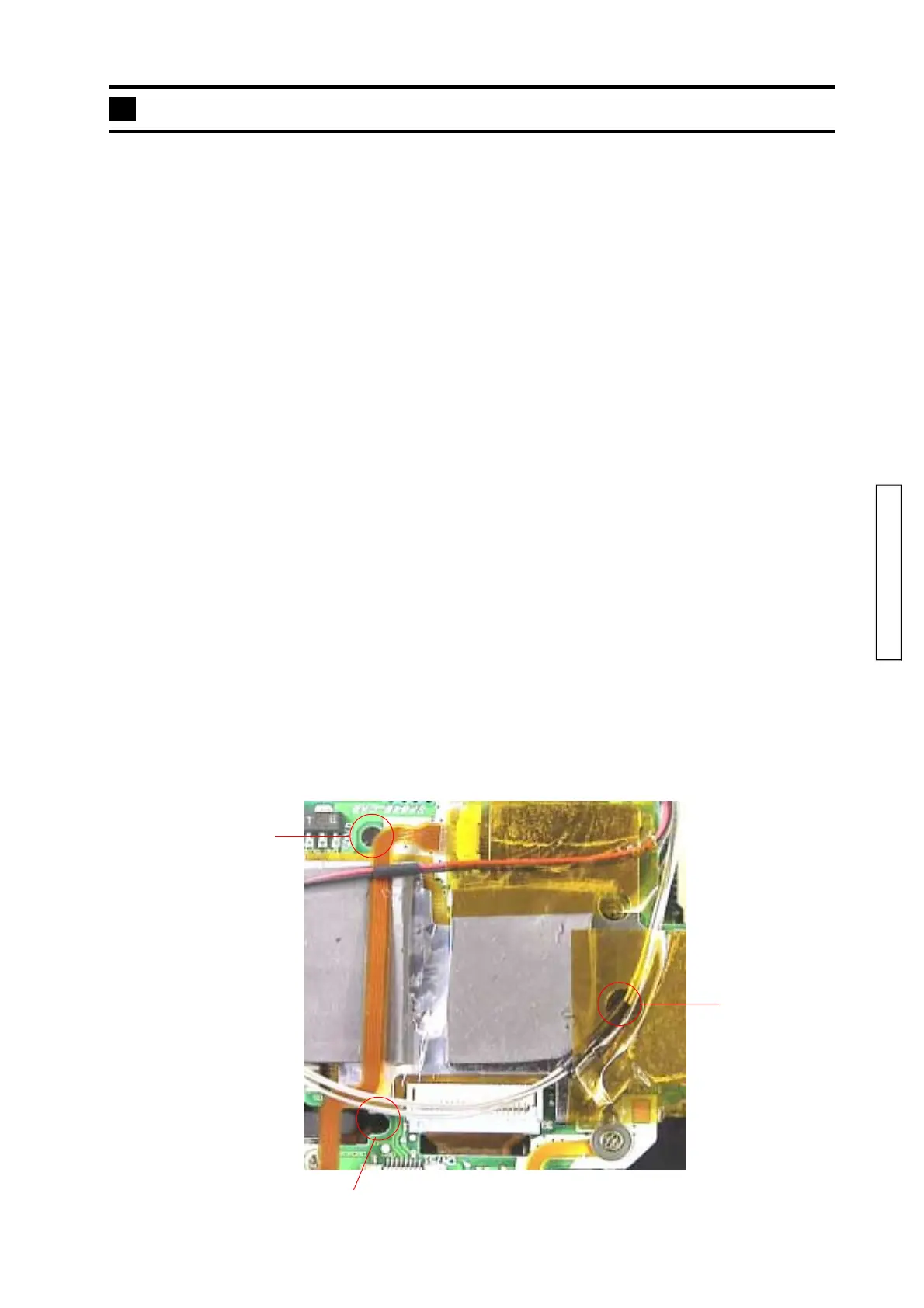

6. Tighten three CCD adjustment screws with the hexangular wrench (Fig.1).
7. See Setting the camera and the chart when adjusting the CCD perspective (P.35, 36) to set the positions
of the camera and the siemens star chart.
8. Set the inverter fluorescent light to light the chart equally.
9. Loosen three CCD adjustment screws (fig.1) by 1 + 3/4 turns.
10. Start up the 2720 adjustment program.
11. Connect the camera and PC with USB-500, and click "START" after confirming the connection.
CCD adjustment screwCCD adjustment screw
CCD adjustment screwCCD adjustment screw
CCD adjustment screw
To Next Page
