35 mm film-holder mark (p. 22)
Pull the front door down to this position when inserting a 35mm film holder FH-U1 or
slide mount holder SH-U1.
APS adapter mark (p. 23)
Pull the front door down
to this position when
inserting the optional
APS adapter.
Power switch (p. 19)
Turn off the scanner
when it is not in use.
Indicator lamp
Eject button (p. 23)
This button ejects the film holder, and
rewinds the film in the optional APS
adapter.

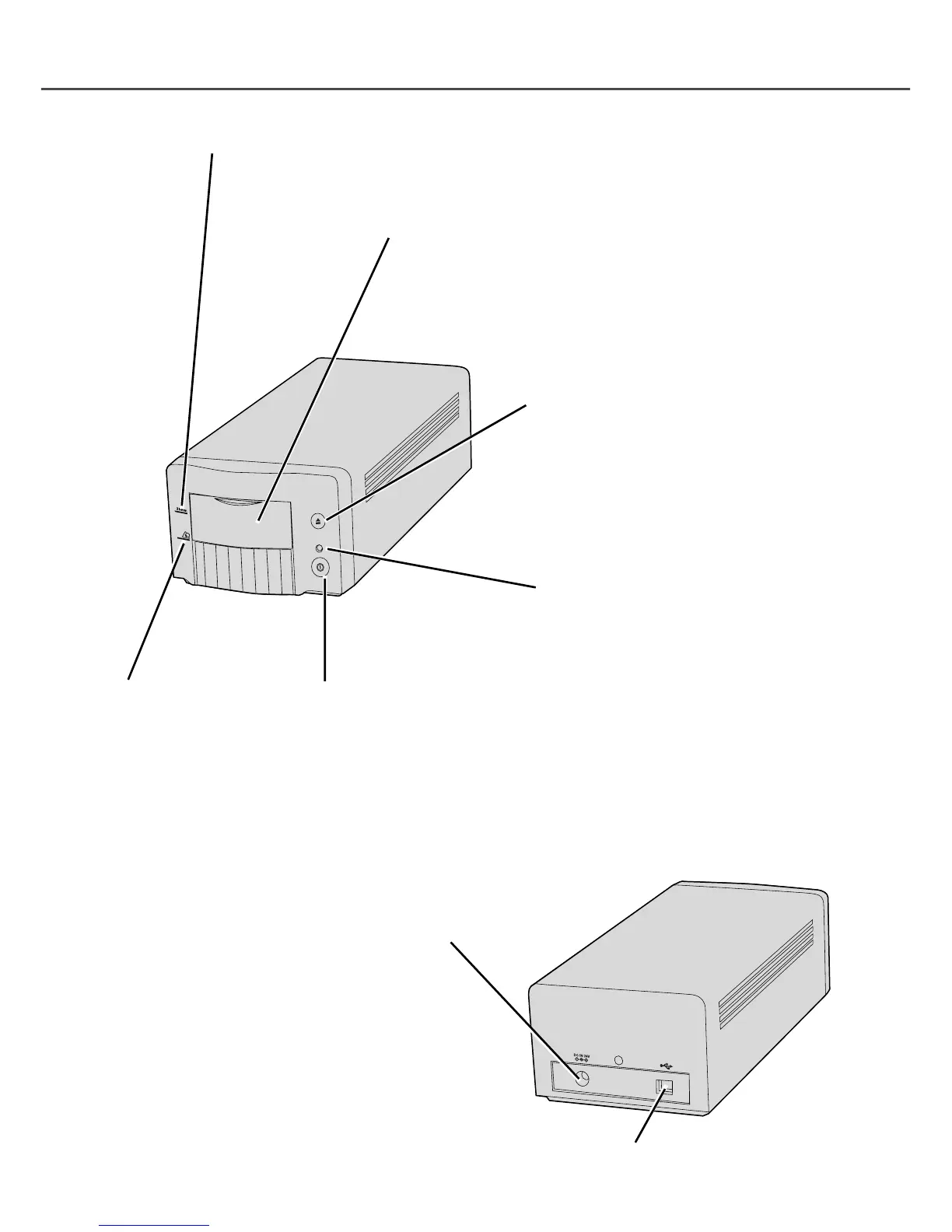

Names of parts
Glows steadily:
The scanner is ready to use.
Blinks slowly:
Scanning or initializing. When the scan-
ner is initializing, do not open the front
door (p. 19)
Blinks rapidly:
Scanner error. (p. 86)
USB port
DC terminal
Front door (p. 22)
When the scanner is not in use, close the door to prevent
dust from entering the unit.
