Mira Advance Installation Guide

19
1306246-W2-A
12345678
BEAB ON/OFF
ON
43 DEG C
45 DEG C
RESERVED
6L/MIN
PUMP LK3
PUMP LK2
PUMP LK1
Mira Advance Flex Extra (J09N) for use with the Instantmatch by
Whale® Digital Pump
Instant Match Bluetooth Transformer
SDS236T (755.678)
Note! Suitable Bluetooth transformer can
be identied by blue start/stop button.
LK2 Set to ON

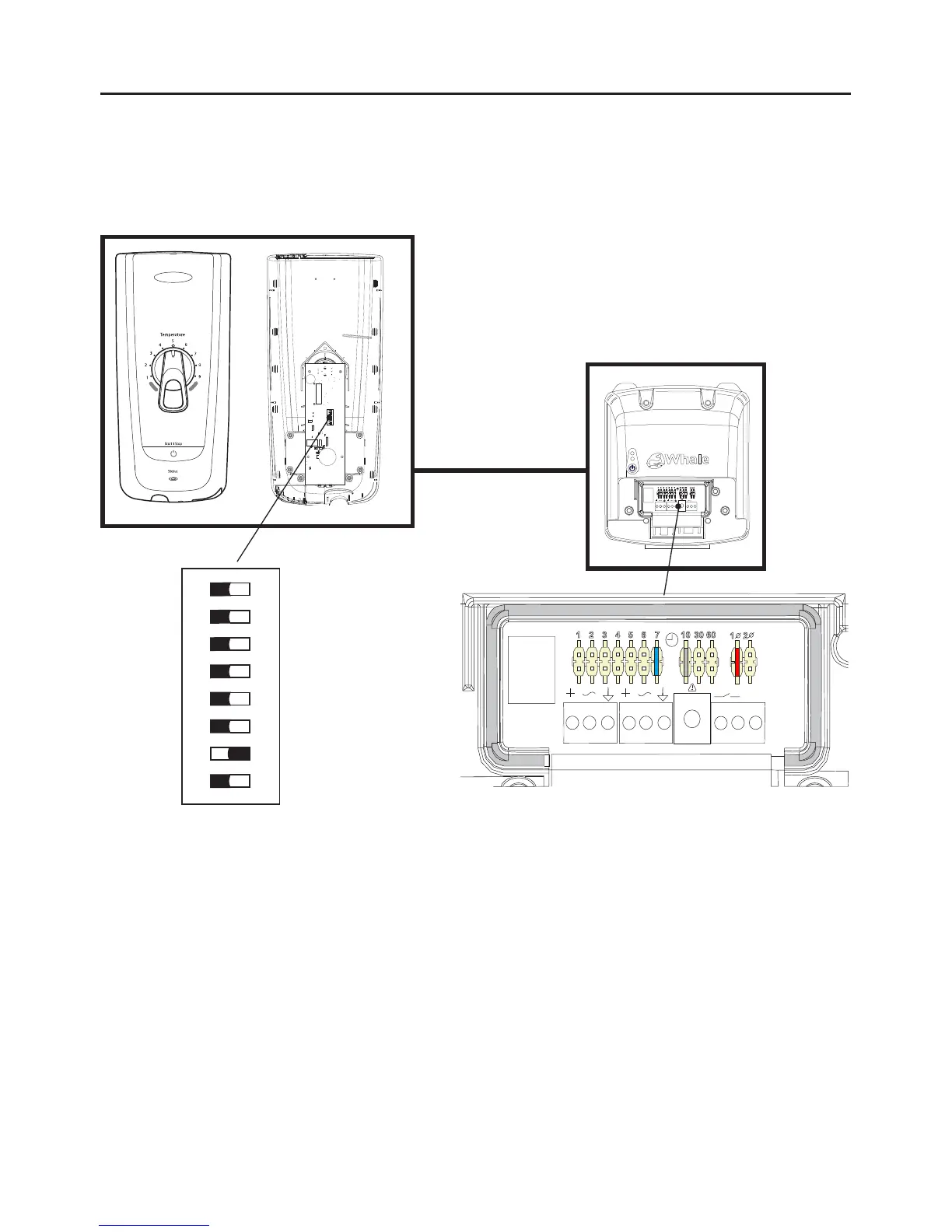

Jumper Settings for Bluetooth Pairing
48º C Factory setting &
Bluetooth transformer connection
1 2 3 4 5 6 7 10 30
60
1 2
Flex Extra J09N
12345678
BEAB
OFF ON
43 DEG C
45 DEG C
RESERVED
6L/MIN
PUMP LK3
PUMP LK2
PUMP LK1
1 2 3 4 5 6 7 10 30 60
1
2
Bluetooth Setup
Please refer to ‘Bluetooth Pairing’ to link the shower to
the ‘Whale’ bluetooth transformer (SDS236T - 755.678)
The bluetooth operation of the Advance Flex Extra (J09N)
will only work with a Whale bluetooth transformer. Pre-
vious Whale RF wireless transformers will not connect
to the bluetooth Advance.
Important Information Regarding Bluetooth Range!
Correct operation of the shower and pump relies on the strength of the bluetooth signal between
them. You must install the Whale Pump and Bluetooth transformer as advised in the Whale
Instantmatch installation guide. Failure to do so may cause the shower & pump not to pair or
go into an error mode resulting in intermittent or complete failure to operate.
For retrot installations where a Whale Bluetooth transformer is tted in place of a RF wireless
transformer then testing for correct operation must be carried out before nal install.
Note! Metal objects such as steel baths, sinks, foil lined plaster board or solid walls can
reduce the operational range. Where a Bluetooth signal cannot be established the pump and
shower should be hardwired.

Mira Advance Specifications

General

Temperature Control	Thermostatic
Warranty	2 Years
Power Ratings	9.8 kW
Water Connection	15 mm
Outlet Connection	1/2"
Water Pressure	0.7 - 10 bar
Cable Entry Points	Bottom entry
Safety Features	Overheat protection
Approvals	WRAS
