Mira Advance Installation Guide

18
1306246-W2-A
13

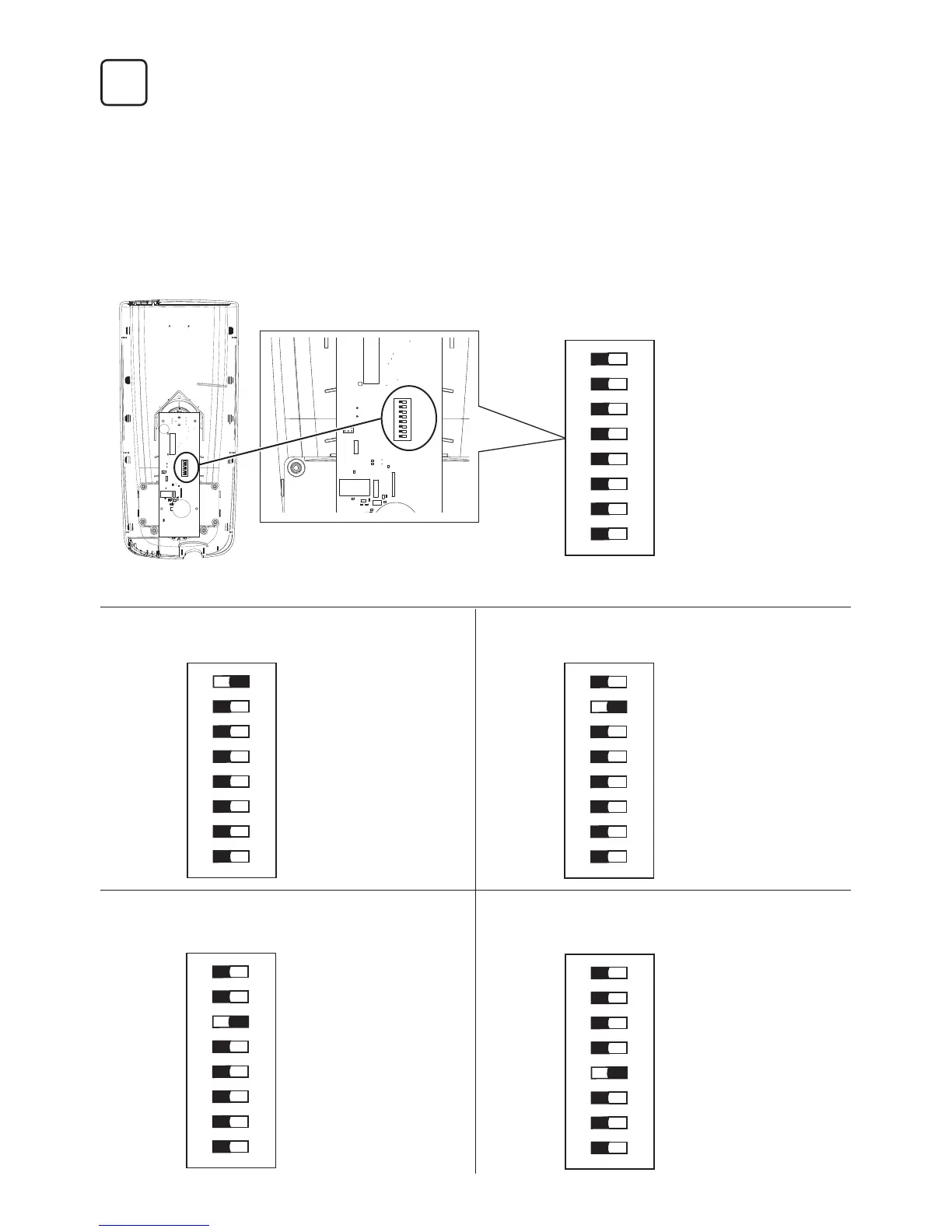

Factory setting with all switches in the off position at maximum temperature of 48° C.
Please refer below for examples of settings.
Maximum Temperature/BEAB/Eco (6 L/Min)
Factory Setting 48° C
43° CBeab 41° C
45° C
Eco
Setup
12345678
BEAB
OFF ON
43 DEG C
45 DEG C
RESERVED
6L/MIN
PUMP LK3
PUMP LK2
PUMP LK1
12345678
BEAB
OFF ON
43 DEG C
45 DEG C
RESERVED
6L/MIN
PUMP LK3
PUMP LK2
PUMP LK1
12345678
BEAB
OFF ON
43 DEG C
45 DEG C
RESERVED
6L/MIN
PUMP LK3
PUMP LK2
PUMP LK1
12345678
BEAB
OFF ON
43 DEG C
45 DEG C
RESERVED
6L/MIN
PUMP LK3
PUMP LK2
PUMP LK1
12345678
BEAB
OFF ON
43 DEG C
45 DEG C
RESERVED
6L/MIN
PUMP LK3
PUMP LK2
PUMP LK1
You must set the product up to ensure it operates correctly for the users requirements.
12345678
BEAB ON/OFF
ON
43 DEG C
45 DEG C
RESERVED
6L/MIN
PUMP LK3
PUMP LK2
PUMP LK1
Rear of Cover
12345678
BEAB ON/OFF
ON
43 DEG C
45 DEG C
RESERVED
6L/MIN
PUMP LK3
PUMP LK2
PUMP LK1
BEAB and Eco mode cannot be used together, if both modes are selected the shower
will operate in BEAB mode and the Eco switch will not have any affect.

Mira Advance Specifications

General

Temperature Control	Thermostatic
Warranty	2 Years
Power Ratings	9.8 kW
Water Connection	15 mm
Outlet Connection	1/2"
Water Pressure	0.7 - 10 bar
Cable Entry Points	Bottom entry
Safety Features	Overheat protection
Approvals	WRAS
