Mira Advance Installation Guide

17
1306246-W2-A
10
11
Important! Priming the Shower
12

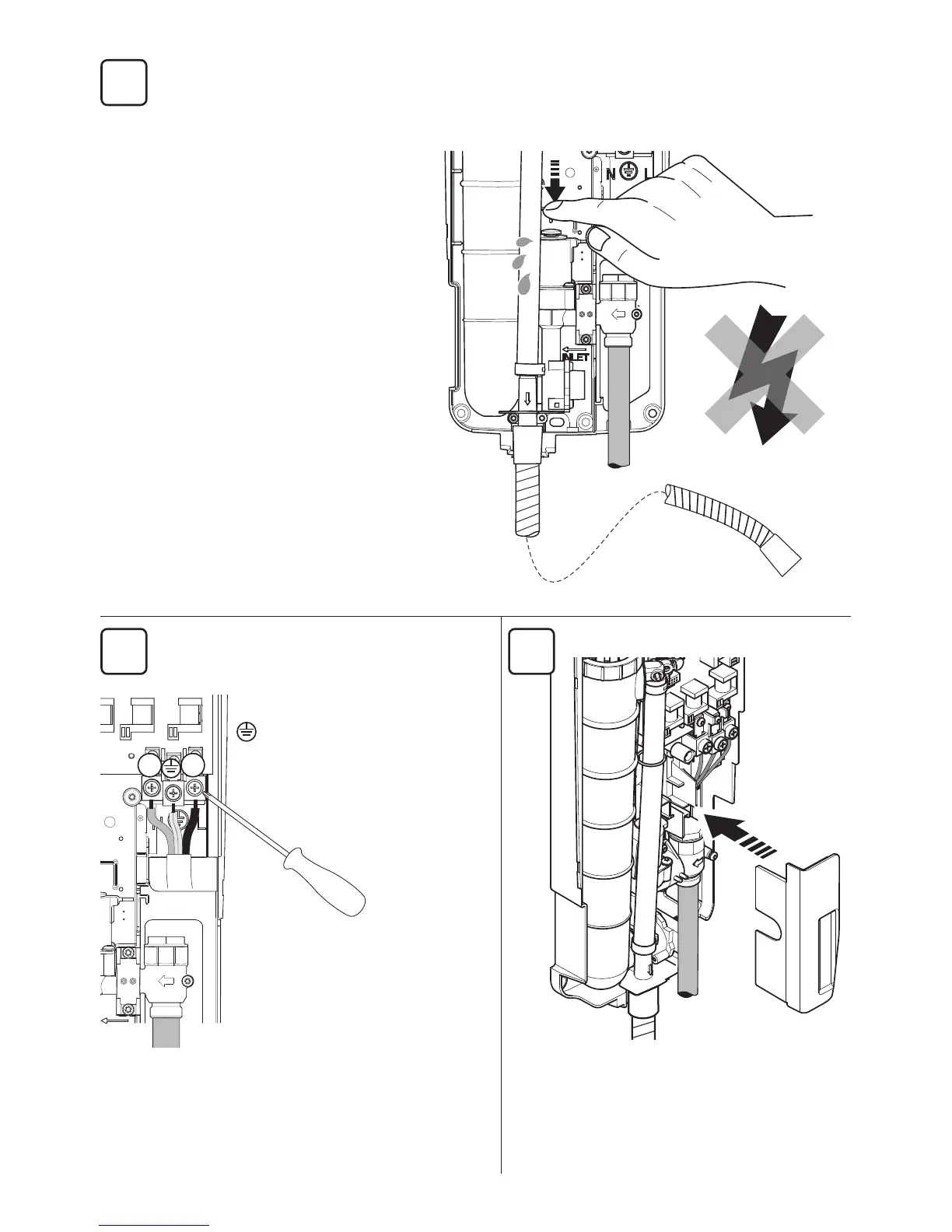

Feed the electrical cable into the case.
Firmly connect the conductors. DO NOT
exert strain on the terminal block.
N = Blue or Black
= Green or Yellow/Green
L = Brown or Red
N
L
Ret the service tunnel.
Important! Refer to set up before
tting the front cover.
Make sure that the electrical
supply is isolated!
To prime the appliance, push down
and hold the air bleed button until
water flows from the hose for a
minimum of 10 seconds. Repeat
this procedure 3 times.
Failure to prime the appliance
will seriously affect the shower
performance!
Note! Water will leak from bleed
button.
Carefully dry off water before
connecting / reinstating the
electrical supply.

Mira Advance Specifications

General

Temperature Control	Thermostatic
Warranty	2 Years
Power Ratings	9.8 kW
Water Connection	15 mm
Outlet Connection	1/2"
Water Pressure	0.7 - 10 bar
Cable Entry Points	Bottom entry
Safety Features	Overheat protection
Approvals	WRAS
