Mira Advance Installation Guide

21
1306246-W2-A
Transformer
From Transformer
TERMINAL BLOCK
N L
Transformer
Pump
To Mains
Brown
Brown
Black
Black
Red
Brown
CN13
RELAY PCBA
Black
Red
Red
Connect to Wired Pump
Relay PCB (CN13)

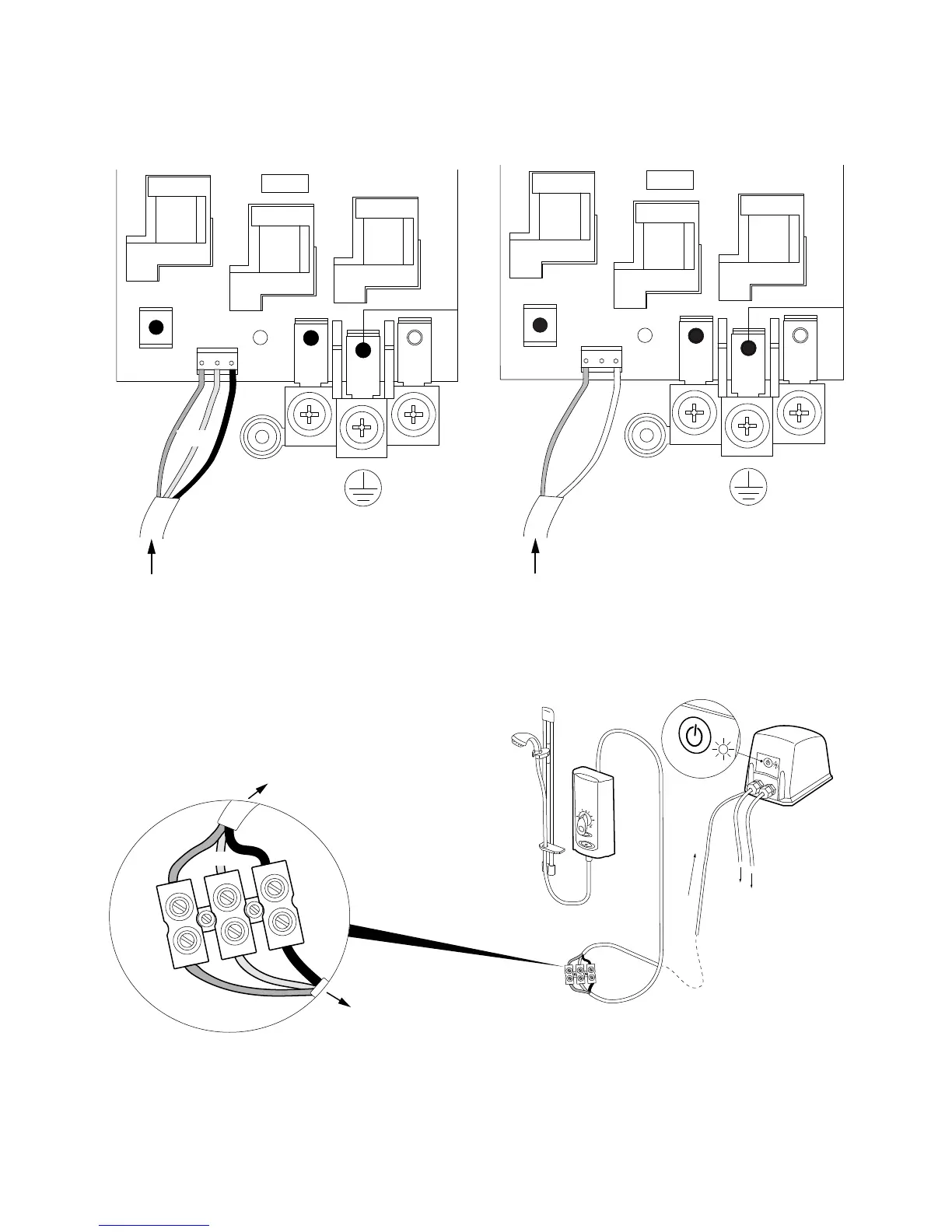

Advance Relay Board Showing Hardwired Connection to the Transformer
Transformer
From Transformer
TERMINAL BLOCK
N L
Transformer
Pump
To Mains
Brown
Brown
Black
Black
Red
Brown
CN13
RELAY PCBA
Black
Red
Red
Connect to Wired Pump
Relay PCB (CN13)
Hardwired Connection to the Transformer
Appliance and Fittings may
differ slightly from the one
shown
From Transformer
TERMINAL BLOCK
N L
Brown
CN13
White
3 wires signal cable connection to relay
board
2 wires signal cable connection to relay
board
Caution! Take care not to damage the relay board when making connections

Mira Advance Specifications

General

Temperature Control	Thermostatic
Warranty	2 Years
Power Ratings	9.8 kW
Water Connection	15 mm
Outlet Connection	1/2"
Water Pressure	0.7 - 10 bar
Cable Entry Points	Bottom entry
Safety Features	Overheat protection
Approvals	WRAS
