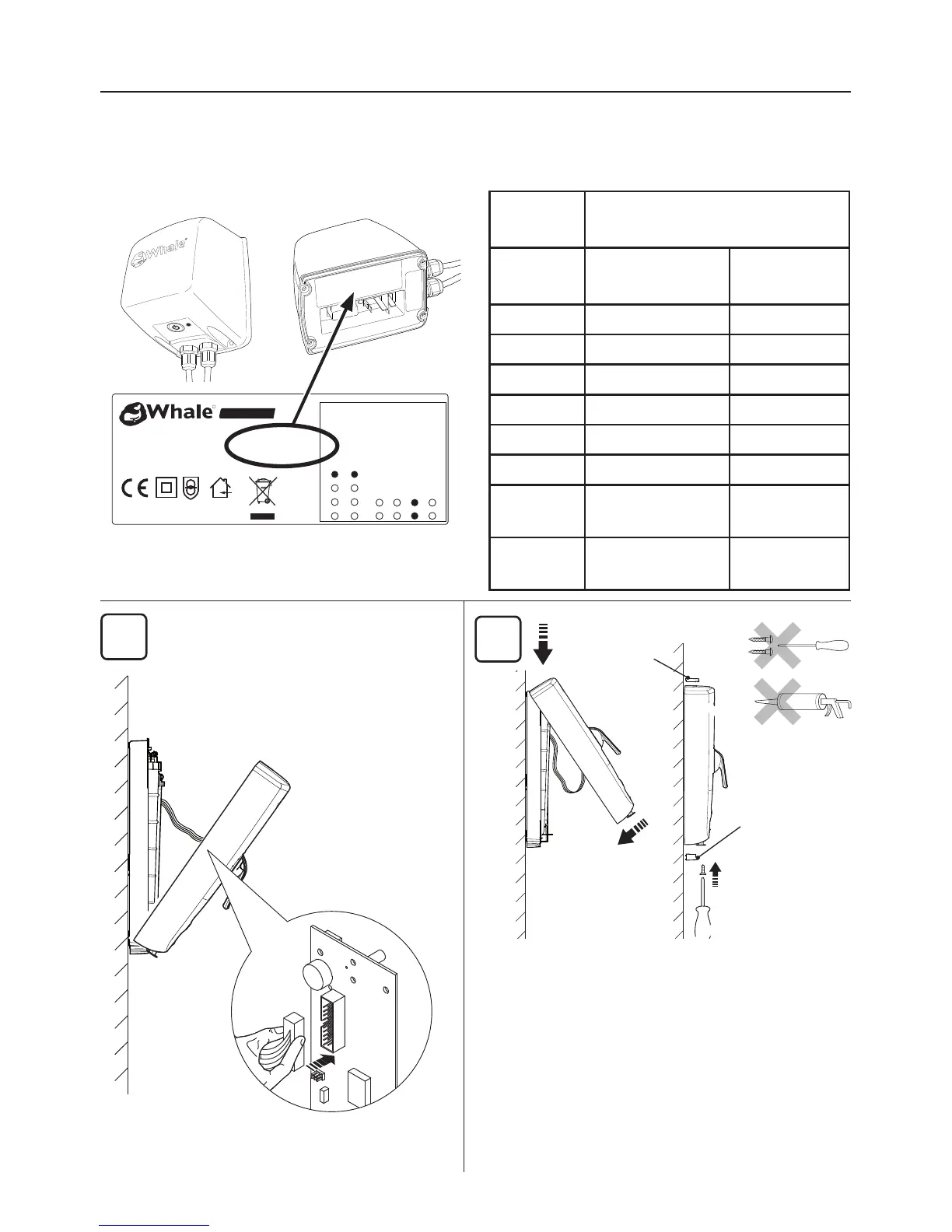

Connect ribbon cable to inside of cover.
14
Ret cover. Inserts are provided to nish
top and bottom as required.
Warning! Do not use alternative screws
to secure cover. This can cause internal
damage to appliance. Do not seal around
any part of appliance.
Install the shower ttings. Refer to separate
Installation and User Guide.
Note! Follow post installation requirements.
Insert
Insert
The Mira Advance 'Extra' models can be connected to the Instantmatch by Whale®
Pump. This section describes how to identify and connect the shower to the drain
pump. For full installation instructions of the Instantmatch by Whale® Pump, see
separate guide.
R
INSTANT
MATCH
Input: 230Vac ~ 50Hz 800mA
Fuse T5A
Duty Cycle: 30min/60min
This transformer is only for use with:
SDP021T Shower Drainage Pump
Type: 755.549
IP 45 30°C Max
Class II Indoor use
only
F
Jumper Layout - See Instructions
Post installation - To perform any
change to jumper settings, the power
supply must be switched off for
30 seconds prior to the change being made.
Off
Delay
(Seconds)
10
30
Gems Sensor
TYPE
Hardwired Connection - Other Whale Transformer
Drain
Pump
Shower
Type Advance
Control PCB
Signal
755.199 LK1 - ON Hardwired
755.210 LK1 - ON Hardwired
755.299 LK1 - OFF Hardwired
755.349 LK1 - OFF Hardwired
755.399 LK1 - OFF Hardwired
755.449 LK1 - OFF Hardwired
755.549 LK1 - OFF
Hardwired/
Wireless
755.678 LK1 - ON
Hardwired/
Bluetooth
15
