Built-in Models

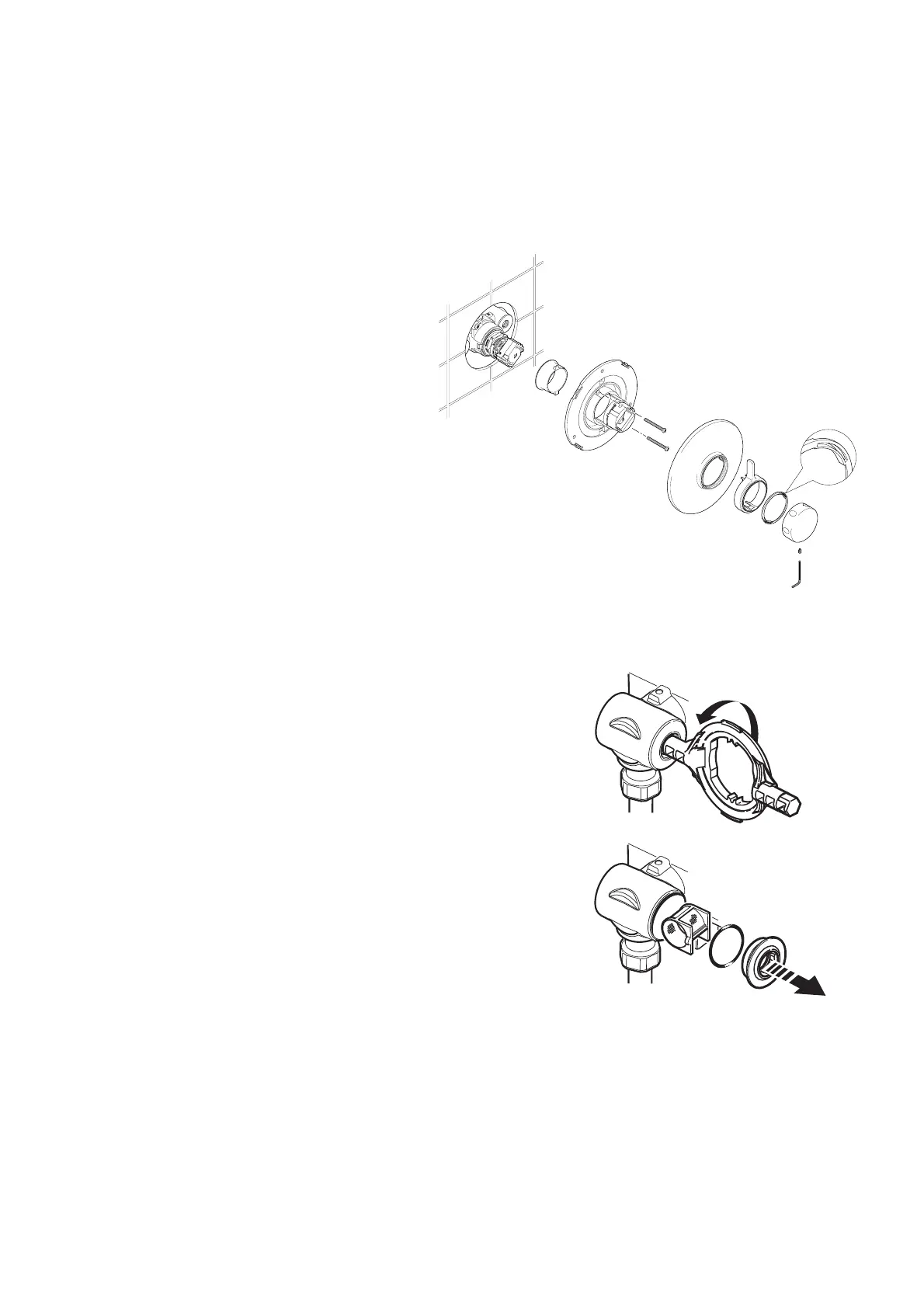

1. Isolate the hot and cold water supplies and operate the Flow Control Lever to
drain any residual water.
2. Loosen the Grubscrew to remove the Temperature Control Handle. Then remove
the Flow Control Lever.
3. Carefully unclip the Concealing
Plate from the Backplate.
Note! Use a suitable screwdriver in
the cutout to assist separation.
4. Unscrew the two Shroud Screws
and remove the Backplate from
the Mixer.
5. Unscrew the Filter Plugs with the
‘O Key’ (supplied) or a 12 mm
hexagonal wrench and remove
the Filters.
Note! Use pliers to remove the filters
carefully.
6. Clean both fi lters under a jet of water to
remove any lodged particles.
7. Refi t the Filters and tighten the Filter Caps.
Note! Make sure that the seal is fitted
correctly and undamaged.
8. Turn on the hot and cold water supplies and
check for leaks.
9. Refer to section: “Control Assembly (Built-
in Models)” and follow the instructions to
replace the Concealing Plate and Handles.
