The date of the last calibration will appear on the display when the
device is switched on. Additionally, the next calibration due date is
indicated on a calibration label on the device's probe (s. Fig. 8).
2 Thickness measuring device
The measuring device consists of two functional units (s. Fig. 9):
(1) Control unit
(2) Measuring probe
They are connected by a telescopic rod. The telescopic rod is secured
with tube locks (4).
The control unit is equipped with:
(5) Display
(6) Directional pad (D-pad)
(7) Search key
(8) Interfaces for a USB flash drive, headphones and charger
Coils for emitting and receiving signals are integrated in the probe. The
traversed measurement path is determined based on the front wheel's
rotation.

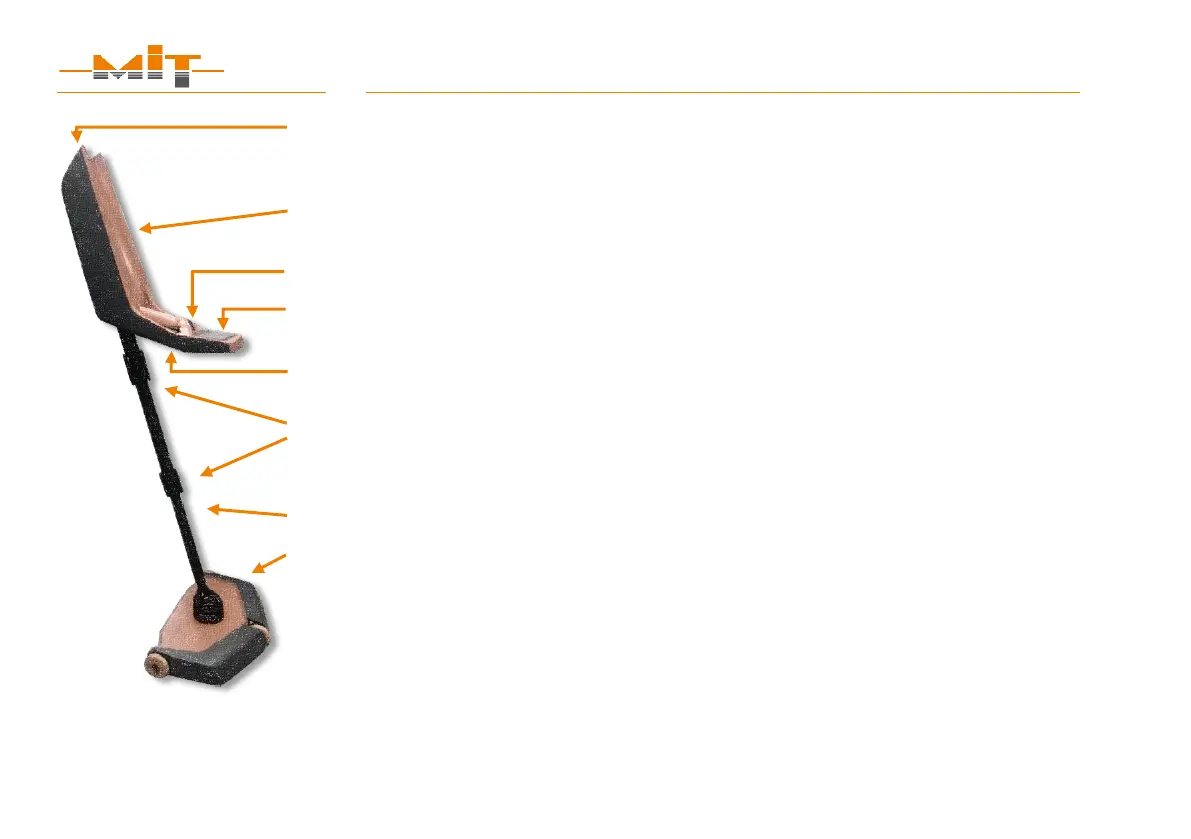

Fig. 9 MIT-SCAN-T3 design
