Preparing MIT-SCAN-T3 for operation:
 Remove the device from its transport box and loosen both tube
locks by turning them counterclockwise.
 Extend the middle tube segment of the telescopic rod to the
desired length and tighten the upper tube lock.
 Align control unit and probe by turning the lower tube segment
by 90 degrees counterclockwise.
 Extend the lower segment and tighten the tube lock.
2.1 Interfaces
At the upper end of the control unit under a lid are three interface
connections (s. Fig. 10):
1) Battery charger
2) USB flash drive
3) Headphones
2.1.1 Recharging the device
The integrated battery can be charged directly in device. Connect the
supplied power adapter or the 12 V car charger to the recharge port on
the device. The battery charge level is shown on the display. A full
recharge of the battery will take about 1.5 hours.
3)
2)
1)

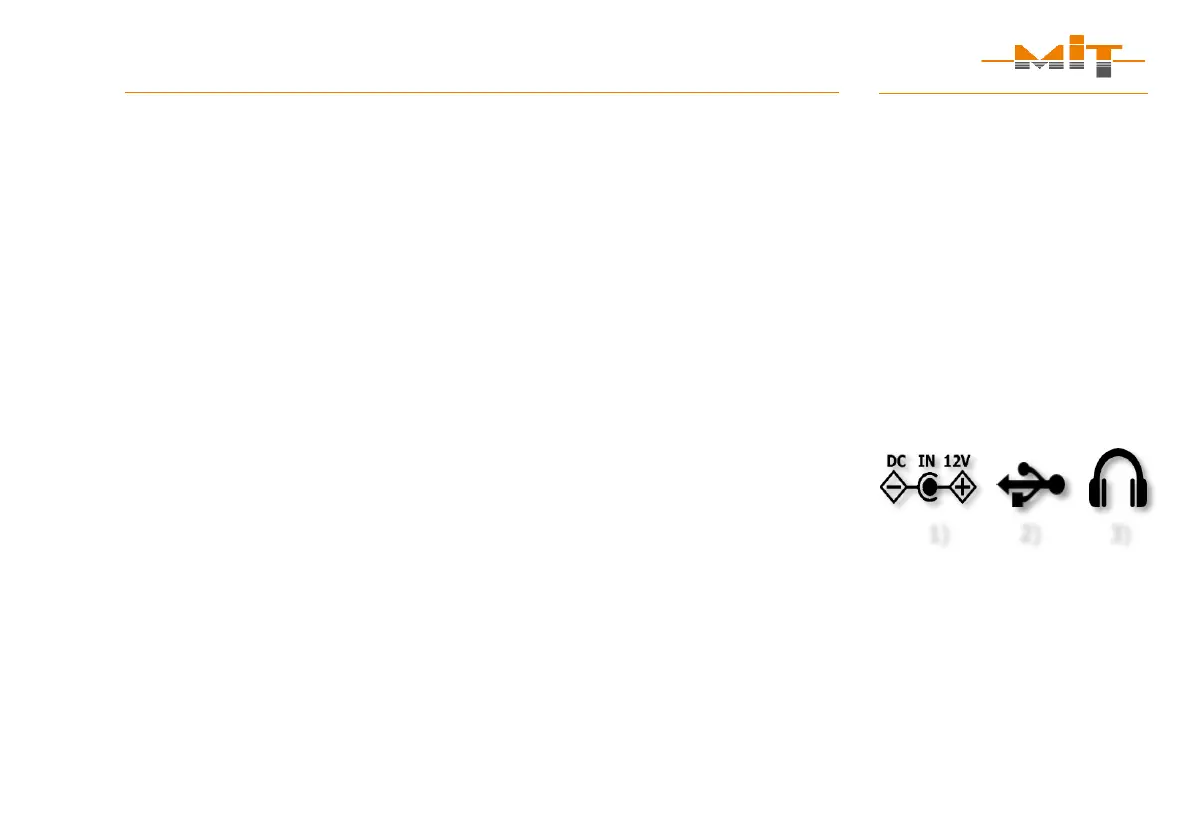

Fig. 10 Interfaces
