3.2.2 Select reflectors
The correct selection of the reflector used is important because it
influences the calculation of the result. A list of the calibrated reflectors
is available to the user.
Since each separate construction project has its specific reflectors
installed, the relevant reflector types can be selected or deselected
(example s. Fig. 24):
 Switch to row “Reflector”
 Open reflector list with the  key
 Navigate to specific reflector using the  and  keys
 Select or deselect reflector with  key
 Switch to the measurement menu with 
In measurement menu, the reflector to be measured is then quickly
selected using the keys  and .
3.2.3 Automatic circular plate recognition
The measuring device is offering an automatic circular plate
recognition function. If “Autom. Refl.” is activated, an extended
analysis of the measurement signal will be performed at the end of the

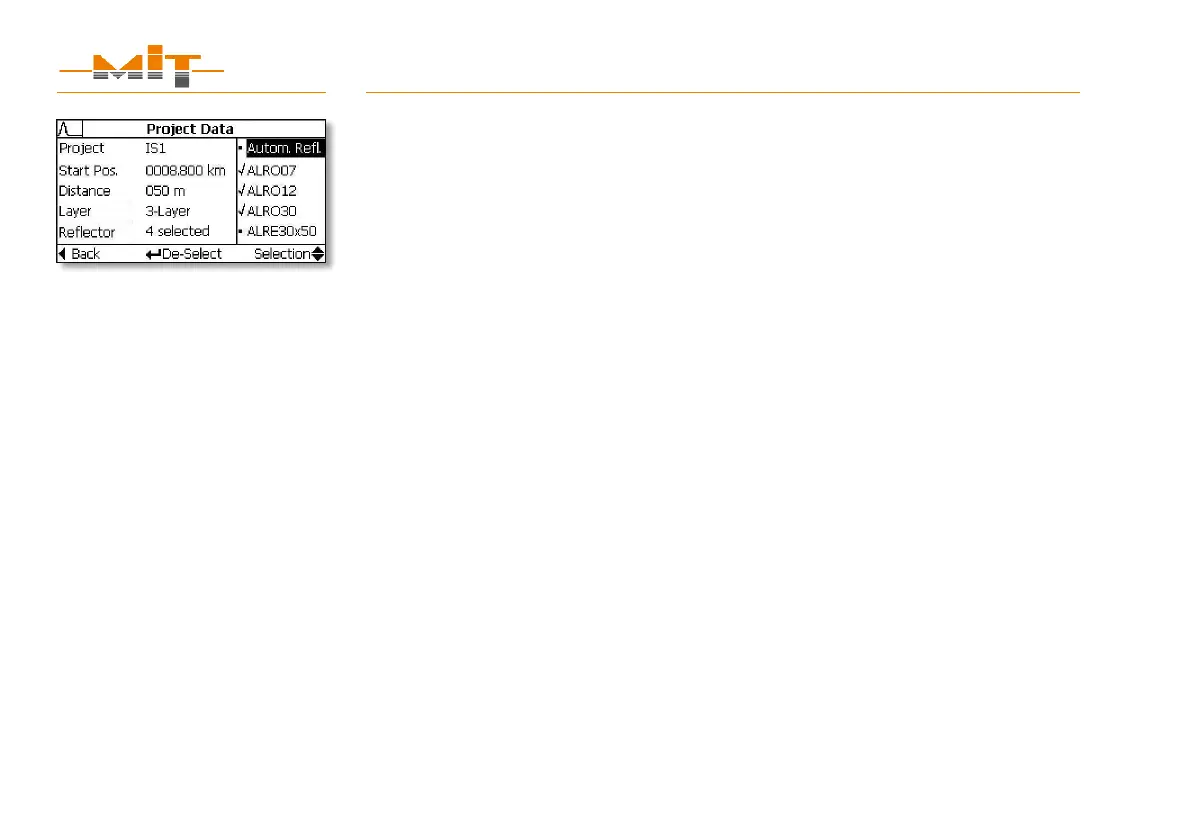

Fig. 24 Select reflectors
Automatic circular plate
recognition:
1. Select reflector “Autom.
Refl.”
2. Search reflector and
measure
3. Automatic recognition of
MIT circular plates:
 AL RO 07
 AL RO 12
 AL RO 30
 ST RO 12
 ST RO 30
4. Calculation of layer
thickness
