MiTAC 8575 - Touch-Pad; Daughter Board

99
8575
8575
N/B Maintenance
N/B Maintenance

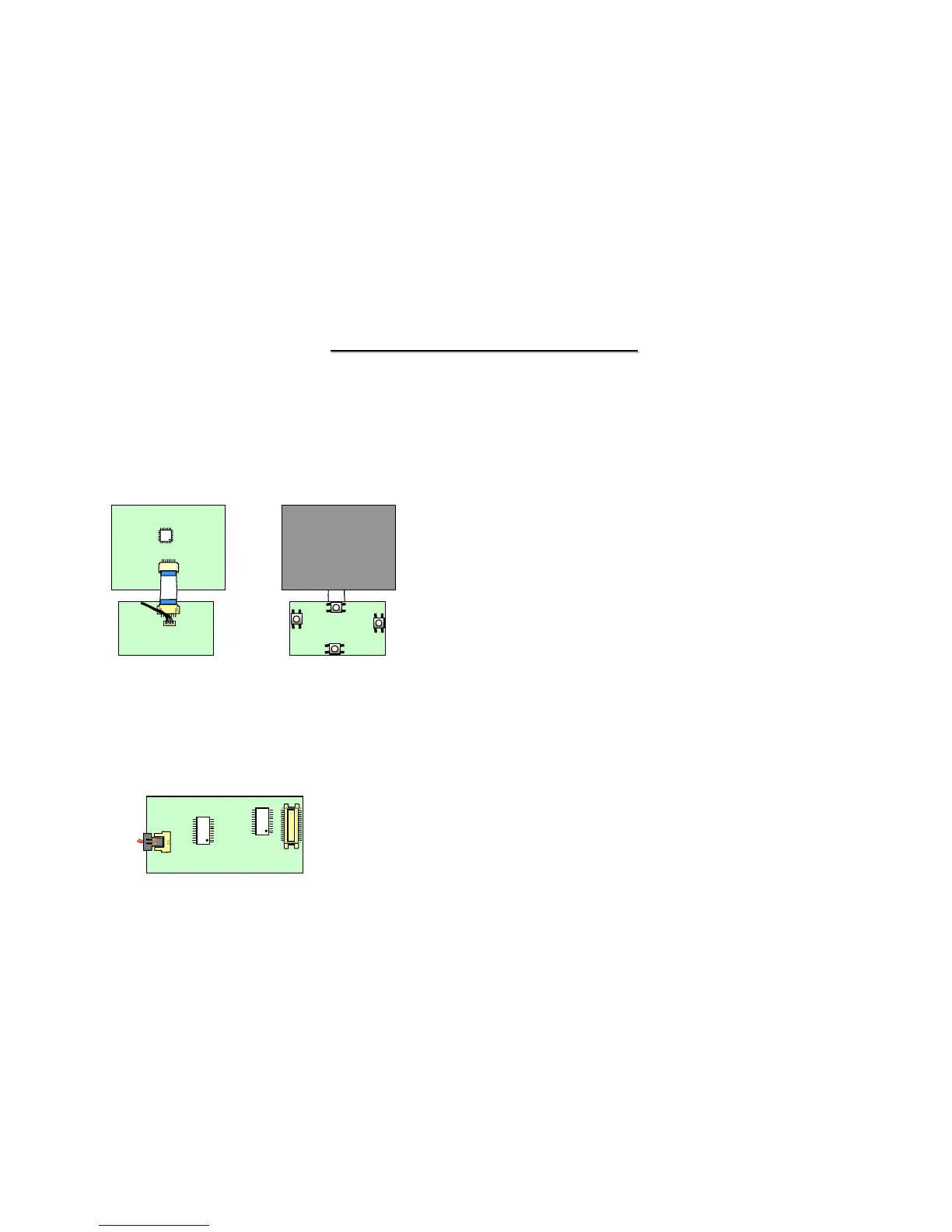

3. Definition & Location of Connectors / Switches
3.4 Touch-pad – A,B
 J501 : Touch-pad Board to Touch-pad Connector
 J502 : Touch-pad Board to Main Board Connector
 SW1 : Scroll Up Button Switch
 SW2 : Left Button Switch
 SW3 : Right Button Switch
 SW4 : Scroll Down Button Switch
J501
J502
SW2
SW4
SW1
SW3
JP1
JP3
3.5 Daughter Board -A
 JP1 : MDC Jump Wire Connector
 JP3 : MDC/LAN Transfer Board to M/B Connector
