3. Definition & Location of Connectors / Switches

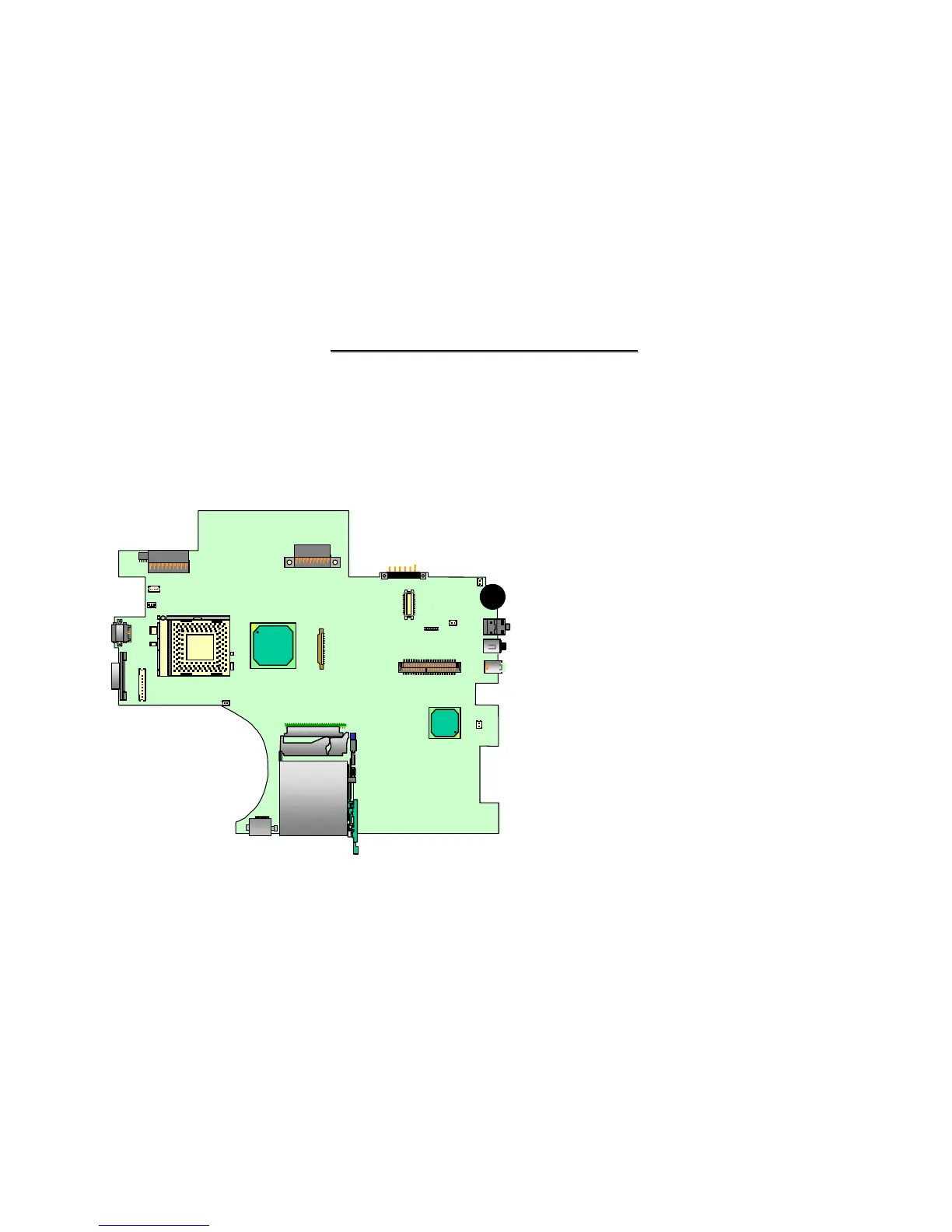

3.1 Mother Board – A-1
 J1 : Modem Connector (RJ11)
 J2 : External VGA Connector
 J3 : LCD Connector
 J4 : D/D Connector
 J5 : MDC Jump Wire Connector
 J6 : Easy Start Buttons Connector
 J7 : MISC Connector
 J8 : Fan Connector
 J9 : LAN Connector (RJ45)
 J11 : PC Card Socket
 J12 : Secondary IDE Connector
 J13 : Internal Keyboard Connector
 J14 : Battery Connector
J509
J9
J19
J21
J14
J12
J4
J7
J6
J5
J13
J3
J2
J8
VR1
J24
J28
J27
J20
J25
J23
J1
J18
J11
