N/B Maintenance
N/B Maintenance
3. Definition & Location of Connectors / Switches

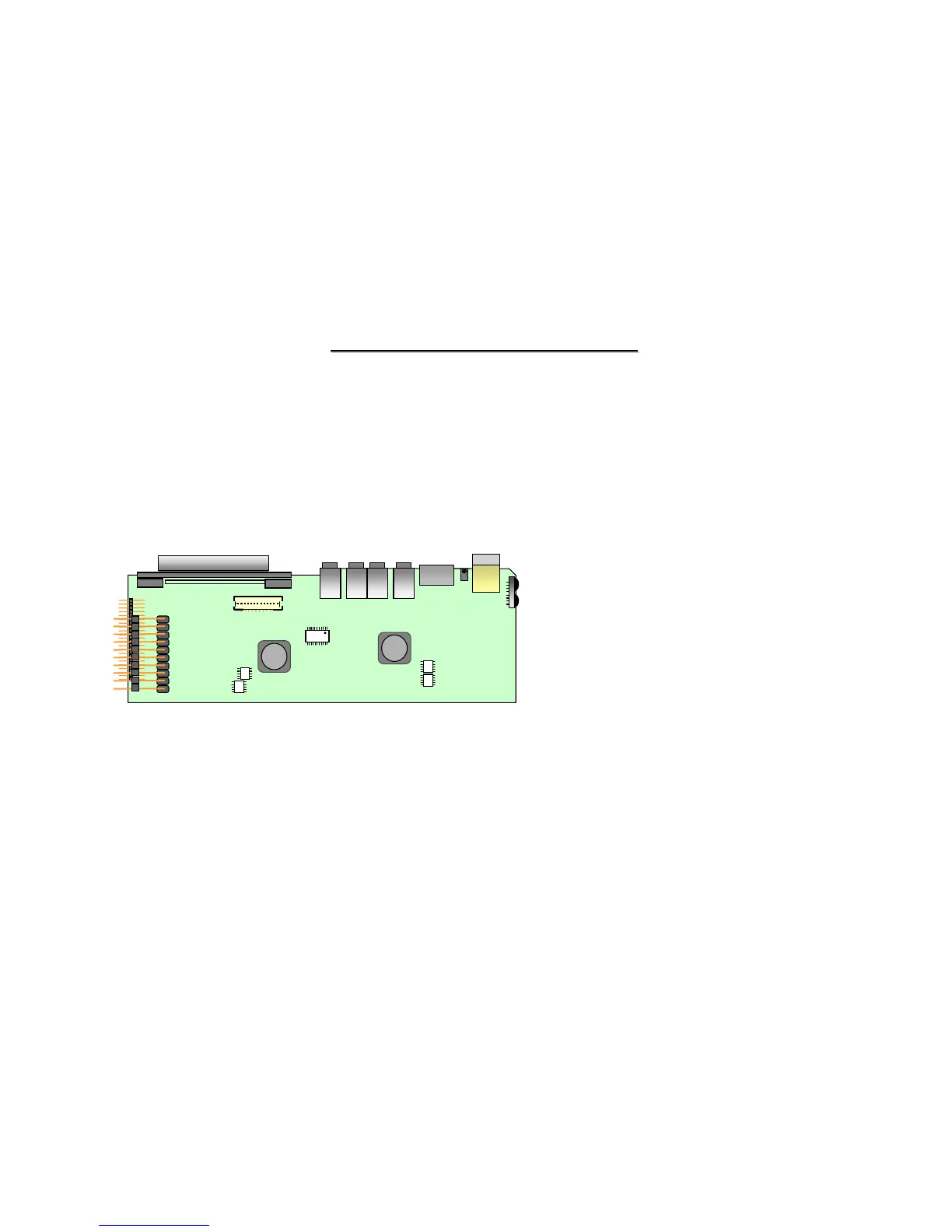

3.2 DC Power Board - A
 J1 : TV Out Jack
 J2 : Power Jack (AC adapter)
 J3 : Parallel Port Connector
 J4 : USB Port Connector
 J5 : USB Port Connector
 J6 : Inverter Board Connector
 J7 : USB Port Connector
 J8 : USB Port Connector
 PJ1 : D/D Connector
 PJ2 : MISC Connector
 SW1 : Cover Switch
J3
J1
PJ2
PJ1
J6
J5 J7 J4 J8
J2
SW1
