N/B Maintenance
N/B Maintenance
3. Definition & Location of Connectors / Switches

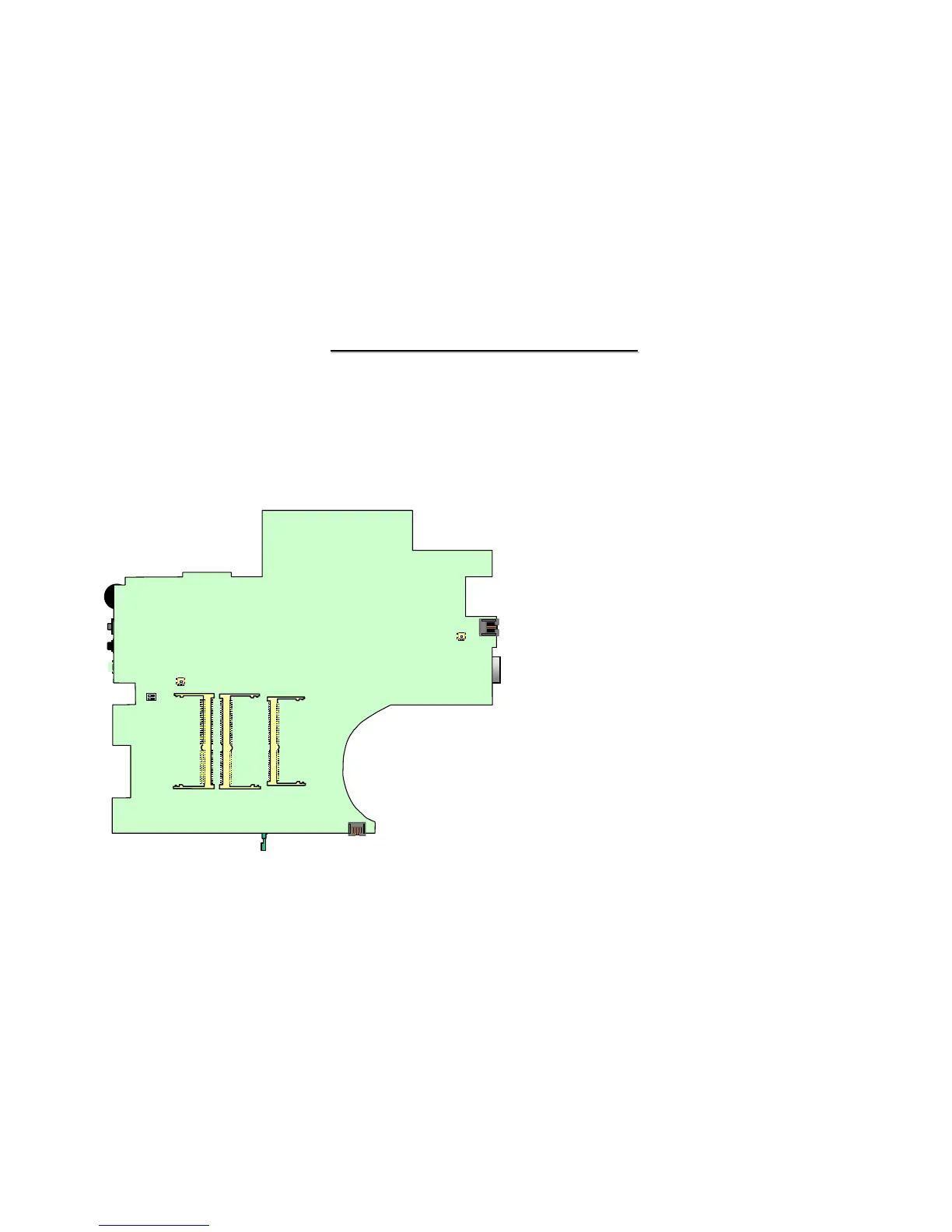

3.1 Mother Board – B
U3U5U6
?
J506 J505
J509
ON
2
1
SW503
J503
J508
 J503 : Fan Connector
 J505 : 200-pin expansion DDR SDRAM Socket
 J506 : 200-pin expansion DDR SDRAM Socket
 J508 : CMOS Battery Connector
 J509 : Mini PCI Socket
 SW503 : Country Selection for Keyboard
