MiTAC 8575 - Maintenance Diagnostics

133
8575
8575
N/B Maintenance
N/B Maintenance

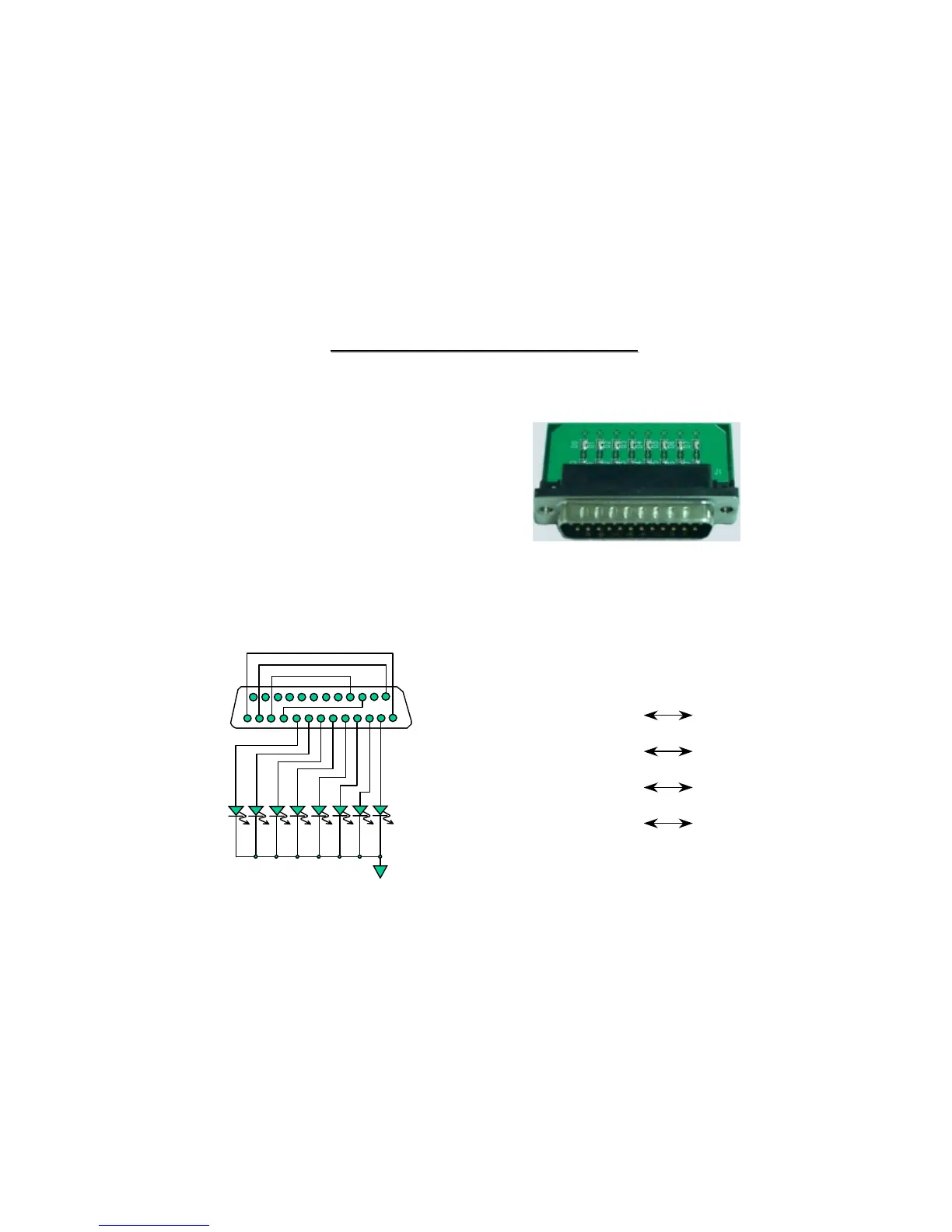

7.3 Maintenance Diagnostics
7.3.1 Diagnostic Tools :
 LED * 8
 PIO CONNECTOR * 1
PIN1 : STROBE PIN 13 : SLCT
PIN10: ACK# PIN 16 : INT#
PIN11: BUSY PIN 17 : SELIN#
PIN12: PTERR PIN 14 : AUTOFD#
PIN{9:2}: PD{7:0}
7.3.2 Circuit:
PIO
Connector
LED
1
1
13
13
14
14
25
25
P/N:411904800001
Description: PWA; PWA-378Port Debug BD
Note: Order it from MIC/TSSC
OR
