4. Definition & Location of Major Components

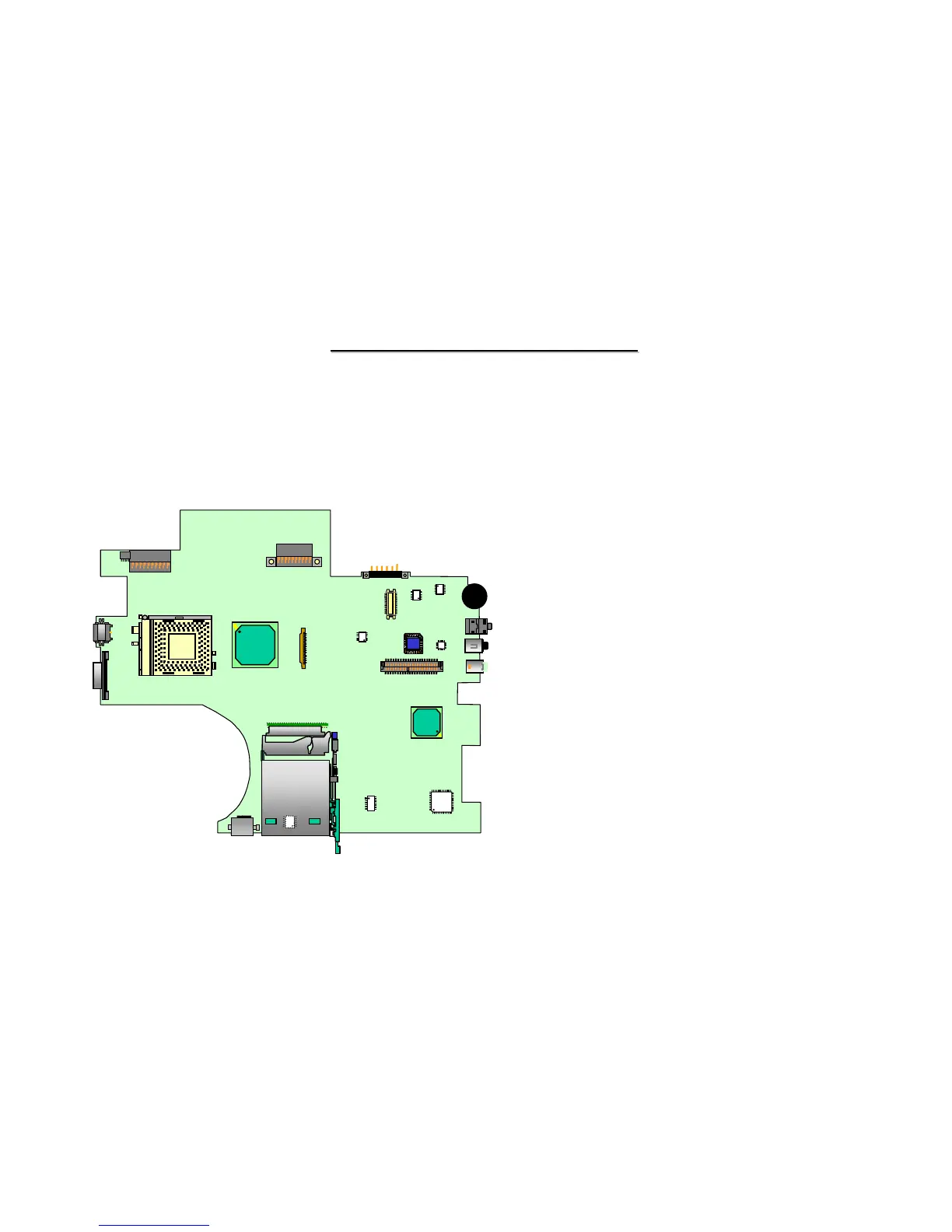

4.1 Mother Board - A
 U1 : Intel Pentium 4 Processor mPGA478 Socket
 U3 : LF-H80P LAN Buffer
 U4 : SiS650 IGUI Host/Memory Controller
 U5 : ISC1893Y LAN Controller
 U6 : PCI1410GGU PCMCIA Controller
 U9 : ICS93722 Clock Buffer
 U10 : Flash ROM
 U11 : SN74CBTD3384 Level Shift
 U14 : SiS961 MuTIOL Media I/O Controller
 U15 : ALC201 Audio CODEC
 U16 : TPA0202 Audio Amplifier
 U18 : uPD72872 IEEE 1394 Controller
 PU10 : CM8500 1.25V Generator
J509
U1
U4
U15
U14
U18
U9
U3
U5
U6
U11
U16
PU10
U10
