4. Definition & Location of Major Components

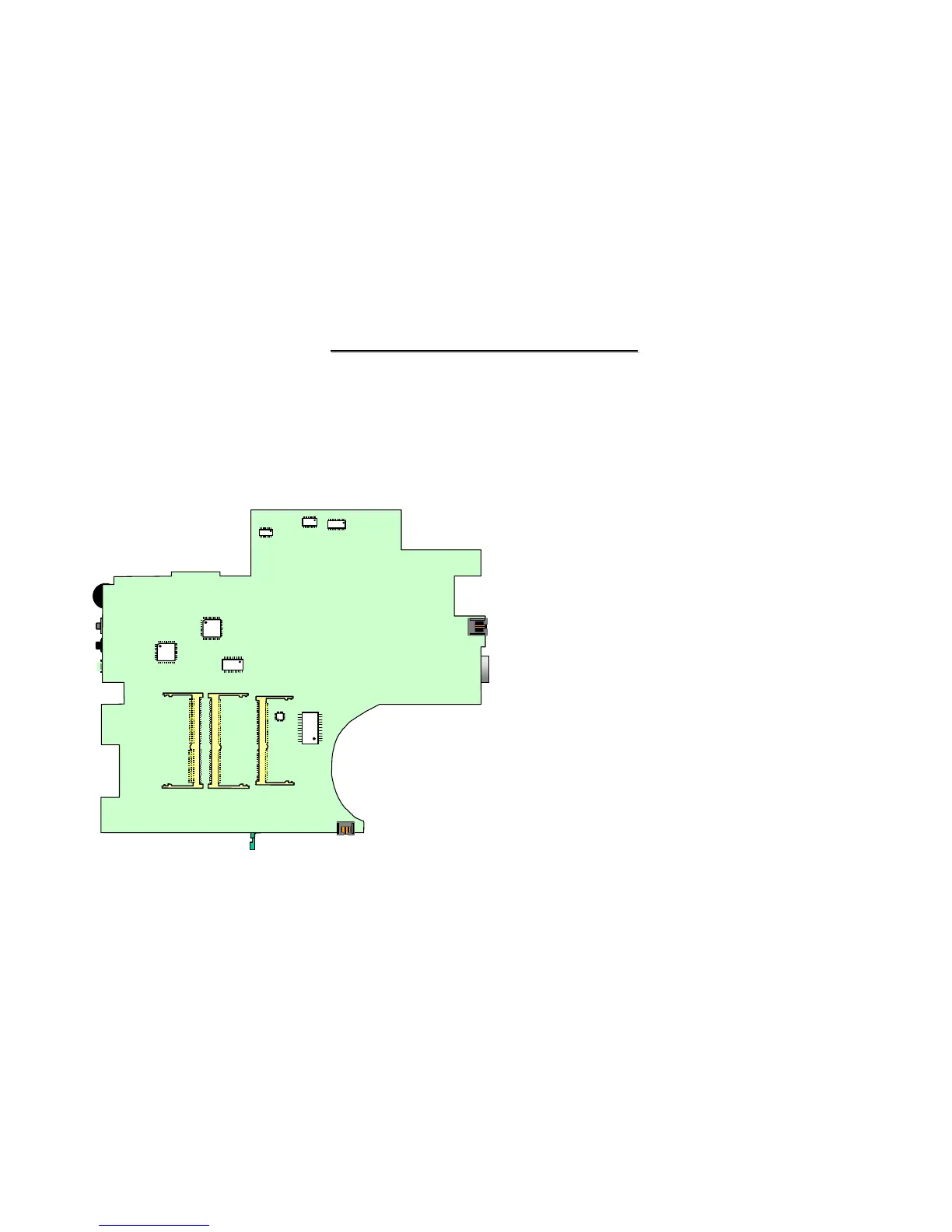

4.1 Mother Board - B
 U504 : SiS301LV/Chrontel CH7019
 U505 : TPS2211 PC Card Slot Power Switch
 U508 : ICS952001 Clock Generator
 U509 : H8/F3437 Micro Controller
 U511 : PC87393 Super I/O
 PU508 : LTC1709EG-7 CPU Power Generator
 PU510 : LTC3707 1.8V/2.5V Generator
 PU511 : TL594C PWM
U3U5U6
?
U504
U511
U509
U508
U505
PU511
PU510
PU508
