Mitel 5324 User Guide Supplement

5304 IP Phone
Mitel
®
5000 CP Phone User Guide Supplement for v3.2, September 2009 Page 5
5304 IP Phone
The Mitel 5304 IP phone is a compact, feature-rich phone that provides voice communication
over an IP network. The 5304 has a back-lit liquid crystal display (LCD), display-assisted feature
access, and a Ring/Message Indicator. In addition, for one-touch feature access, the 5304 has
nine programmable buttons. An image of the 5304 IP phone is provided below.
The 5304 IP phone functions similar to the 5212 IP phone on the 5000 CP system, but includes
the following functional differences:
• The 5304 IP phone requires 5000 CP software v3.2 or later. It is not backward-compatible
with previous 5000 CP software versions.
• The 5304 IP phone does not have an external microphone and therefore does not support
handsfree operation.
• The 5304 IP phone does not have a dedicated headset jack and therefore does not fully
support headset operation.
• The 5304 IP phone’s dialpad is located under the handset and therefore does not support
on-hook dialing.
In addition the 5304 does not support the following features and peripheral devices:
• OHVA
• Ringer cadence/pitch adjust
• Module operation (Line Interface Module, Mitel 5310 Conference Unit, Programmable Key
Modules)
• Cordless operation (cordless module, cordless handset, cordless headset)
For installation information, refer to the Mitel 5304 IP Phone Installation Guide, part number
57009901. This document is shipped in the box with the phone.
For information and instructions for supported features, refer to the Mitel 5304 IP Phone User
Guide, part no. 550.8034.

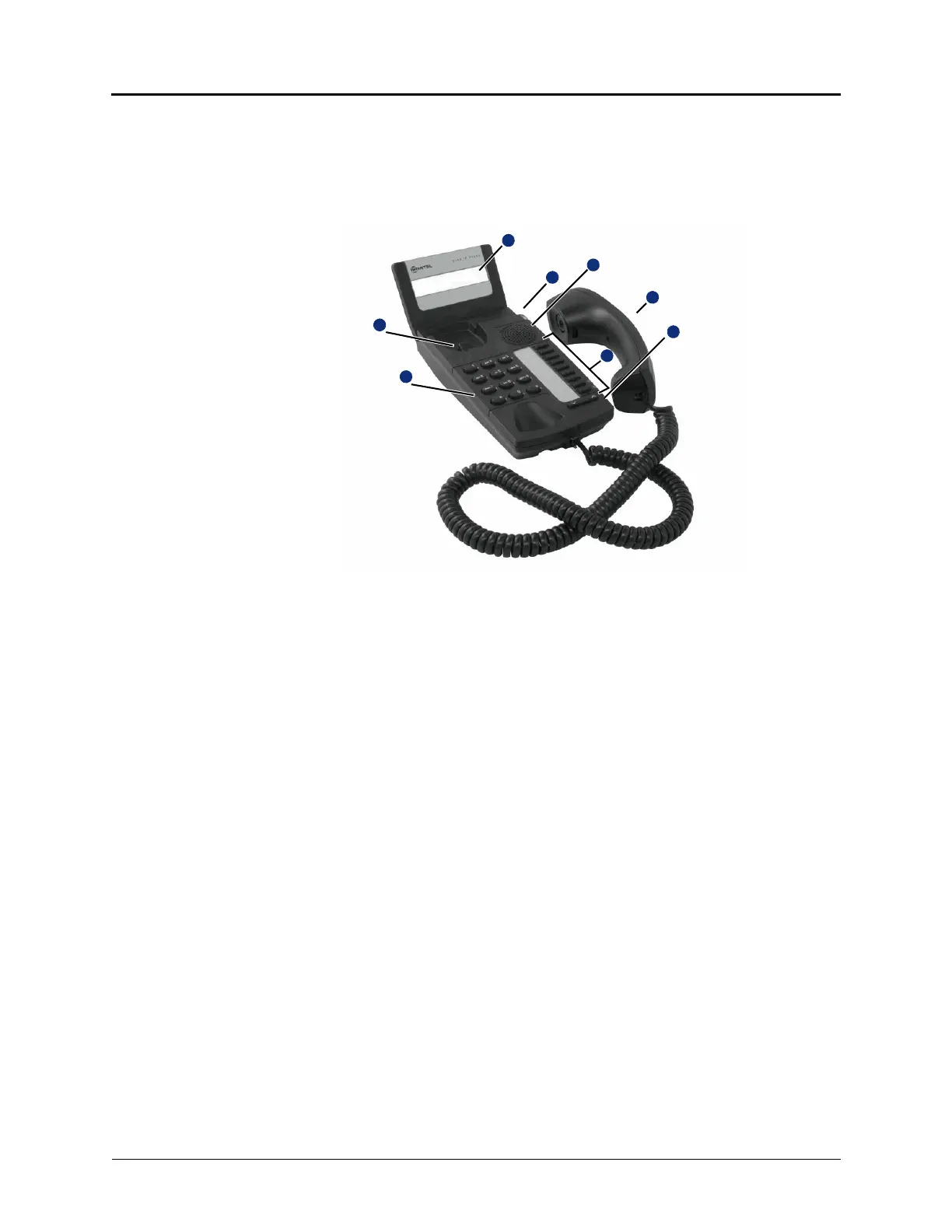

1 – Liquid Crystal Display (LCD) 5 – Programmable buttons
2 – Ring/Message Indicator 6 – Volume buttons
3 – External speaker 7 – Dialpad buttons
4 – Handset 8 – Hookswitch
1
2
3
4
5
7
6
8

Mitel 5324 Specifications

Processor and Memory

processor type	TNETV1055 (MIPS)
processor speed	125 MHz
DSP speed	165 MHz
RAM	16 MB
ROM	8 MB

Weight and Dimensions

dimensions (phone only)	9.1 in x 7.5 in x 3.5 in (23 cm x 19 cm x 9 cm)
weight (phone only)	1.65 lbs or 0.75 kg
dimensions (packaged)	9.8 in x 8.3 in x 3.9 in (25 cm x 21 cm x 10 cm)
weight (packaged)	2.49 lbs or 1.13 kg
