INSTALLING CHASSIS IN A CABINET
15 20/1531-ASP11301 Uen B5 2017-03-23
4. Align the holes in the fixing irons over the anchoring holes in the floor.
5. Tighten the two screws (H) to a torque of 80 Nm.
2.2.7.1 Anchoring the Cabinet on a Concrete Floor

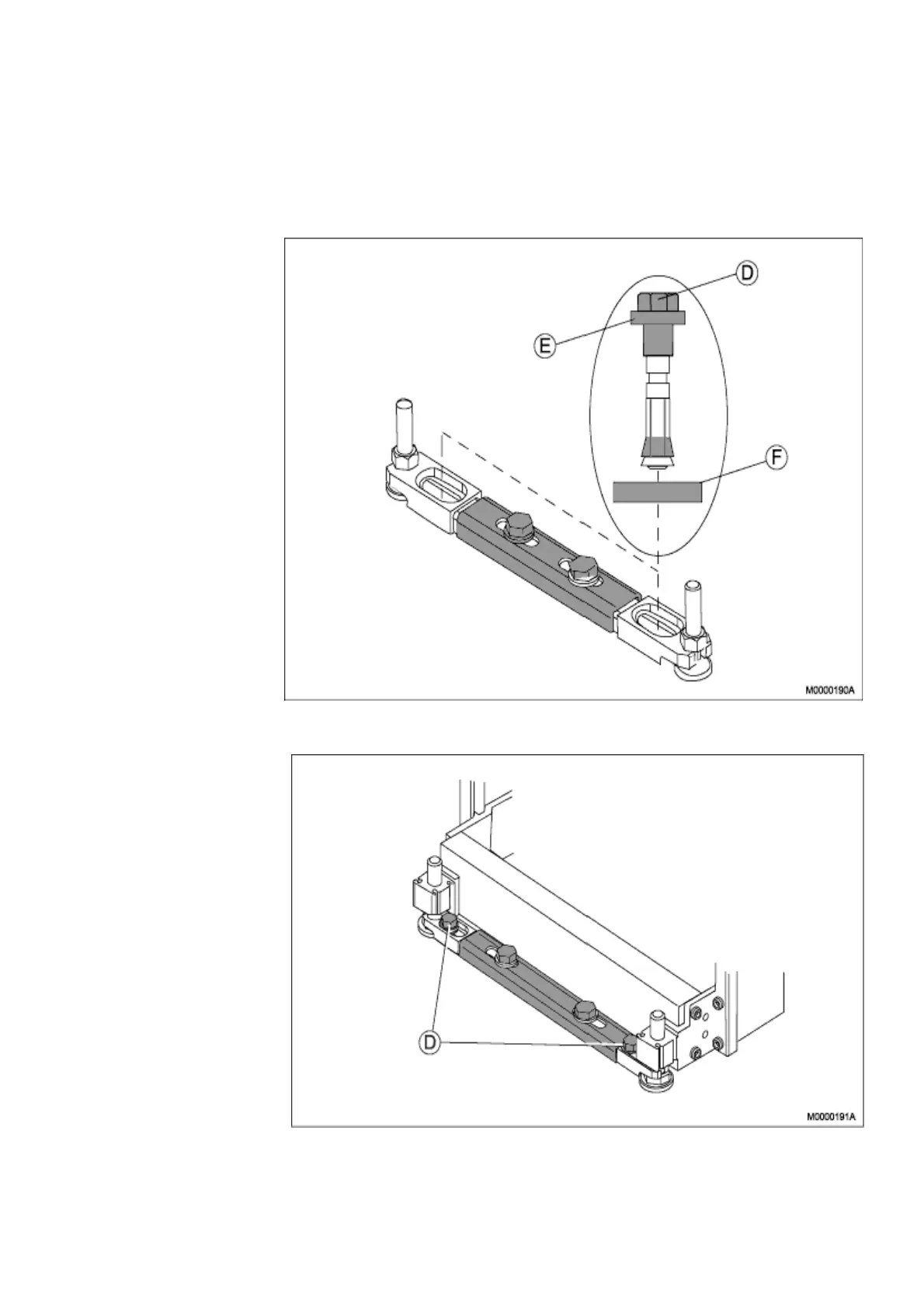

Figure 8: Installing the Expander Screw
Figure 9: Securing the Earthquake Bracing
