20/1531-ASP11301 Uen B5 2017-03-23 14
I
NSTALLING CABINET
2.2.7 INSTALLING THE CABINET WITH EARTHQUAKE BRACING
Table 4 Earthquake Set, Concrete Floor

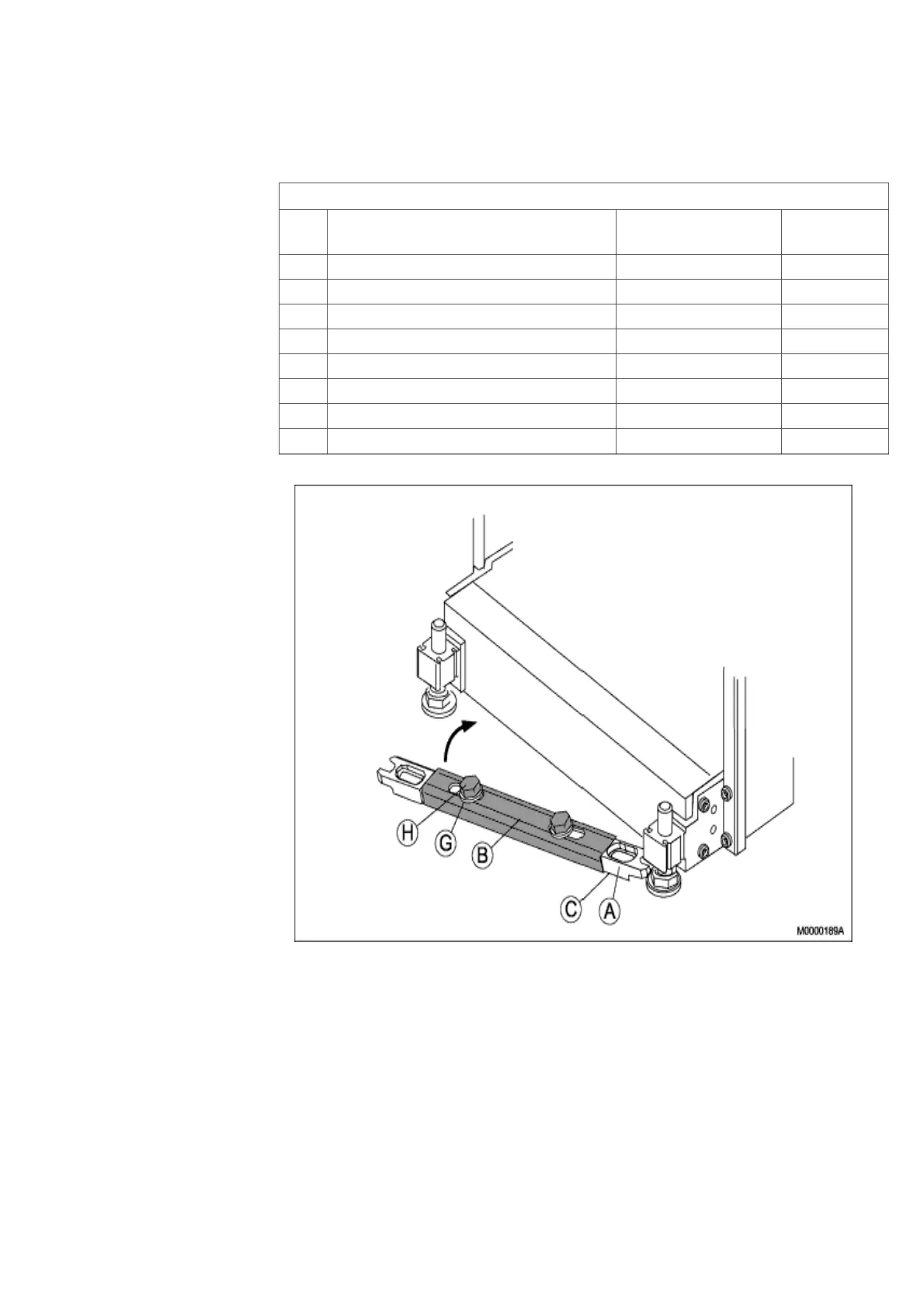

Figure 7: Installing the Earthquake Bracing
Note: The following procedure must be performed for the feet at the front and for the
feet at the back:
1. Slide the earthquake bracing under the cabinet between the feet, see Figure
7:Installing the Earthquake Bracing on page 14
2. Verify that two coasters (C) are installed under the two fixing irons (A).
3. Install the two fixing irons (A) between the feet of the cabinet with the bar (B), two
screws (H), and two washers (G).
17/BYB 501/1 (2 x SXK 118 0168/1) Earthquake Set, Concrete Floor
Pos
. Title/Function Product Number Quantity
A FIXING IRON SXA 123 0380/1 4
B BAR SXA 123 0381/1 2
C COASTER SXA 123 0382/1 4
D EXPANDER SCREW M 12/25 NSV 907 02 4
E INSULATING BUSHING SXA 106 0093/2 4
F WASHER SCA 118 210/78 4
G WASHER SCA 118 170/78 4
H SCREW M 16X25 03/SBA 186 160/0250 4
