INSTALLING CHASSIS IN A CABINET
13 20/1531-ASP11301 Uen B5 2017-03-23
2.2.6.2 Installing the Tip Protection on a Raised Floor

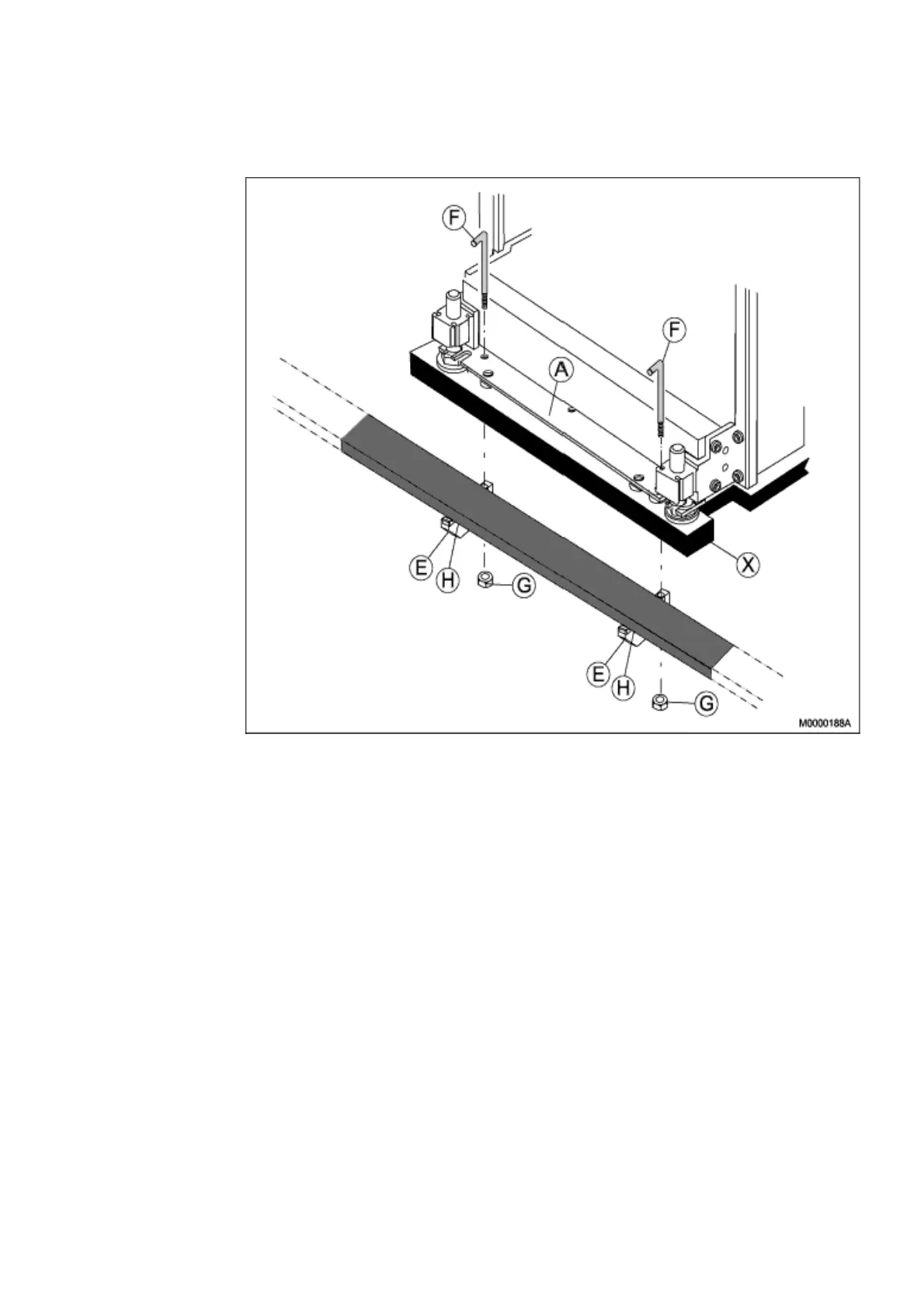

Figure 6: Installing the Tip Protection on a Raised Floor
Note: The following procedure must be performed for the feet at the front and for the
feet at the back:
1. Insert two clamps (F) through the yoke (A) and the floor (X), see Figure
6:Installing the Tip Protection on a Raised Floor on page 13
2. Secure two supports (E) with two insulated plates (H) to the secondary section
of the raised floor by using the two clamps (F) and two nuts (G).
3. Tighten the two nuts (G) from the underside.
4. Proceed to the next installation stage, see 2.2.8 Fastening the Cabinets on page
16.
