NSTALLING CABINET

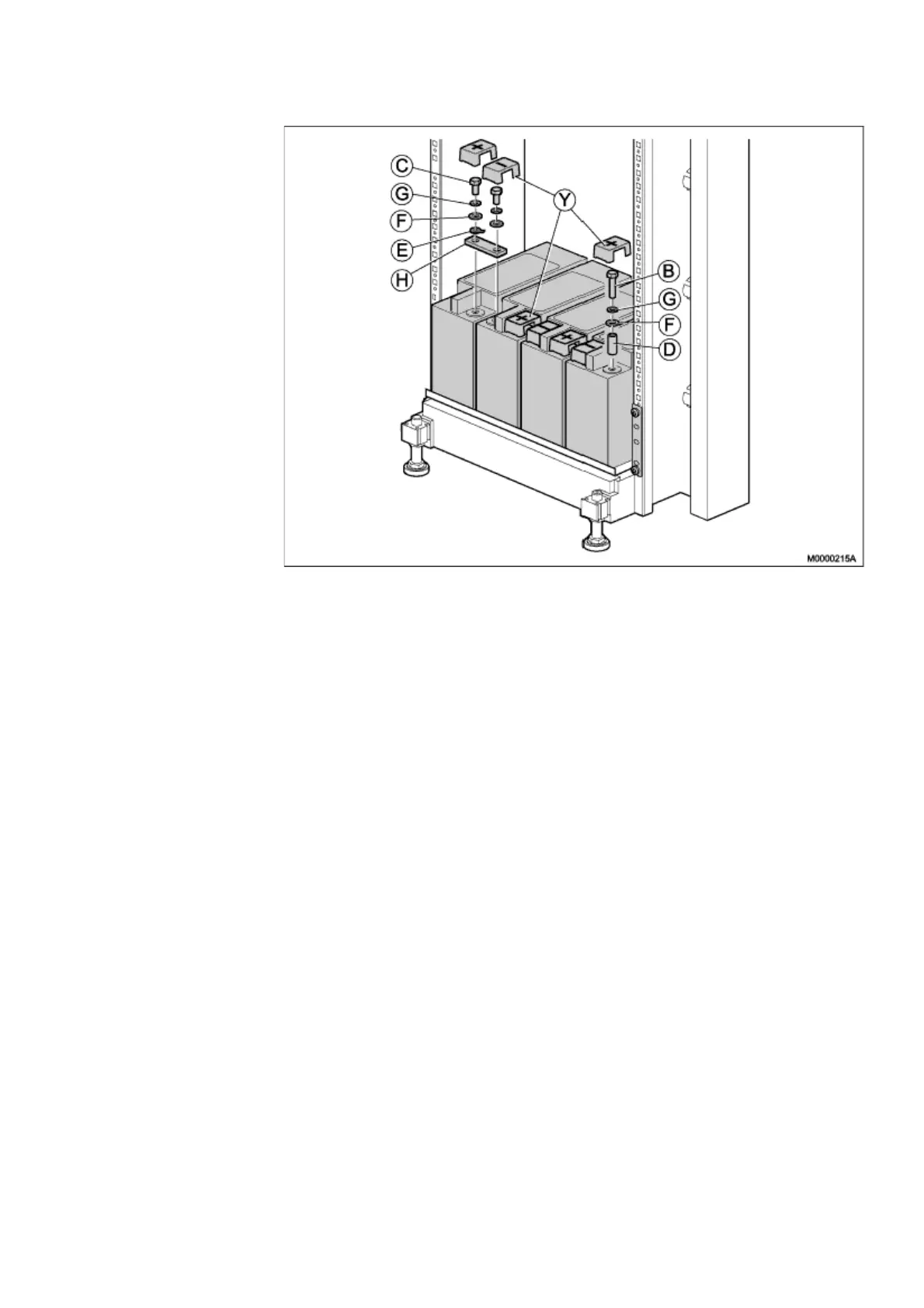

Figure 15: Installing the Batteries
Note: Before working on any equipment, be aware of the hazards involved with the
electrical circuitry and be familiar with the standard practices for preventing acci-
dents.
To mount the batteries in the battery shelf, perform the following steps:
1. Mount the spacers (K) between the battery blocks (A), see Figure 14:Battery
Block Spacer on page 21.
2. Place the safety strap through the slots in the battery shelf, see Figure 16:Battery
String Safety Strap on page 23.
3. Place the batteries on the shelf, see Figure 15:Installing the Batteries on page
22. Make sure the front side of the batteries with the contact poles and the labels
is facing the cabinet front.
4. Pull the batteries towards the shelf front edge.
5. Connect the batteries to each other by applying the connector bridge (H), plain
washer (F), spring washer (G), by using the pole screws (C) from the batteries.
6. For measuring 12, 24, and 36 V DC insert three contact washers with flat lug
terminals (E) on top of each connector bridge.
7. Tighten the six screws.
8. Apply the metal tube spacer (D), plain washer (F), spring washer (G), and 25-mm
screw (B) on the plus pole of the rightmost battery block (do not tighten).
9. Apply the metal tube spacer (D), plain washer (F), spring washer (G), and 25-mm
screw (B) on the minus pole of the leftmost battery block (do not tighten).
10. Position insulating pole covers (Y) on each of the four batteries, and press them
down.
