4 SAFETY MONITORING FUNCTIONS
4-26 Startup and Basic Configuration
(3) Dedicated output signals
A CRC of the parameter file is output to the dedicated output signals configured in the Basic Configuration screen.
The output signal width is fixed to 16 bits.
Example)
• Parameter CRC output number: The start number = 16, the end number = 31
• CRC value: DB17 (Hexadecimal)
In the above case, the signals are output as follows:
出力16出力31
(D) (B) (1) (7)
：ON ：OFF

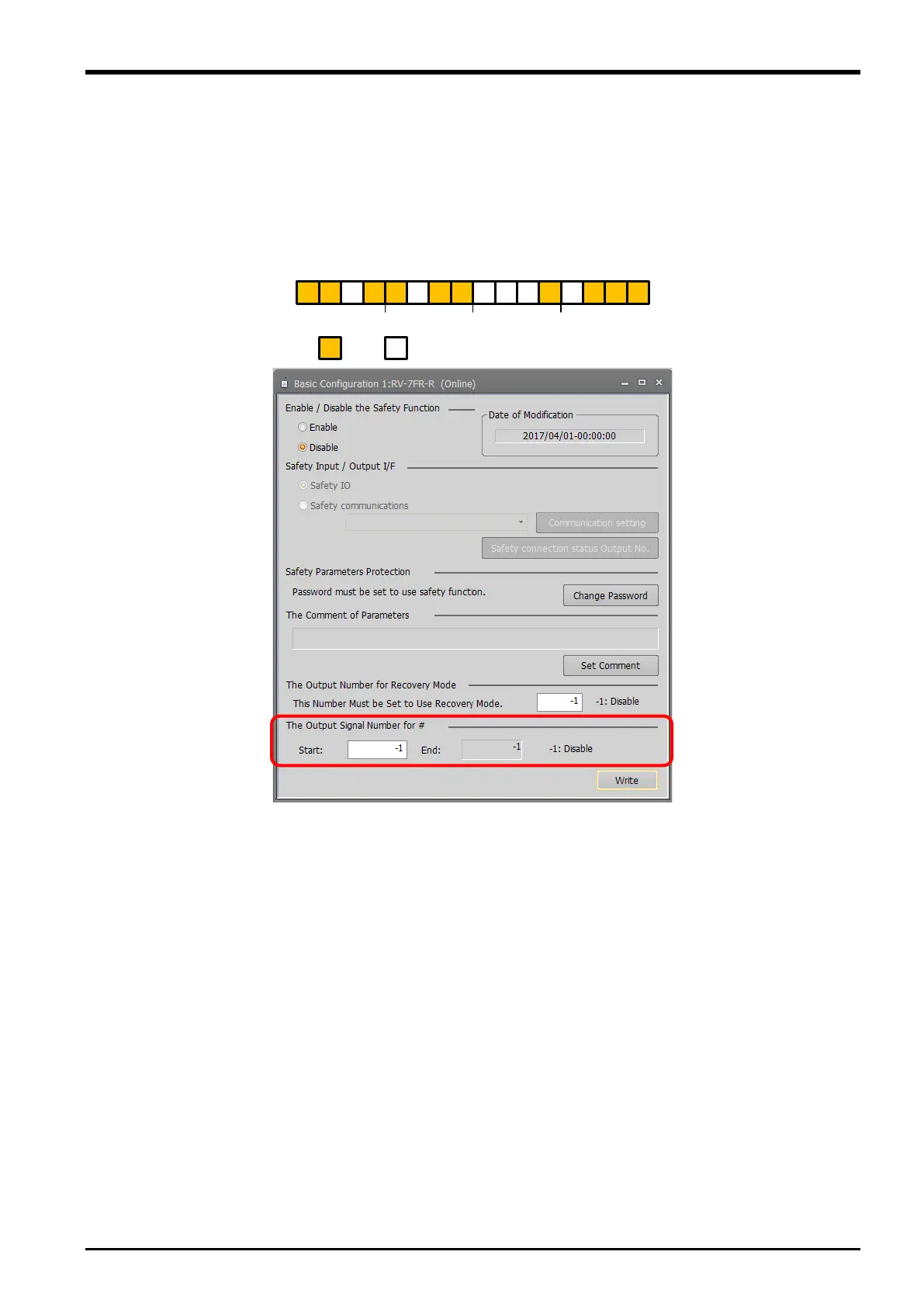

Fig. 4-9: Parameter file CRC output number
