4 SAFETY MONITORING FUNCTIONS
4-62 Safety Monitoring Functions
(4) Operation check
The following shows how to check that the monitoring speed is configured correctly.
(a) How to check the SLS monitoring state
From Workspace, open the Operation Check screen by selecting [Online] -> [Parameter] -> [Safety
Parameter] -> [Safety option] -> [SLS] -> [Operation Check] and check the SLS monitoring state and speed
measurement values.
The measurement value fields hold the maximum values of speed feedback for individual monitoring
positions. The reset button clears the maximum values.

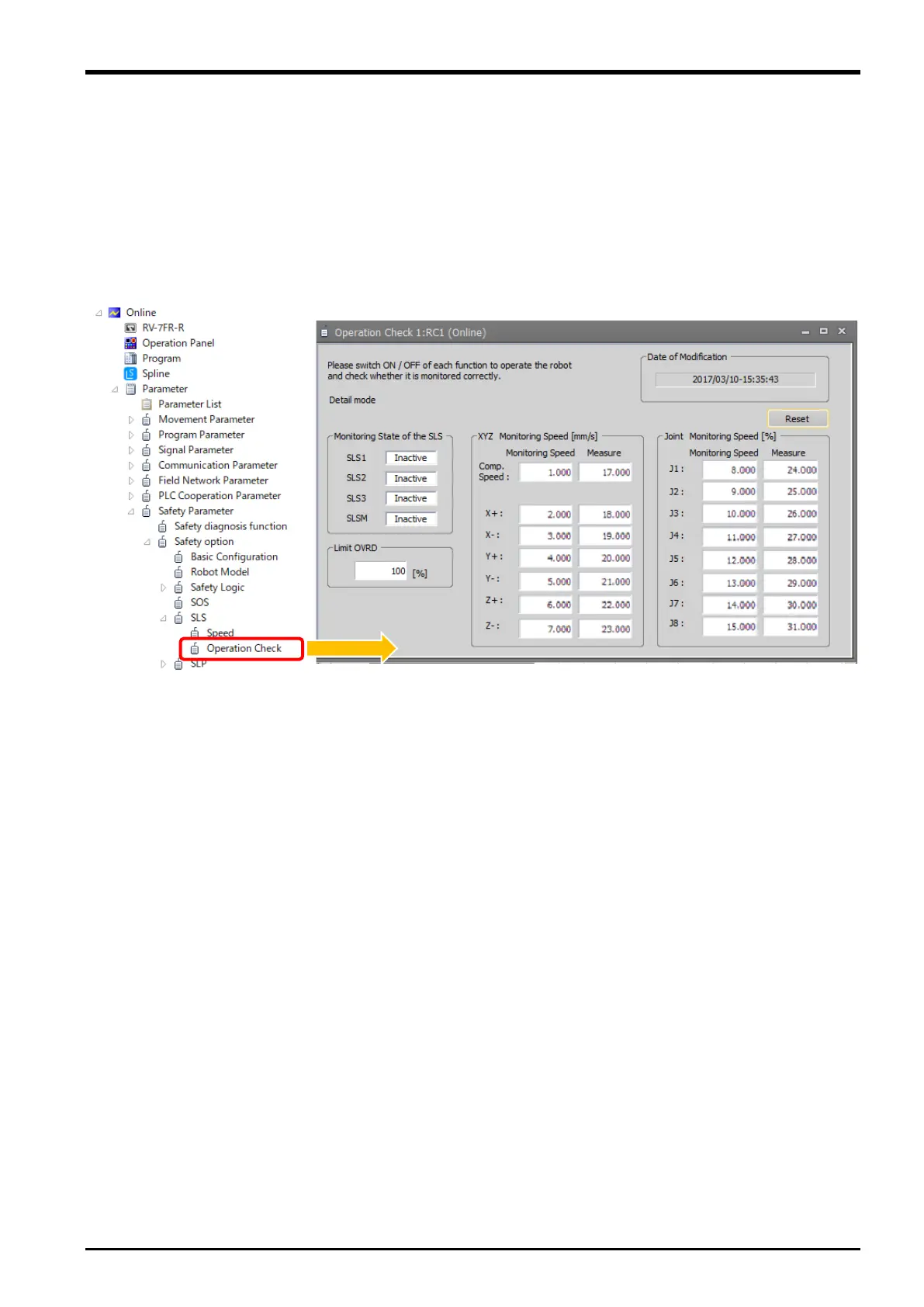

Fig. 4-51: How to check the SLS monitoring state
