Appendix Outline dimension drawings
FR-E700SC EC A - 5
A.3 Outline dimension drawings
A.3.1 FR-E720S-008SC to 030SC
I002144E

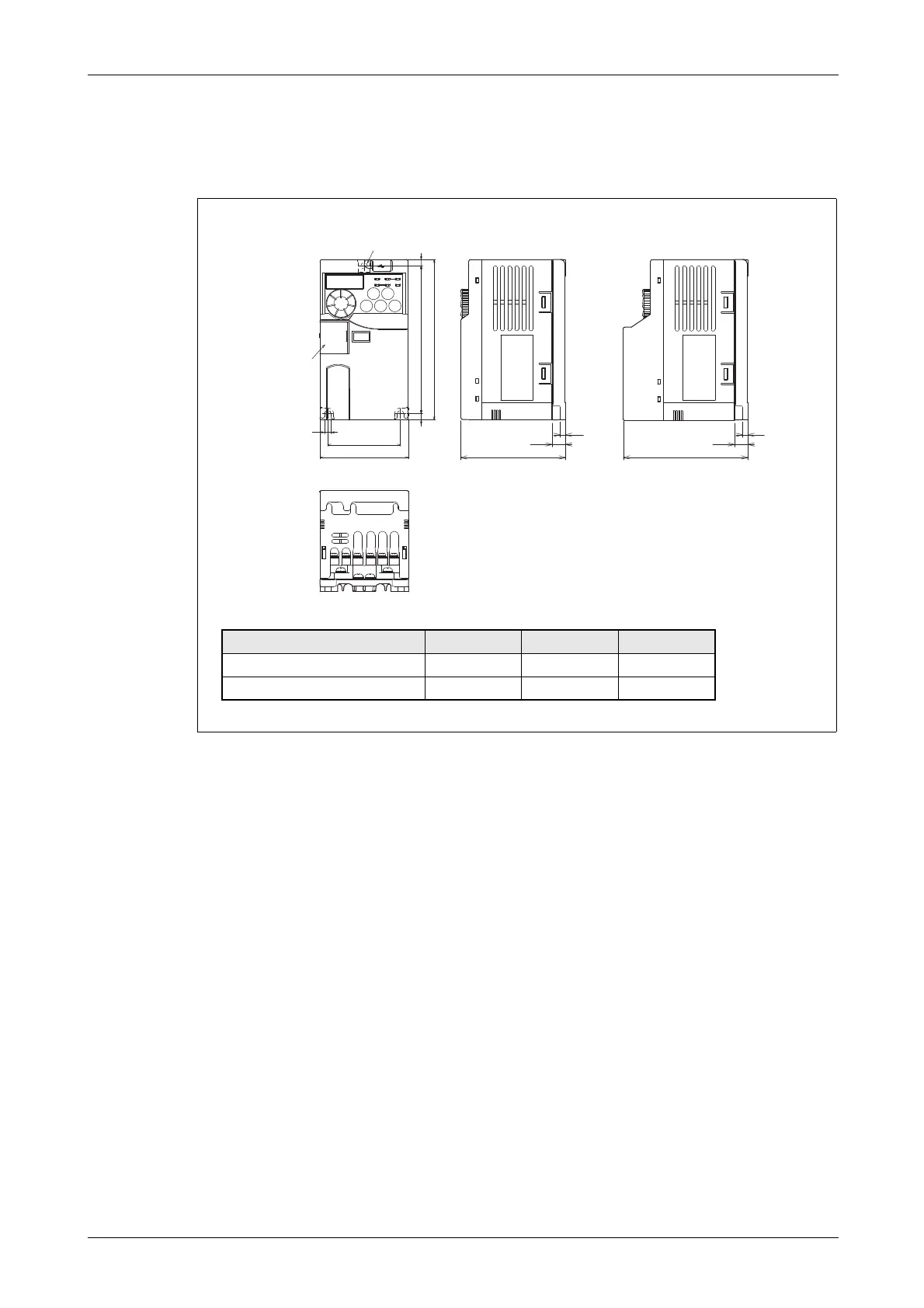

Fig. A-1: Dimensions FR-E720S-008SC to 030SC
4
D
D1
4
D2
D1
5
68
56
5
118
5
128

φ
5
Inverter Type
D D1 D2
FR-E720S-008SC, 015SC 86.5 10 108.1
FR-E720S-030SC 148.5 42 170.1
All dimensions in mm
When used with the plug-in option

When the FR-A7NC-Ekit-SC-E is
mounted, a terminal block protrudes
making the depth approx. 2mm
greater.
Capacity
plate
