13 DATABASE FUNCTION
13 DATABASE FUNCTION

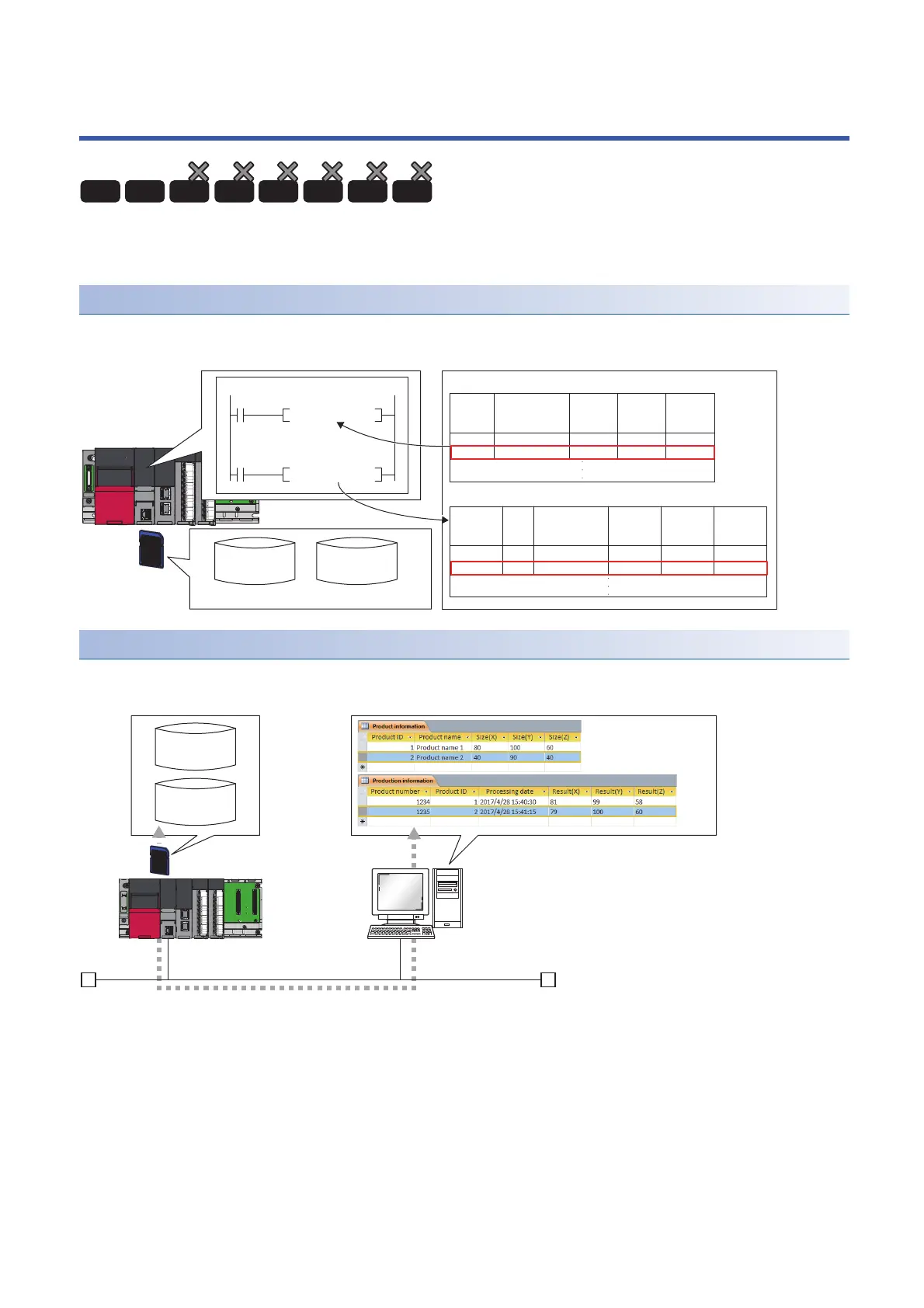

This function manages the data such as product information or production information as a database in an SD memory card of
the CPU module.
Database access instruction
The database access instructions allow the databases of product information and production information to be created, input,
updated, edited, searched, transacted, and rolled back.
CPU module database access (from external device) function
The CPU module database access function enables operations such as table creation and record operation/search of the
database built in an SD memory card inserted into the CPU module.
• This function cannot be used in the R00CPU, R01CPU, and R02CPU.
