MELSEC-Q
5 PARAMETER SETTINGS
5.2 Network Settings
These parameters are used to configure the MELSECNET/H network.
Set the start I/O No., network No., total stations, group No. and mode for each of the
module model names set in the number of modules settings.
5.2.1 Starting I/O No.
Set the start I/O No. to which the module is mounted in 16-point units in hexadecimal
for each applicable network module.
For example, set 130 when the network module is mounted onto X/Y130 to 14F.
(1) Valid setting range
0
H
to 0FE0
H
(The I/O point range of the CPU module)
(2) Precaution
Unlike the setting method for the AnUCPU (only first two digits of the
3-digits are used for setting), all three digits are used for setting.
5.2.2 Network No.
Set the network number to which the applicable network module is connected.
(1) Setting range
1 to 239
(2) Precautions
(a) For standby stations, set the network numbers that are differently from
regular stations.
(b) The same network number can be set for normal stations.

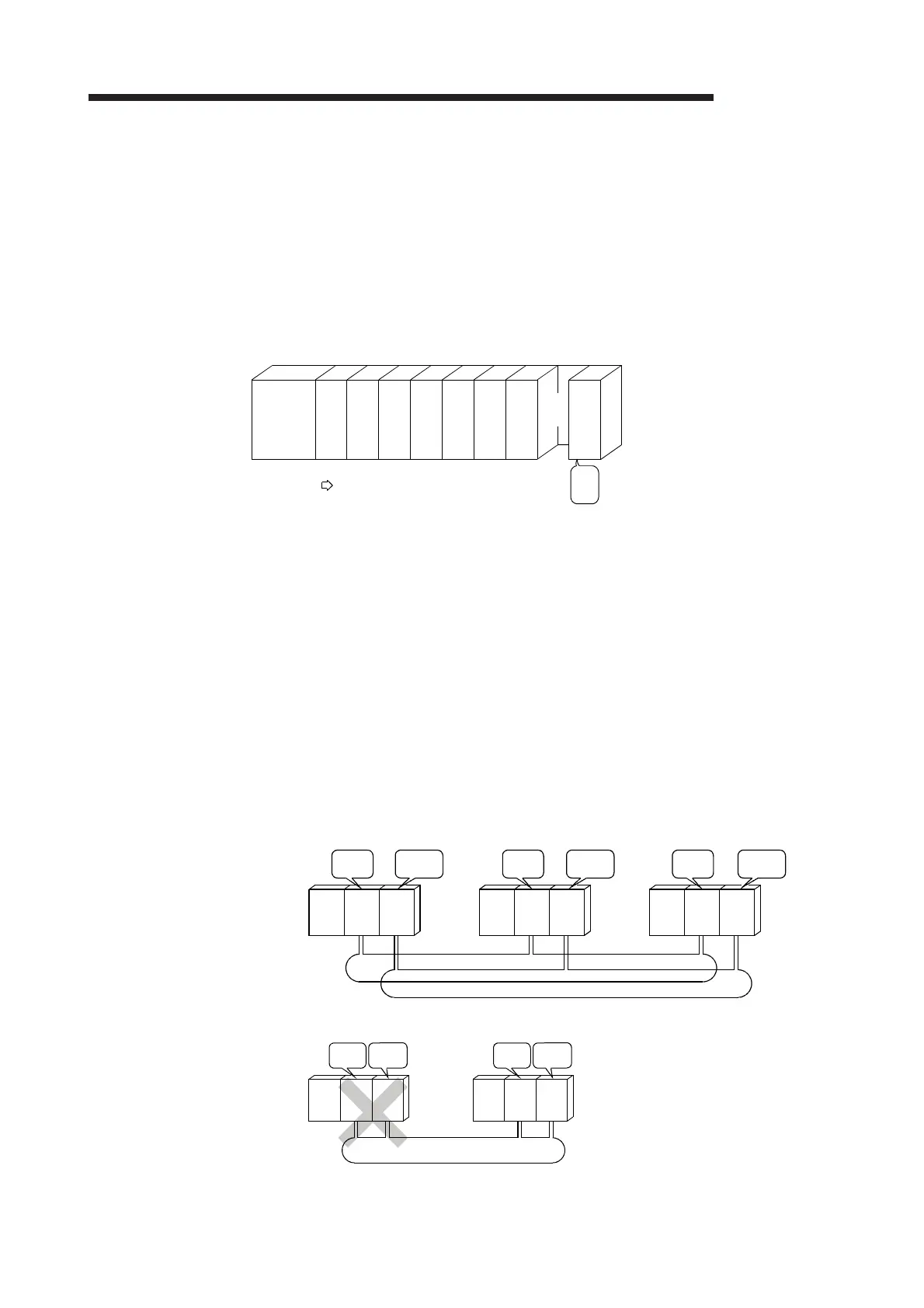

Q61P QCPU QX42 QX42 QX41 QY41 QY41 QJ71QY41
64 pts 64 pts 32 pts 32 pts 32 pts 32 pts 32 pts48 pts
Empty
X/Y
00
H
to
3F
H
40
H
to
7F
H
80
H
to
9F
H
A0
H
to
BF
H
C0
H
to
DF
H
E0
H
to
FF
H
100
H
to
12F
H
130
H
to
14F
H
Regular
station
CPU QJ71 QJ71
1M
P
12M
P
1
CPU QJ71 QJ71
1N
S22NS2
CPU QJ71 QJ71
1N
S32NS3
Network No. 1 (regular)
Network No. 2 (standby)
Regular
station
Regular
station
Standby
station
Standby
station
Standby
station
CPU QJ71 QJ71
1M
P
11M
P
2 1N
S
31N
S
4
Network No. 1
Control
station
Control
station
Normal
station
Normal
station
